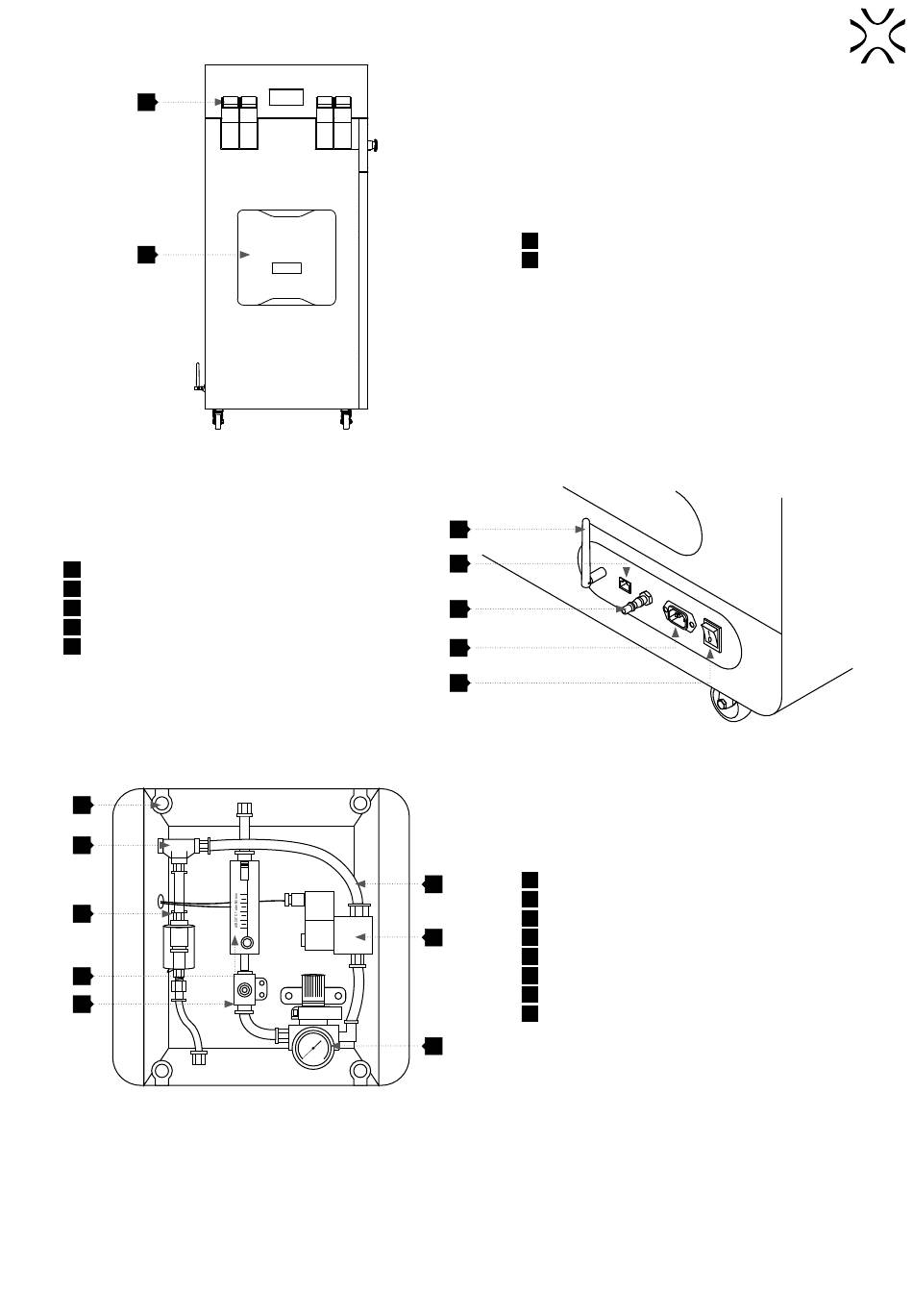

Fig. 3.3 View of the left side of the printer.
21 Wi-Fi Antena
22 Ethernet port
23 Gas inlet nipple (quick connect fitting)
24 Power socket
25 Power switch (ON/OFF)
26
27
28
29
30
Fig. 3.5 View of the inert gas control system.
10
8
6
4
2
19 Lid hinges
20 Inert gas control system
21
22
23
24
25
Fig. 3.4 View of the back of the printer.
26 Magnetic fasteners
33
27 T-type push-in fitting with a pressure sensor
28 Filter air dehydrator
29 Rotamerer
32
30 Throttle check valve
31 Pressure reducer regulator with built-in manometer
32 Pneumatic solendoid valve
33 Pneumatic tubing
