SINTERIT LISA X Original User Manual page 68

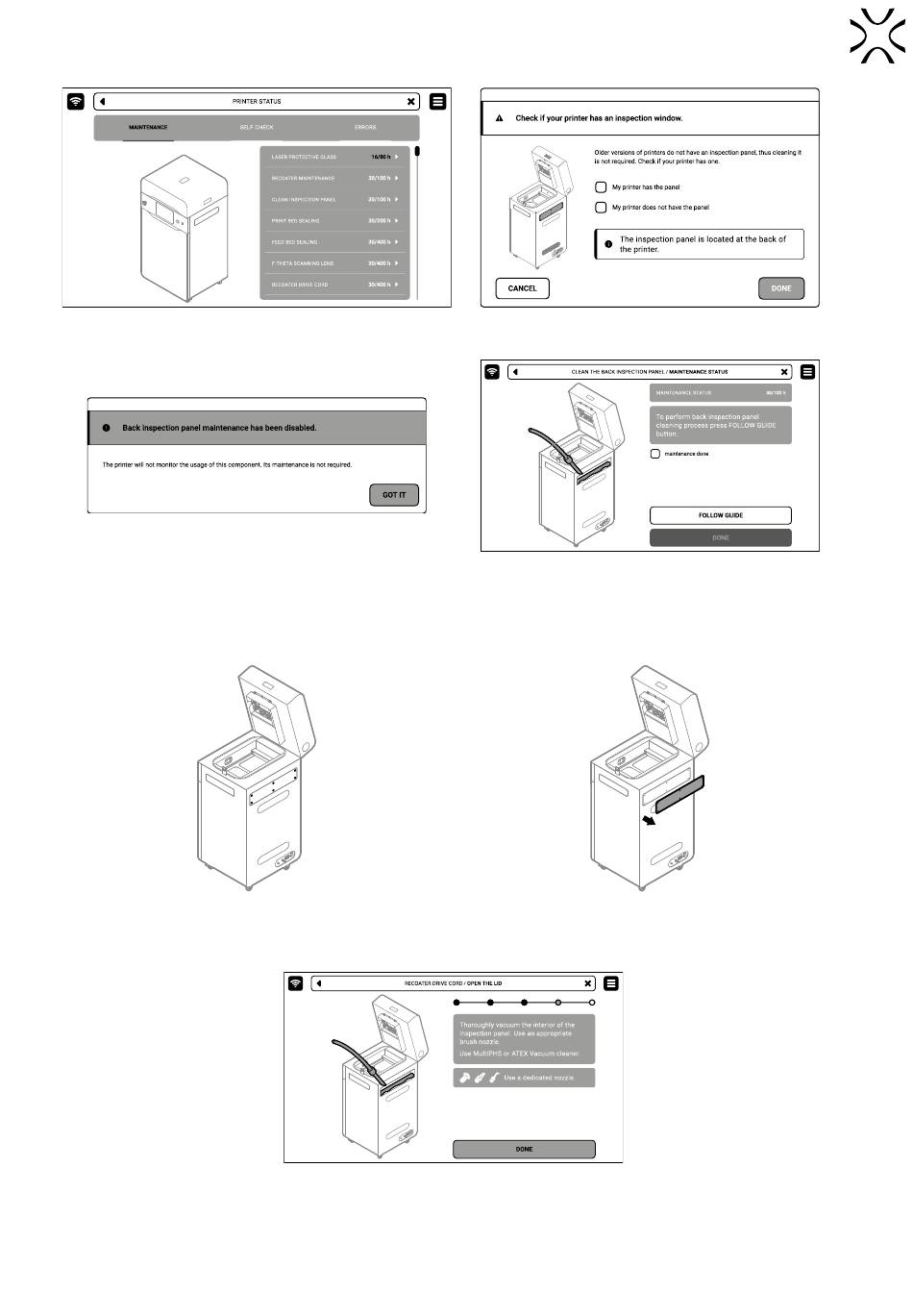

Fig. 13.85 The printer maintenance tab.
Fig. 13.87 Message confirming that the back panel
maintenance is permanently disabled.
5. Using a 2.5 [mm] allen key, remove the six screws securing the access panel on the back side of the printer (fig.
13.89).
6. Remove the access panel on the back side of the printer (fig. 13.90).
Fig. 13.89 Remove six screws from the access panel.
7. Thoroughly vacuum the interior behind the panel with the ATEX/Intertek Vacuum Cleaner. Use an appropriate nozzle
(fig. 13.91).
Fig. 13.86 Confirm if your printer is equipped with the back
Fig. 13.88 The back inspection panel maintenance screen.
Fig. 13.91 Thoroughly clean behind the panel.
inspection panel.
Fig. 13.90 Remove the access panel.
Sinterit Lisa X SLS 3D Printer Original User Manual | 68
