13.10 Checking the tension of the Recoater drive unit cord (> rev. C)
You will need: 2 [mm] allen key, 2.5 [mm] allen key, 7 [mm] wrench, 10 [mm] torque wrench.
Every approx. 400 hours is required to check the tension of the Recoater Drive Unit Cord. A properly tensioned cable is
springy, with no curve, and under finger pressure, it flexes by about 0.5 [cm].
1. On the PRINTER STATUS tab, select the RECOATER DRIVE CORD position.
2. The maintenance tab of the checking Recoater Drive Unit Cord will appear on the screen. You can use the step-by-step
guide (press FOLLOW GUIDE) or perform the replacement yourself.
3. In this case, mark MAINTENANCE DONE once you have completed the procedure, and then the DONE button. The
timer will reset to zero (fig. 13.63).
4. Choose UNLOCK LID on the screen.
5. Push on the lid and pull it up using the lid handle. Remember, you only have 10 seconds to open it before the lock
activates again.
6. Using a 2.5 [mm] allen key, remove the six screws securing the access panel on the right side of the printer (fig. 13.64).
7. Remove the access panel on the right side of the printer (fig. 13.65).
Fig. 13.64 Remove six screws from the access panel.
8. Using a 2 [mm] allen key remove the four screws securing the access panel on the top side of the printer (fig. 13.66).
9. Remove the access panel on the top side of the printer (fig. 13.67).
Fig. 13.66 Remove four screws from the access panel.

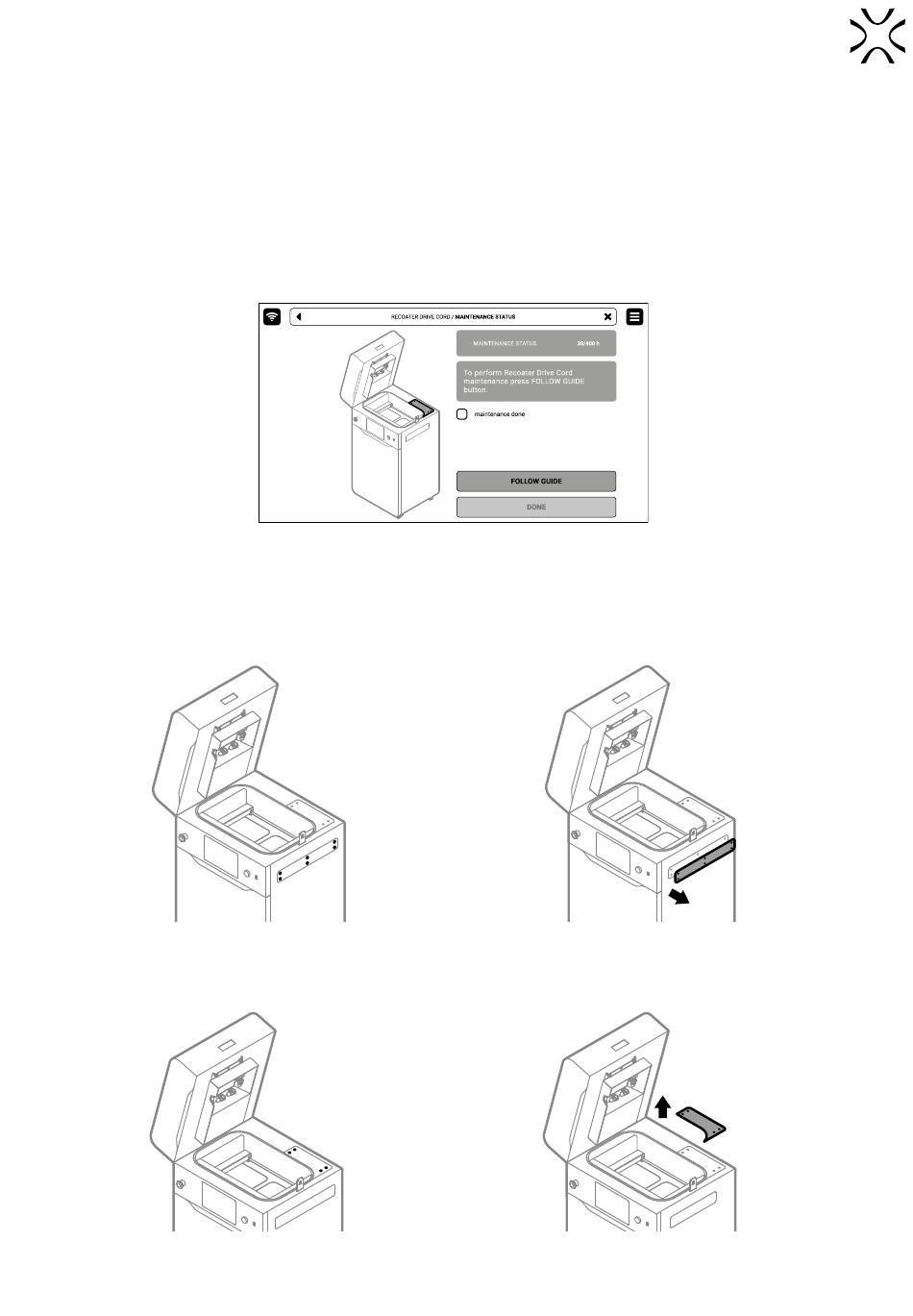

Fig. 13.63 The screen of the maintenance of the Recoater Drive Unit Cord.
Fig. 13.65 Remove the access panel
Fig. 13.67 Remove the access panel.
