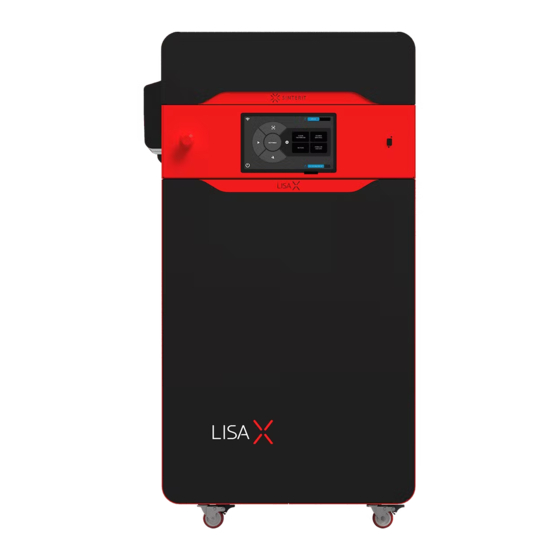

SINTERIT Lisa X Translation Of The Original User Manual
Sls 3d printer
Hide thumbs
Also See for Lisa X:
- Original user manual (87 pages) ,
- Translation of the original user manual (62 pages) ,
- Short user manual (12 pages)
Related Manuals for SINTERIT Lisa X
Summary of Contents for SINTERIT Lisa X
- Page 1 Sinterit LISA X SLS 3D PRINTER Translation of the original user manual Please read the manual before using the product. Version 02/2022...
-
Page 2: Table Of Contents
In order to ensure safe and efficient operation of Sinterit devices and products, please make sure to follow the instructions and safety guidelines outlined in this manual. Please be sure to keep this document for future reference. Table of Contents 1. -
Page 3: Glossary
Do not stare into the beam or view with optical instruments. CAUTION! High temperature – do not touch. Excess heat dissipation can cause burns. CAUTION! Beware of moving parts which can crush hands. Sinterit LISA X User Manual | 3... - Page 4 It is necessary to wear antistatic clothes and shoes. Mandatory action when working with powder. IMPORTANT! Information essential to correctly perform a specific task. IMPORTANT! You must read the instructions before taking action. ATTENTION! Sinterit products and materials may not be suitable for disposal in municipal waste. Sinterit LISA X User Manual | 4...
-
Page 5: General Safety Guidelines And Personal Protection Information
• The product should be set up in accordance with these instructions and by trained personnel. • Sinterit products may only be safely used or operated by adults and can pose serious risk to children. ATTENTION! When restoring original working conditions, the appointed personnel should always make sure that at the end of the operating procedure, proper printer operation safety conditions are restored, especially the safety devices and the protective guards. -
Page 6: Electric Devices - Power Supply And Grounding System
It is recommended to use UPS units that, in the case of a momentary power failure, will allow the printing process to finalise. ATTENTION! Industrial equipment, such as provided by Sinterit, must always be connected to a grounded outlet to prevent electric shock in the event of a fault. Sinterit LISA X User Manual | 6... -
Page 7: Printers - General Usage Safety Guidelines
• The built-in oxygen level sensor is not a certified device and the signal cannot be treated as the only warning. Keep the Lisa X printer and the inert gas bottle in well-ventilated rooms. • If you hear an alert, open the windows/ventilate the room and leave the room. -
Page 8: Printers - Safety During Repair And Maintenance
Any alterations to the appliance can only be made by Sinterit Support. • In the event of Customers fitting a tool to the machine not supplied by Sinterit, make sure the safety conditions required by Machine Directive 2006/42/CE are complied with and in any event, Sinterit is unable to accept liability for any problems arising from the use of such a tool. -
Page 9: Powders - Safety While Working With Powder
WARNING! • When working with the polyamide powder or other designated printer powder for the Sinterit Lisa X printer, always wear personal protection dedicated to this device (protective glasses, protective gloves, protective dust mask). • When working with a powder, avoid inhalation or swallowing and contact with skin and eyes. -
Page 10: General Information
3.1 INTENDED USE Sinterit Lisa X is a compact 3D printer, making use of the selective laser sintering (SLS) technology in additive manufacturing (AM) processes. In its operation, it uses powdered polymers as the source material. The device enables professional and quick manufacturing of physical 3D objects from their digital models. -
Page 11: Technical Specification
Average inert gas consumption 0.48 [m /h] = 8 [l/min.] SOFTWARE Software² Sinterit Studio Supported file types STL, 3MF, OBJ, 3DS, FBX, DAE Output file types *.scode, *.sspf, *.sspfz OS compatibility Microsoft Windows 10 or higher Sinterit LISA X User Manual | 11... - Page 12 Max temperature in the chamber 210 [°C] / 410 [°F] POWER 230 [V] AC, 50/60 [Hz], 8 [A] Operating voltage or 100-120 [V] AC, 50/60 [Hz], 15 [A] Average power consumption 0.85 [kW] Maximum power consumption 1.65 [kW] Sinterit LISA X User Manual | 12...
-
Page 13: Printer Description
Fig. 3.1 Front view of the printer, heating module and overflow container. PYROMETER WINDOW Fig. 3.2 View of the print chamber. LID HINGES INERT GAS CONTROL SYSTEM Fig. 3.3 View of the left side of the printer. Sinterit LISA X User Manual | 13... -
Page 14: Printer Safety Plate
DO NOT REMOVE THIS LABEL! Manufacturer: Lisa X Name: Serial number: Manufactured: Made in: Sinterit sp. z o.o. ul. Nad Drwiną 10 bud. B3, 30-741 Kraków, Poland EU, POLAND www.sinterit.com support@sinterit.com IEC Protection Class: Machine type: SELECTIVE LASER SINTERING 3D PRINTER Dimensions: 650 x 610 x 1200 [mm] 25.6 x 24.0 x 47.2 [in]... -
Page 15: Unpacking And Installing The Printer
Lift the gangway support and lower the gangway. Slide the printer out of the flight case. This step requires the help of another person. Place the printer in its desired location, then lock the wheels (there are 2 locks). Sinterit LISA X User Manual | 15... -
Page 16: First Start-Up
Fig. 5.1 Connecting the power cable to the power socket. ATTENTION! Lisa X is supplied with 230 [V]. If you wish to connect the machine to 110 [V], use the voltage converter included with the printer. Flip the power button on the back of the printer to the I position. -
Page 17: Mounting The Laser Protective Glass
10. Slide the metal tabs of the laser protective glass into the mounting brackets below the laser module. 11. Lock the laser protective glass in place by mounting and tightening the two quick release nuts. 12. Lift the heating module. 13. Reinsert the heating module safety pin. Sinterit LISA X User Manual | 17... -
Page 18: Connecting The Printer To The Wi-Fi Network
Input the password and press Once the connection has succeeded, the network will be marked with a IMPORTANT! In case you want to change the connected network, press FORGET and repeat the steps above. Sinterit LISA X User Manual | 18... -
Page 19: Main Menu
CAMERA VIEW – view from the built-in camera • Choose this option to view the inside of the print chamber, including while printing, as seen by the built-in camera. Fig. 5.8 The CAMERA VIEW screen. Sinterit LISA X User Manual | 19... -
Page 20: Preparing To Print
If any part of the printer requires maintenance or replacement, a corresponding message will appear on the screen. IMPORTANT! It is always possible to go back to the main menu on the screen without interrupting the printing process. Press START NEW PRINT button do continue. Sinterit LISA X User Manual | 20... -
Page 21: Filling The Print Chamber With Powder
15. Apply silicone oil (available in the Dedicated Powder Tools) to both guide bars. A few drops along the whole length is enough. Afterwards press DONE. 16. Make sure the print chamber is free of any unwanted items (i.e. spatulas), then close the lid. Afterwards press DONE. Sinterit LISA X User Manual | 21... -
Page 22: Final Steps Before Printing
20 NOV 12:34 message hasn’t appeared, it means that no components CAMERA VIEW REMOVE PRINTOUT require any maintenance. Press GOT IT. Fig. 8.1 The screen informs the user that the printing is finished. Sinterit LISA X User Manual | 22... - Page 23 Join the IO BOX elements together like in the figure 8.4. Fig. 8.4 Closing the IO BOX. Carry the IO BOX and its content onto the foldable tray from Dedicated Powder Tools or onto the PHS worktop (fig. 8.5). Sinterit LISA X User Manual | 23...
-
Page 24: Cleaning The Printer
Make sure that no tools remain inside the print chamber. Afterwards press AUTO HOME to begin homing the Feed Bed and Print Bed positions. For cleaning the printer Sinterit recommends dedicated solutions: the PHS (Powder Handling Station) with a specialized vacuum (ATEX/INTERTEK Vacuum Cleaner) or the vacuum by itself (fig. 9.1). -
Page 25: Cleaning The Overflow Container
Slide the UNLOCK OVERFLOW button to the UNLOCKED position, to release the electrolock and slide the drawer back into the printer. ATTENTION! Attempting to slide the overflow container back into the printer without unlocking the safety mechanism can damage it. Sinterit LISA X User Manual | 25... -
Page 26: Printing With Pa11
WARNING! • The built-in oxygen level sensor is not a certified device and its signal must not be taken as the only warning. Store the Lisa X printer and the gas cylinder in a well-ventilated area. • When the alarm signal is activated, open the windows/ventilate the room and leave the room immediately. -
Page 27: Powder Refreshment
13. CHECK POWDER CONTAINER starts flashing. Open the door and make sure that the metal container is in its place and it is empty. 14. Close the PHS door. 15. Wait until all the powder is removed from the powder chamber. Sinterit LISA X User Manual | 27... -
Page 28: Powder Refreshment With Powder Sieve Or Metal Strainer
13. Repeat steps 1, 7-12 three times (skip adding fresh powder) to make sure the powder is thoroughly mixed and sifted. 14. The received powder is ready to use. Remember to store the powder in a tightly closed metal container. Sinterit LISA X User Manual | 28... -
Page 29: Basic Maintenance
IMPORTANT! If you have any questions, please contact our After-sales team. For more information, please visit our website www.sinterit.com under the support section. Sinterit LISA X User Manual | 29... -
Page 30: Cleaning The Pyrometer Window
Po 10 sekundach uruchomi się elektrozamek i nie będzie możliwe otwarcie klapy drukarki. Jeśli nadal chcesz otworzyć klapę drukarki, przesuń ponownie przycisk UNLOCK LID na ekranie drukarki. Remove the split pin from the heating module. Lower the heating module. Sinterit LISA X User Manual | 30... - Page 31 10. Lock the laser protective glass in place by mounting and tightening the two quick release nuts. 11. Lift the heating module. 12. Reinsert the heating module safety pin. LASER PROTECTIVE GLASS Fig. 12.1 Cleaning the laser protective glass. Sinterit LISA X User Manual | 31...
-
Page 32: Cleaning The Area Under The Print Chamber
During printing, powder may accumulate in the area under the print chamber. A thin, even layer of powder is no cause for concern. It indicates correct sealing and regular operation of the machine. Powder accumulating in only one place indicates a problem with the sealing of the Beds. For more information, please visit our website www.sinterit.com under the support section. -
Page 33: Packing The Printer Into The Flight Case
15. Legal notice Where this manual refers to Sinterit or the Company, this means Sinterit sp. z o.o. with its legal seat in Krakow, registered by the District Court for Kraków-Śródmieście in Krakow, XI Commercial Division of the National Court Register under number: 535095, NIP (tax number): 6793106416, with the share capital for a date of publication of this manual of PLN 102,200 (say: one hundred and two thousand two hundred). -
Page 34: Trademarks
The terms of the warranty are set forth in the agreement between the buyer and the Company. In case of a purchase made in the Sinterit online shop, the terms of the guarantee are specified in the Terms and Conditions, subject to the acceptance of the Customer before placing an order. - Page 35 SINTERIT Sp. z o.o. ul. Nad Drwina 10 bud. B3, 30-741 Krakow, Poland www.sinterit.com Contact: +48 570 967 854...
