Omron CX-PROGRAMMER V9 Operation Manual page 63

OMRON

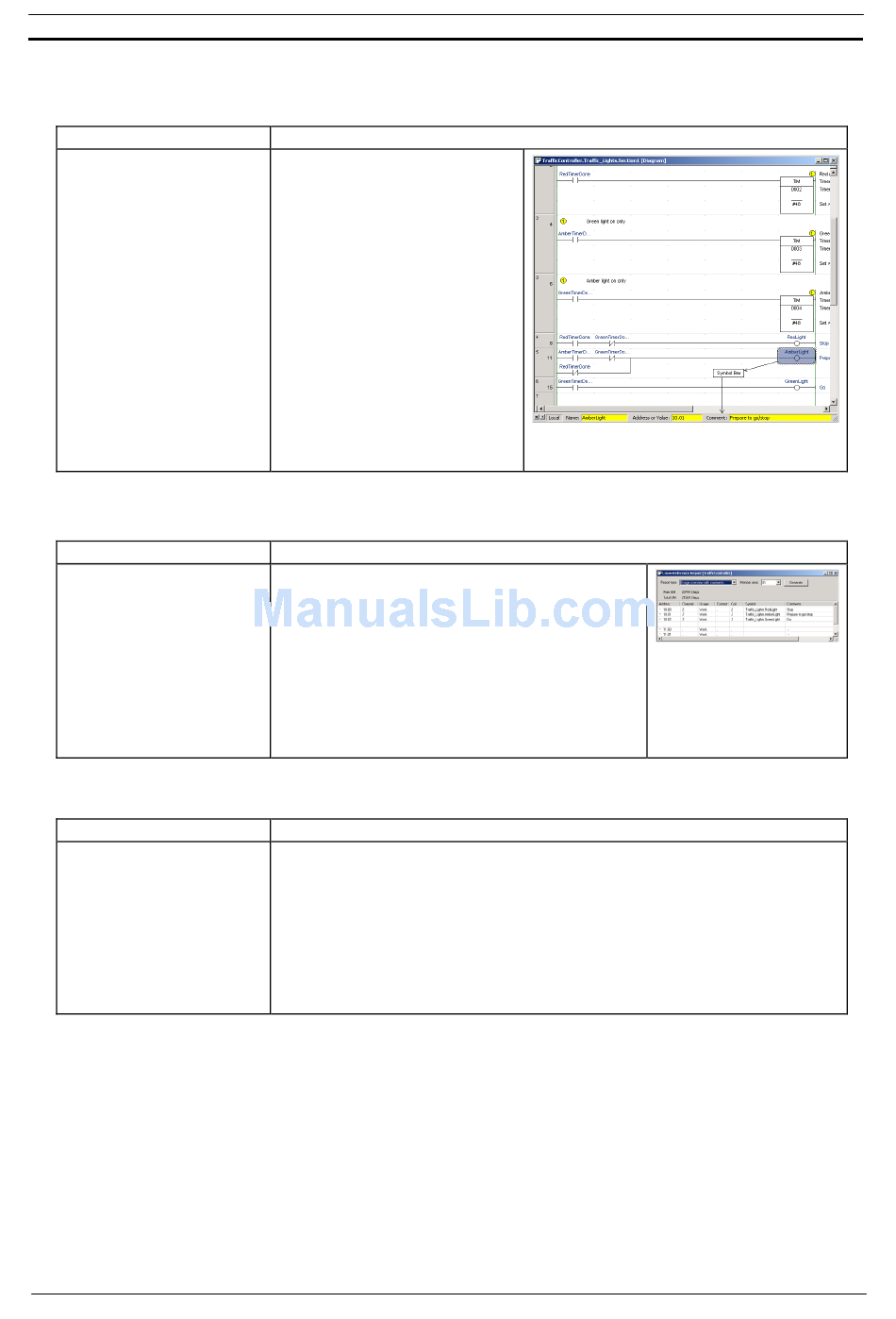

• Displaying the Global/Local, Name, Address/Value, and Comment Fields for the Symbol at
the Cursor Position below the Ladder Section Window (Symbol Bar)
Previous version (Ver. 3.3)
To display all comments, the
font size, cell width, and other
settings must be changed in
the Appearance Tab settings,
or detailed dialog mode must
be used to check the
comment display.
Improvements to Cross Reference Functions
• Displaying/Printing Cross Reference Function Usage List with Comments
Previous version (Ver. 3.3)
The cross reference function
usage list was displayed
without comments.
• Displaying the Cross Reference Function Usage List for the Corresponding Address from
the Ladder Screen
Previous version (Ver. 3.3)
The cross reference function
only enabled the cross
reference report to be
selected from the display
menu or a cross reference
pop-up display to be selected
from the display menu for the
address at the cursor position.
The global/local, name,
address/value, and comment fields
for the symbol at the cursor position
are displayed in the symbol bar
below the Ladder Section window.
Enable this function by selecting
Show symbol bar in the Diagrams
Tab in the Options Dialog Box of the
Tools Menu (the default setting is
ON: display).
Therefore, while increasing the
program display density, the text in
particularly long comments can be
checked, thereby improving the
readability of the program.
The cross reference function usage list can be
displayed with comments and the list can also be
printed.
Therefore, the user can check what the addresses
mean when checking the number of times the
addresses have been used. This thereby reduces the
labor required for programming/debugging.
This function can also be used to jump to the position of
the rungs being used.
By moving the cursor to an address in the ladder diagram and selecting Check usage
including unused, the usage list (with comments) can be displayed starting with the
selected address.
This function enables the cross references to be checked for the address directly from
the ladder display instead of from the cross reference report.
New version (Ver. 4.0)
New version (Ver. 4.0)
New version (Ver. 4.0)
PART 1: CX-Programmer
CX-Programmer_Page (xxix)
