STB Serial Settings
Allow STB-COMM – Selecting this option will enable the Host Link Port of the Standby CPU. This option should
not be selected if it is required to continue with communications when changing from Duplex operation to
Standby operation.
CPU Unit Duplex Transfer Settings
Transfer Program – This option should be selected if it is required to skip the Transferring Program area at
Duplex Initial operation after exchanging CPU units, (Verify will be executed). If programs can be matched
beforehand, use this setting to reduce the Duplex Initial Operation time.
EM Division Transmission – This option should be selected when it is required to transfer Duplex Initial data in
specified EM sizes. If the option is not selected the complete EM area will be transferred at once. Note that this
may cause the cycle time to be expanded for a short time.
Division Size – If the EM Division Transmission option has been selected the value entered for the division size
will determine the size of the EM area to transfer. Note that this setting only takes effect at startup or at the start of
an operation. It cannot be changed during an operation.
Transfer Parameter Area of Inner board – Select this option when it is required to transfer the Parameter Area of
the inner board between Units.
Transfer Variable Area of Inner board – Select this option when it is required to transfer the Variable Area of the
inner board between Units.

Saving the PLC Setup to a CSV File (CJ2 CPU Units Only)

The values set in the PLC Setup in all of the tab pages can be saved in CSV file format. CSV files are convenient
for operations such as creating specification sheets, because they can be edited using commercially available
applications.
1, 2, 3...
CX-Server PLC Tools_Page 42
Note:
Once data has been saved as a CSV file, it cannot be read again by the CX-Programmer.

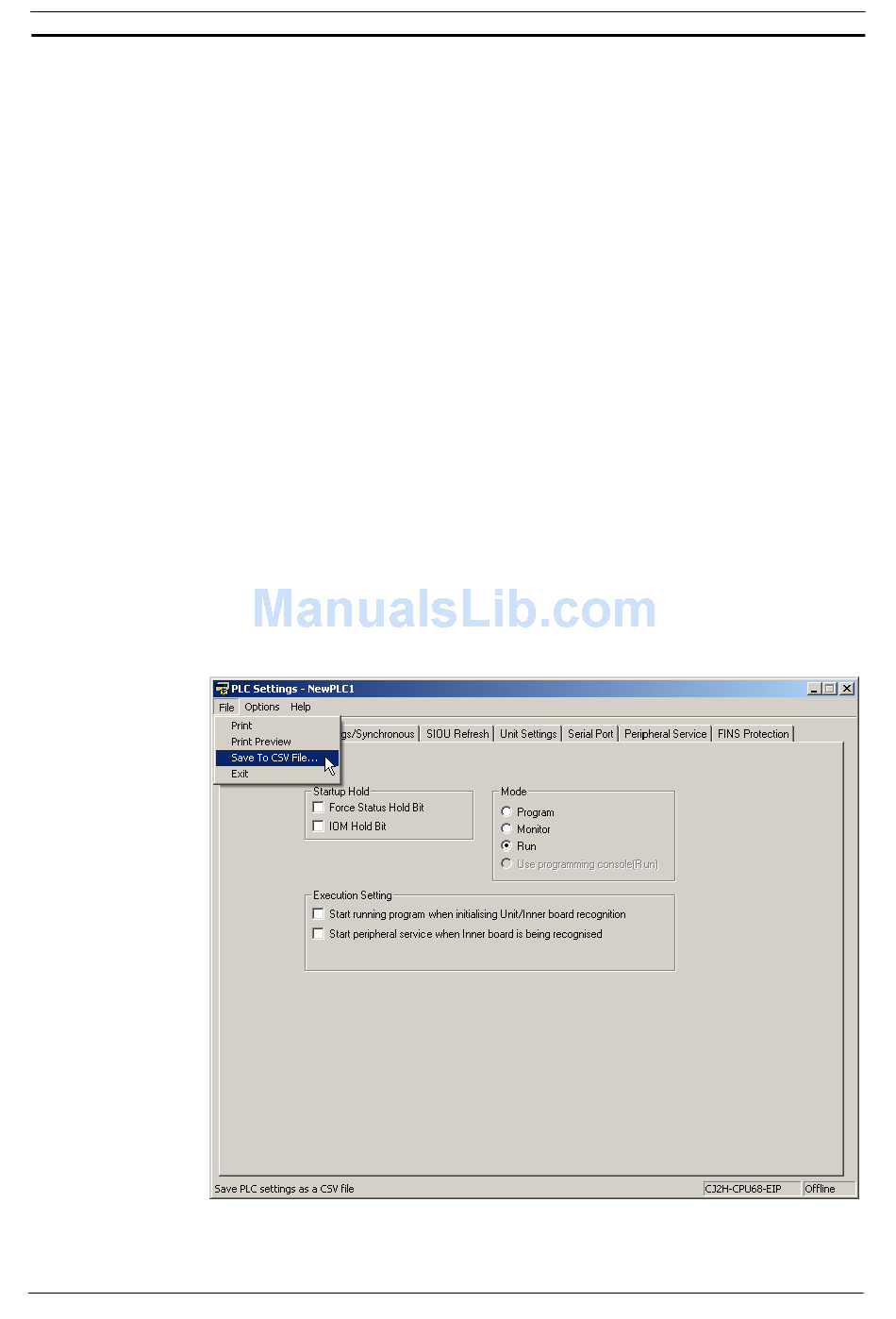

1. In the PLC Setup Window, select Save To CSV File from the File Menu.
2. Click the Save Button. The CSV file will be saved.
