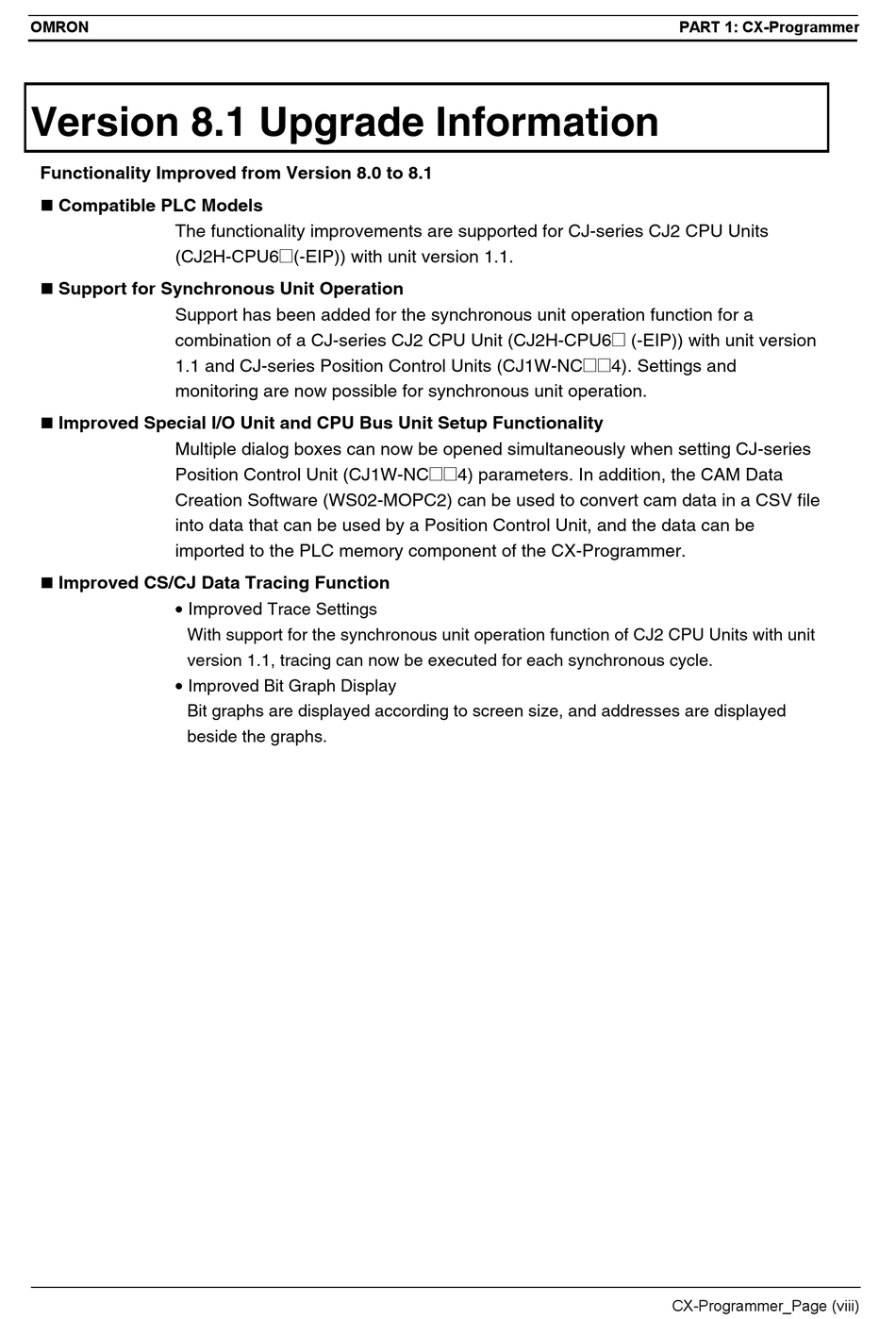

Version 8.1 Upgrade Information
Functionality Improved from Version 8.0 to 8.1
Compatible PLC Models
The functionality improvements are supported for CJ-series CJ2 CPU Units
(CJ2H-CPU6@(-EIP)) with unit version 1.1.
Support for Synchronous Unit Operation
Support has been added for the synchronous unit operation function for a
combination of a CJ-series CJ2 CPU Unit (CJ2H-CPU6@ (-EIP)) with unit version
1.1 and CJ-series Position Control Units (CJ1W-NC@@4). Settings and
monitoring are now possible for synchronous unit operation.
Improved Special I/O Unit and CPU Bus Unit Setup Functionality
Multiple dialog boxes can now be opened simultaneously when setting CJ-series
Position Control Unit (CJ1W-NC@@4) parameters. In addition, the CAM Data
Creation Software (WS02-MOPC2) can be used to convert cam data in a CSV file
into data that can be used by a Position Control Unit, and the data can be
imported to the PLC memory component of the CX-Programmer.
Improved CS/CJ Data Tracing Function
• Improved Trace Settings
With support for the synchronous unit operation function of CJ2 CPU Units with unit
version 1.1, tracing can now be executed for each synchronous cycle.
• Improved Bit Graph Display
Bit graphs are displayed according to screen size, and addresses are displayed
beside the graphs.
