PART 1: CX-Programmer
CHAPTER 4 – Reference
Procedure

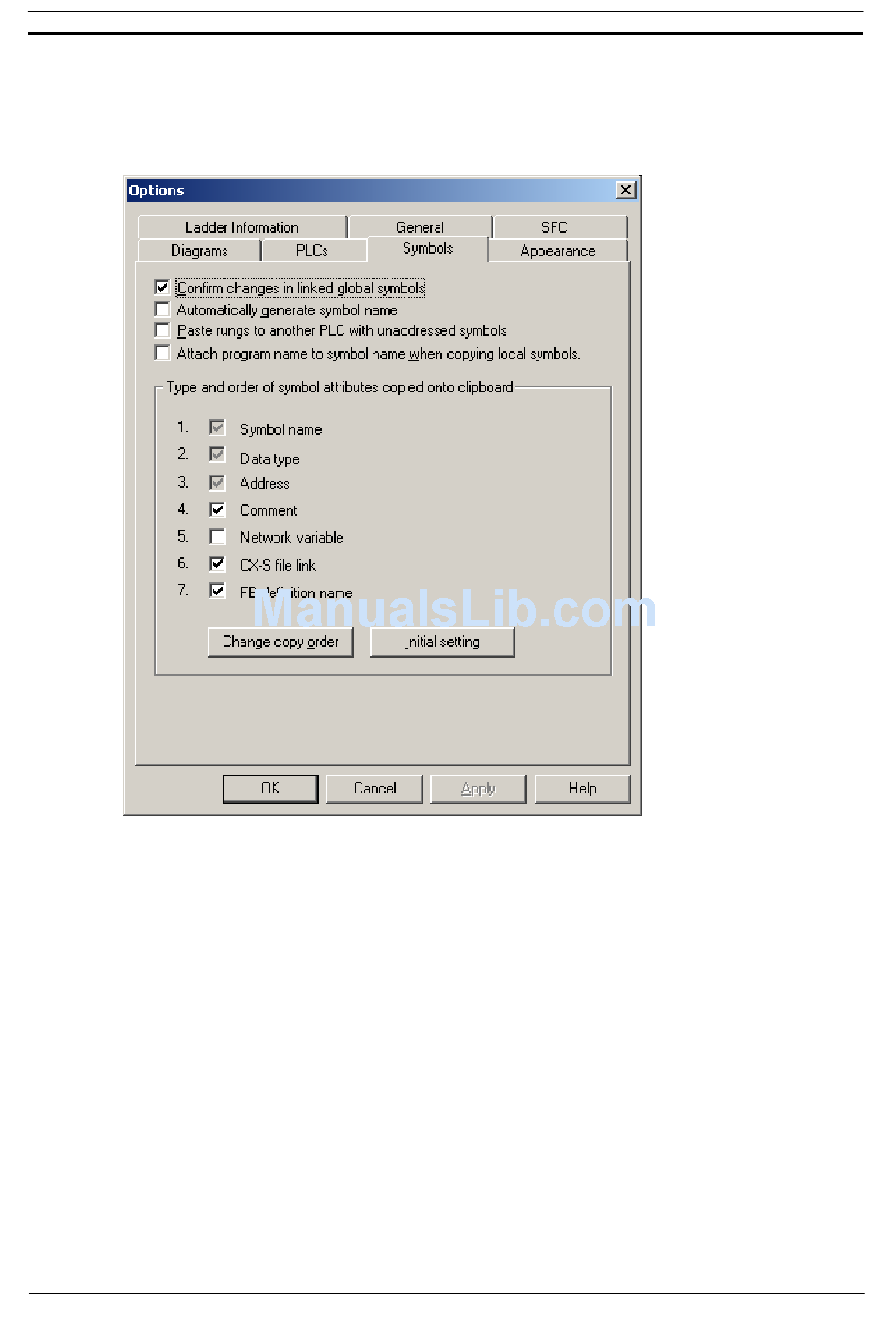

1. Select Tools – Options from the menu.
2. Click the Symbols Tab and set the copy order and items to be copied in the Type and order of symbol
attributes copied onto clipboard Field.
Pasting Symbols with Errors
In the following example only two of the Symbols are correct the others are not, attempting to insert all these
Symbols into a symbol table will generate errors.
AmberLight
AmberLight
AmberOnlyTimerDone
GreenLight
GreenTimerDone
The following error dialog will be displayed if the above symbols are pasted into the symbol table.
CX-Programmer _Page 70
BOOL 10.01
BOOL 10.01
BOOL T0004
BOOL 999999
UNKNOWN
- Correct Symbol
- Duplicate Name
- Correct Symbol
- Incorrect Address
- Incorrect Type
OMRON
