PART 2: CX-Server PLC Tools
CHAPTER 3 – IO Table Component
CS/CJ/CP Series CPU Unit
CPU Rack
CX-Server PLC Tools_Page 34
CX-Programmer
I/O Table
Serial Communication Board/Unit
(CS1W-SCB@@)
(CS1W/CJ1W-SCU@@)
Position Control Unit
(CS1W/CJ1W-NC@@@)
MECHATROLINK-II Position Control Unit
(CJ1W-NCF@@)
Motion Control Unit
(CS1W-MC@@@)
MECHATROLINK-II Motion Control
Unit
(CS1W/CJ1W-MCH@@)
FL-net Unit
(CS1W/CJ1W-FLN@@)
Loop Control Unit/Board
(CS1W-LC001/LCB@@)
Loop CPU Unit
(CJ1G-CPU@@P)
Process CPU Unit
(CS1D-CPU@@P)
Ethernet Unit
(CS1W/CJ1W-ETN@@)
Controller Link Unit
(CS1W/CJ1W-CLK@@)
SYSMAC LINK Unit
(CS1W-SLK@@)
DeviceNet Unit
(CS1W/CJ1W-DRM@@)
Profibus-DP Master Unit
(CS1W-PRM@@)
EtherNet/IP Unit or
Built-in port or
CJ2B-EIP21 Inner Board
in CPU Unit (CJ2H-CPU6@-EIP)
CJ2M-EIP21 Inner Board
in CPU Unit (CJ2M-CPU3@)

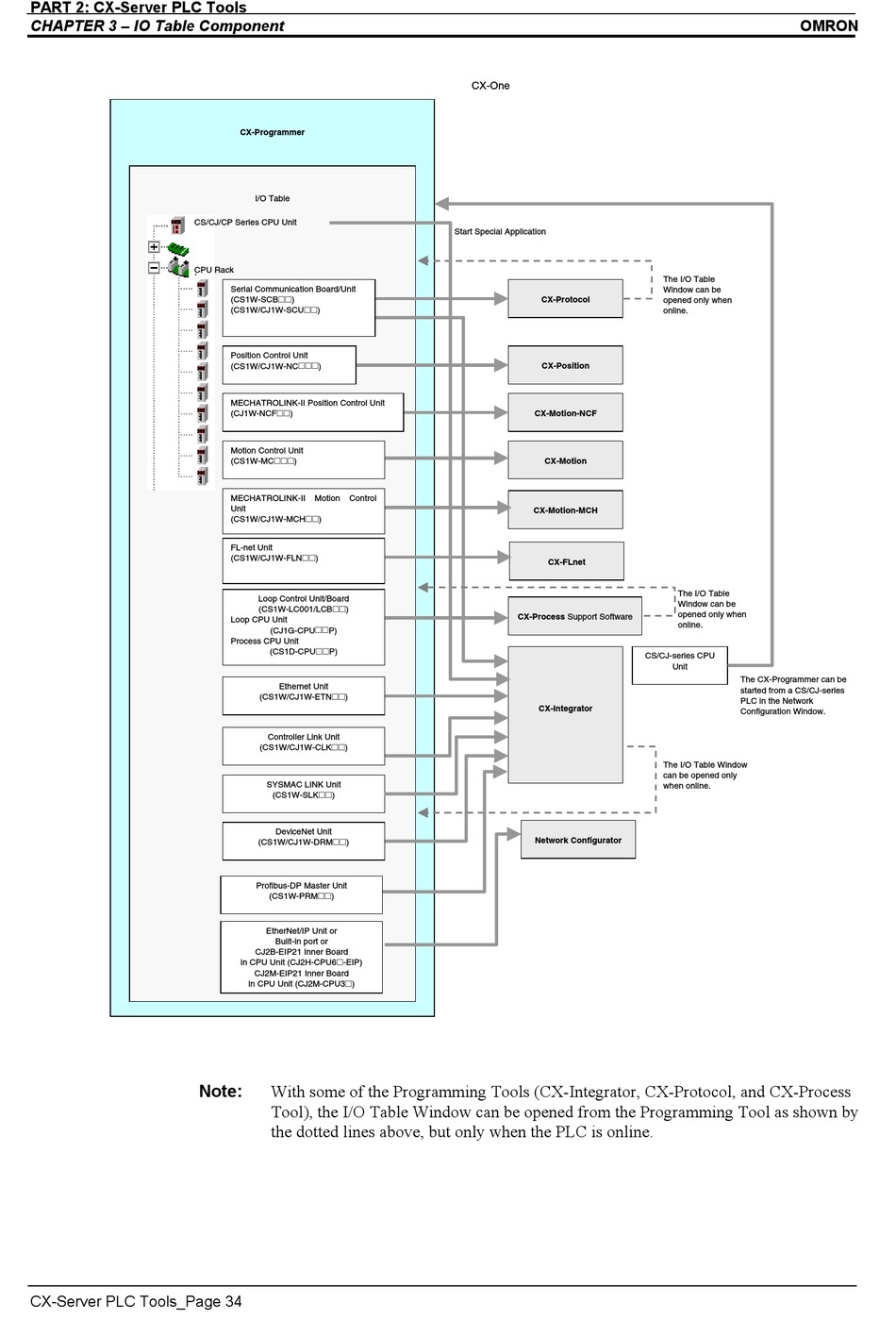

Note: With some of the Programming Tools (CX-Integrator, CX-Protocol, and CX-Process
Tool), the I/O Table Window can be opened from the Programming Tool as shown by
the dotted lines above, but only when the PLC is online.
CX-One
Start Special Application
CX-Protocol
CX-Position
CX-Motion-NCF
CX-Motion
CX-Motion-MCH
CX-FLnet
CX-Process Support Software
CX-Integrator
Network Configurator
OMRON
The I/O Table
Window can be
opened only when
online.
The I/O Table
Window can be
opened only when
online.
CS/CJ-series CPU
Unit
The CX-Programmer can be
started from a CS/CJ-series
PLC in the Network
Configuration Window.
The I/O Table Window
can be opened only
when online.
