Additional Features

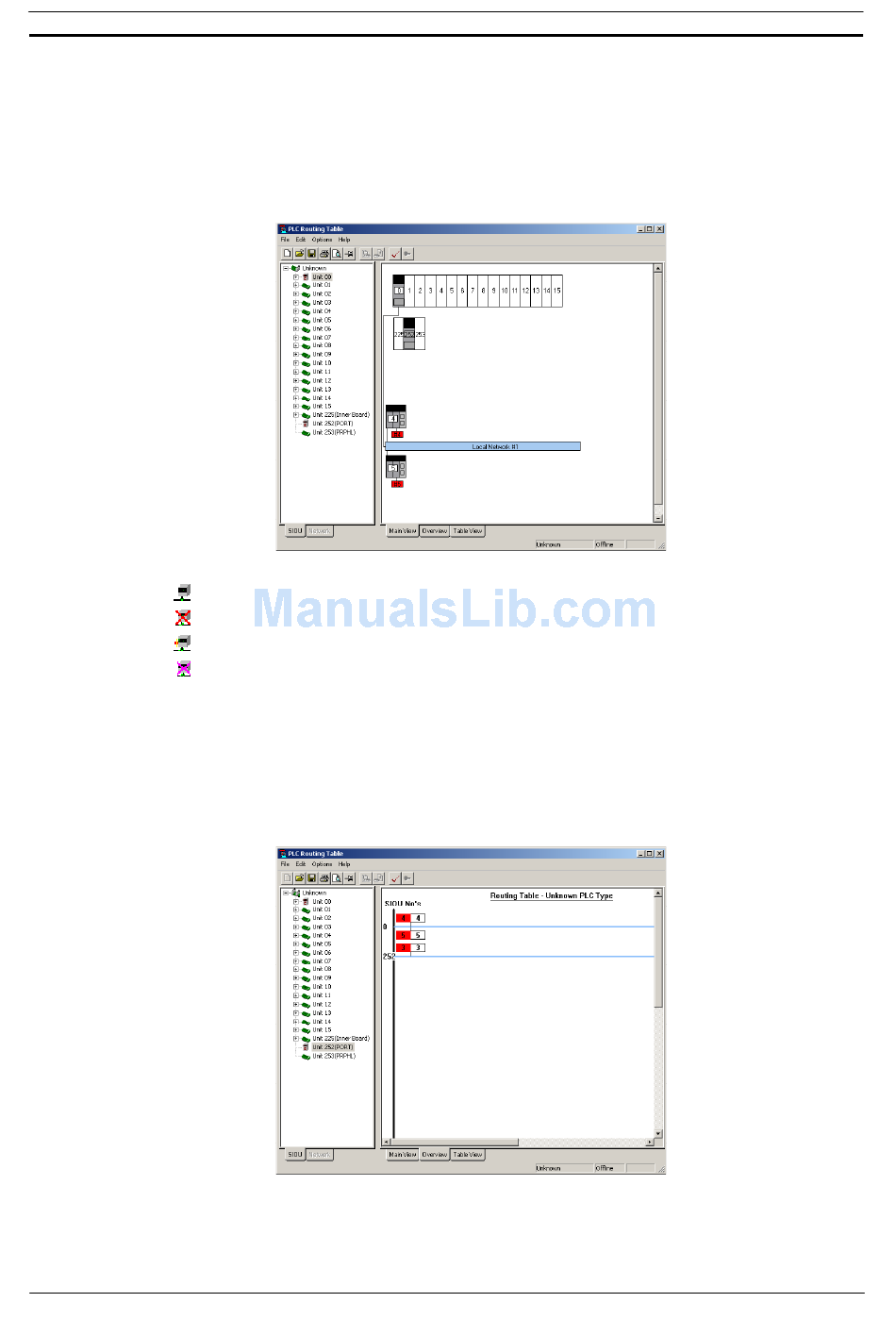

The Network View Screen

The Network tree view is used to display the nodes on the locally connected network and is only available when
the local connection network is an OMRON proprietary network, such as a Controller Link, Sysmac link, Sysmac
Net or SYSWAY.

The Overview Screen

Selecting the Overview tab will show all the routing tables in an graphical format. The relay node numbers are
shown in the whites boxes and the remote network numbers in the red boxes. The numbers on the right are the
Local Network numbers.
Note that the tables can not be edited in this view.
This icon is used to indicate that a node is present at this node number.
This icon is used to indicate that node is not present at this node number.
This icon is used to represent the currently selected node.
This icon is used to indicate that a node is present at this node number but there are
errors reading the routing table.
