Reading and Transferring Data Link Tables

After a data link table has been created, follow the procedure below for reading it and transferring it to all nodes
participating in the data links.
Reading the Data Link Table
1 Select Data Link | Setup from the CX-Net.

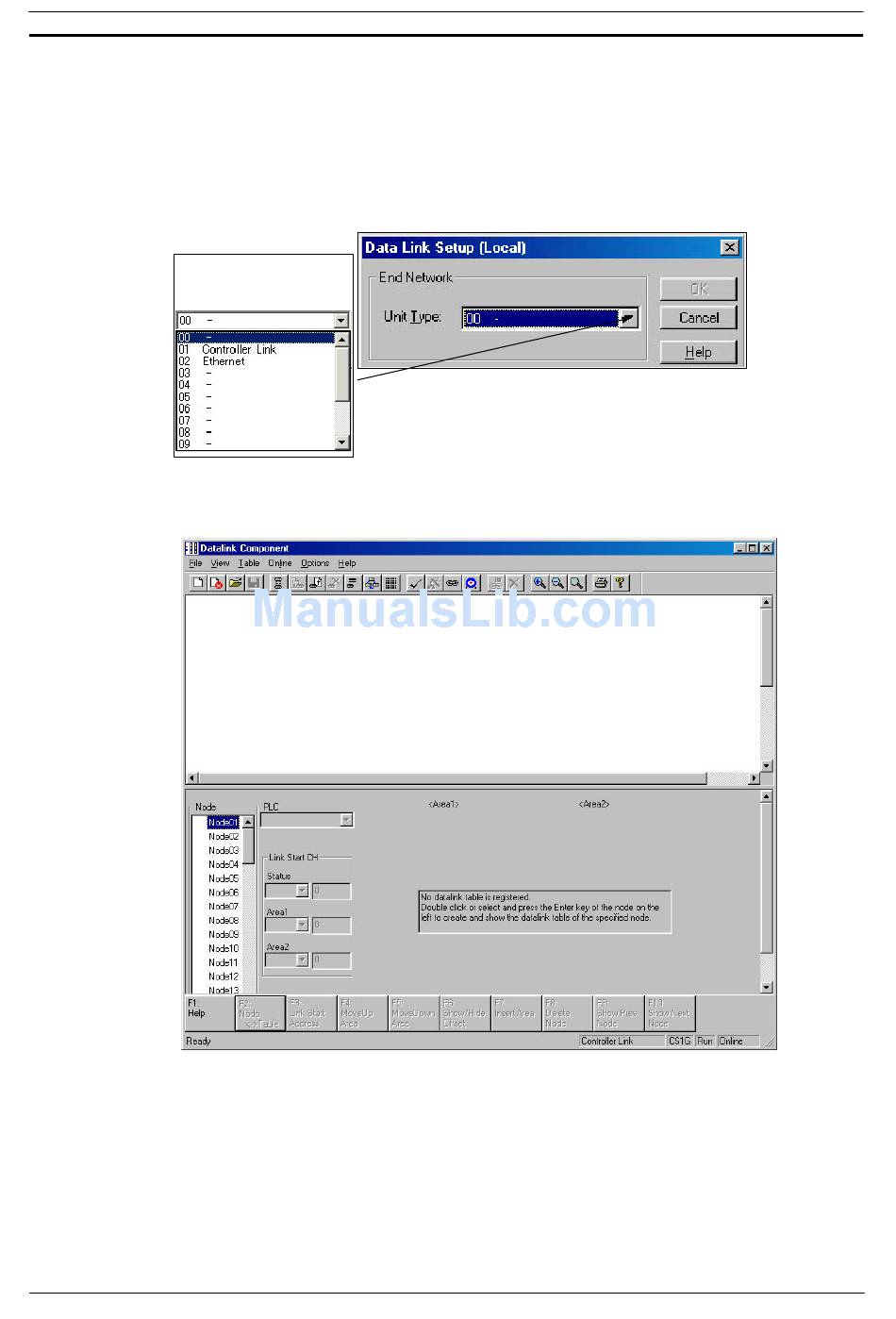

The Data Link Setup dialog box will be displayed. (For local network only, i.e., when network address is 0.)
Clicking on this down arrow will
display the Communications
Units mounted to the PLC, as
shown below.
2 Select Controller Link or SYSMAC LINK, and then click the OK button.
Either the Datalink Component (Controller Link) or Datalink Component (SYSMAC LINK) window will be
displayed.
3 Select File | Open.
The Open dialog box will be displayed.
4 Select the data link table file (Sample.cl3 in this example,) and then click the Open button.
