When a rung is chosen, the program section is immediately shown at the chosen position.
Note:
Next Address Reference / Input / Output / Previous
The address reference tool allows easy navigation to the location of other places in the program where an
address has been used. These commands may be used when the address reference tool is on show, or even
without it if the diagram options 'Allow Address-Referencing without Window' option is set.
When the diagram cursor is above a contact (or coil), it is possible to jump directly to a coil (or contact) that is
using the same address. Use the 'Space' key to jump to the next coil (or contact) and 'Shift' + 'Space' key to
jump backwards.
The Go to Next Address Reference command moves the selected line down one, so that the program shows the
next reference of the current address. Use the shortcut key N to jump to the next address reference.
The Go to Next Input command moves the selected line on the tool to the next line referring to an input
instruction (e.g. contact). If an input is not found on lines below the currently selected reference, then the search
will begin at the top of the list.
The Go to Next Output command moves the selected line on the tool to the next line referring to an output
instruction (e.g. coil, or 'MOV' instruction). If an output is not found on lines below the currently selected
reference, then the search will begin at the top of the list.
The navigation tool remembers a history of the places that have been jumped from - the Go to Previous Jump
Point command moves back to the last point from which a jump was made from. Use the shortcut key B to jump
to the previous jump point.
Select All
Rather than selecting items in a window individually, it is possible to select the window and then Select All from
the Edit menu.
Toolbars – Viewing, Hiding and Customizing Toolbars
The Customize dialog allows a set of toolbars to be chosen for display. It also allows new toolbars to be created.
A full description of each toolbar is provided in Appendix A, Toolbars and Keystrokes.
Use the following procedure to add or remove a toolbar from the CX-Programmer environment.
CX-Programmer _Page 56

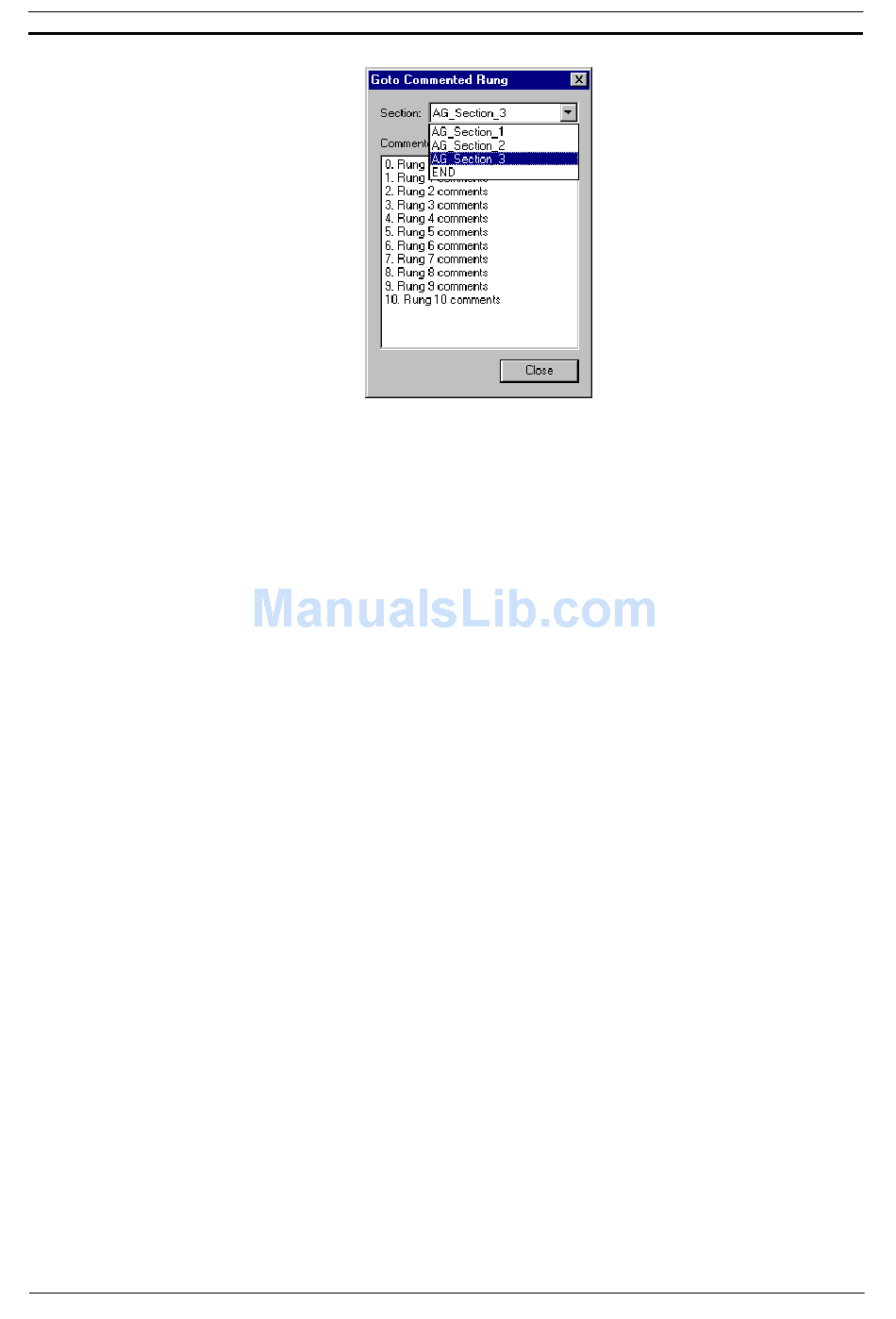

The size of the Go to Commented Rung window displayed when Edit | Go to | Commented
Rung is selected can be changed.
