5. Click the OK Button in the Change PLC Dialog Box.
♦ Connecting to the EtherNet/IP Network Using an Ethernet Cable, and Then Connecting to a PLC on the
Network
1. When you create a new project, select CJ2H or CJ2M in the Device Type Field.
2. Select EtherNet/IP in the Network Type Field.
3. Click the Settings Button next to the Network Type Field. The following Network Settings
4. Input the IP address of the PLC on the network to be connected, and then click the OK Button.
5. Click the OK Button in the Change PLC Dialog Box.
PROM Writer
PROM Writer is a device allowing Programmable Read Only Memory (PROM) to be written to.
The following connection is required:
♦ RS232 connection via a standard serial port on the computer (COM1 etc.).
The Driver tab of the Network Settings dialog is similar to that belonging to SYSMAC WAY, however, the
transmission conditions should be set to:
♦ Baud Rate = 9600
♦ Data Bits = 8
♦ Parity = none
♦ Stop Bits = 1
♦ or those of the particular PROM writer unit being used.
Revision 2.0

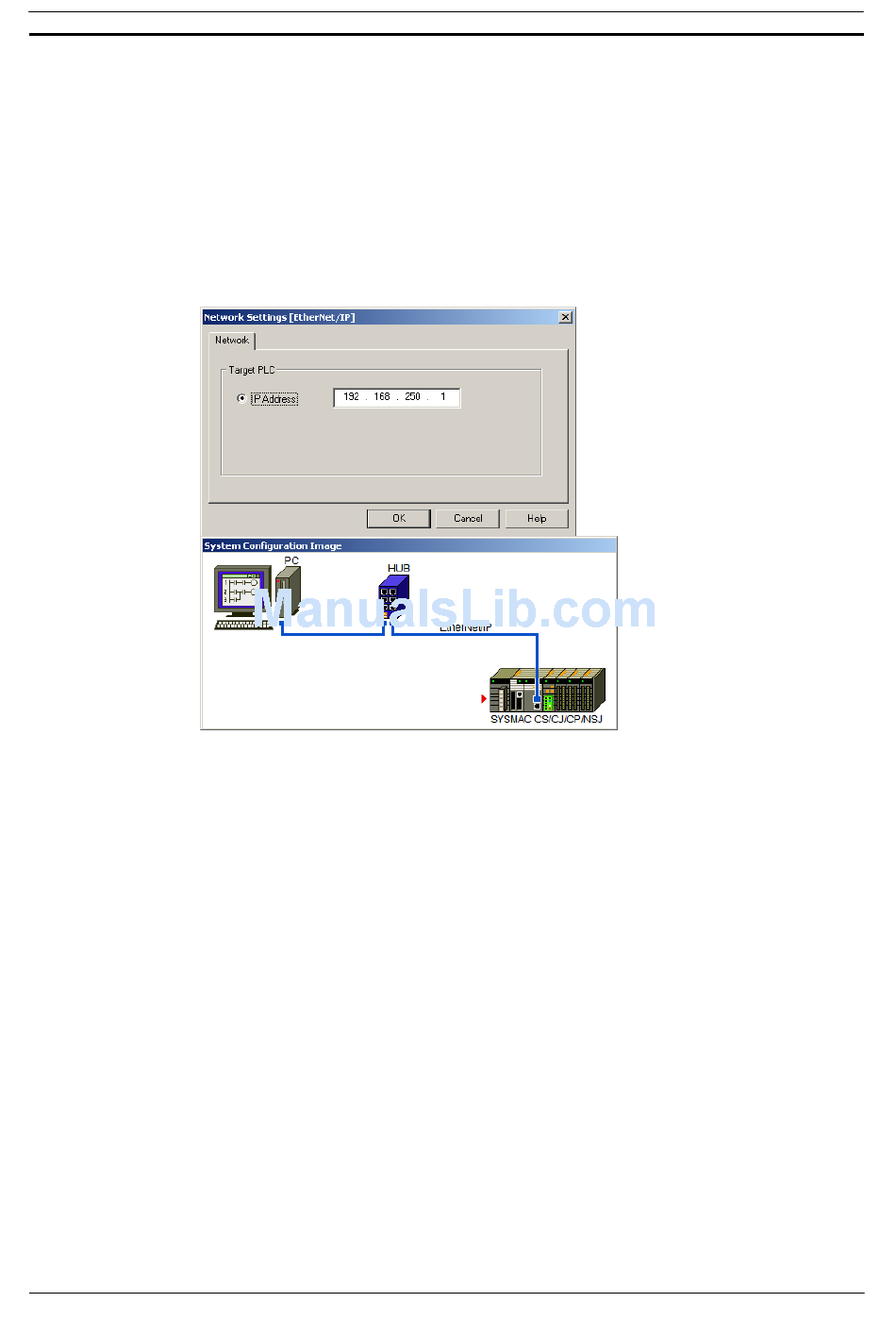

[EtherNet/IP] Dialog Box and System Configuration Image will be displayed.
