Omron CX-PROGRAMMER V9 Operation Manual page 343

PART 2: CX-Server PLC Tools
CHAPTER 10 – Data Links

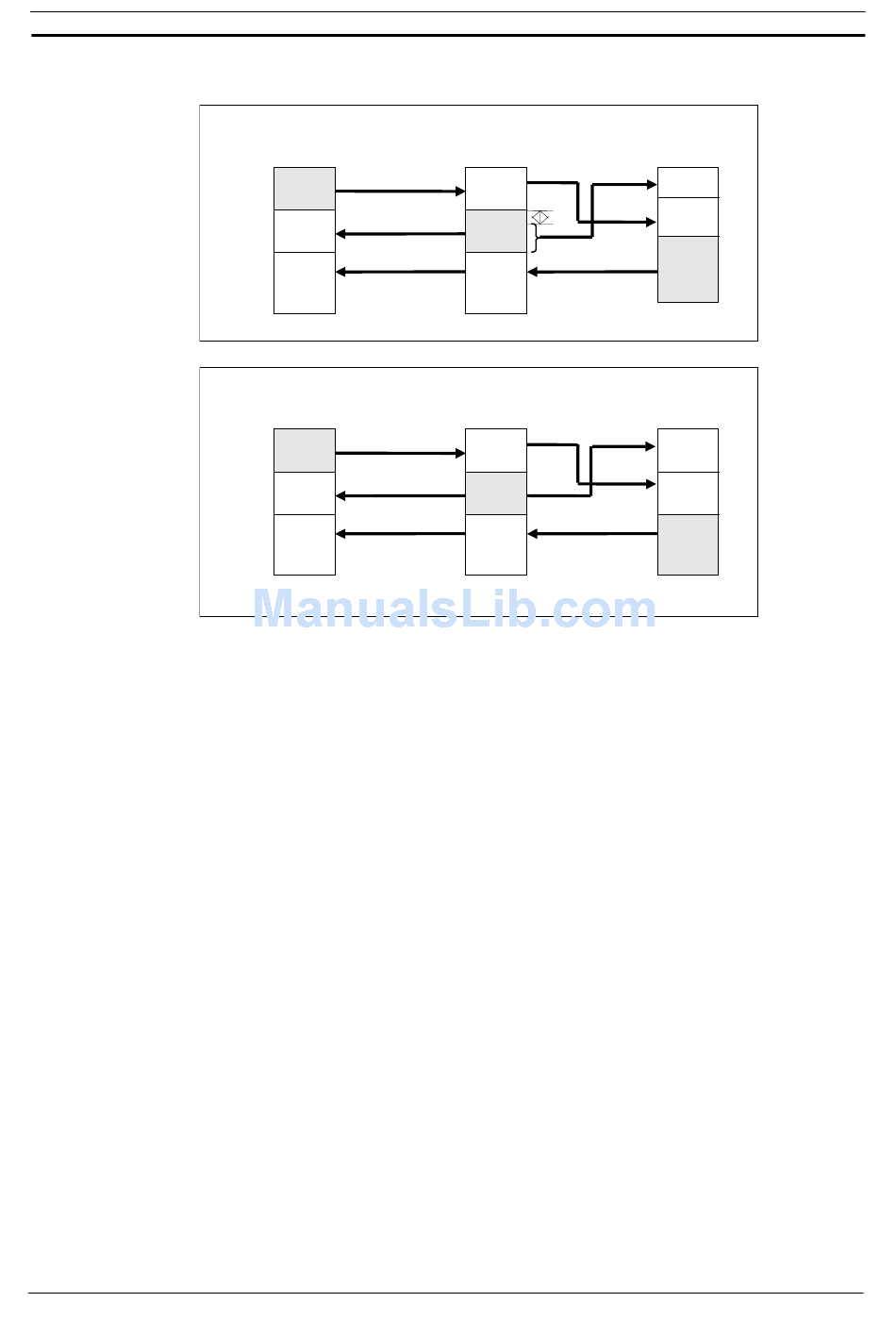

Data Link Setup Example
The refresh sequence for nodes 1 and 2 is as follows: #1, #2, #3. For node 3, the order is #2, #1, #3. Node address
03 does not receive all of the data sent from node address 02. Rather, data from the 20 words (CIO 1240 to CIO
1259) beginning from the start address +10 words (i.e., the offset) is received in IR 300 to IR 319. Other data is
received with no offset.
CX-Server PLC Tools_Page 100
Area 1
Node 1
CIO 1000
Send (#1)
CIO 1030
Receive (#2)
CIO 1060
Receive (#3)
CIO 1100
CS1G
Area 2
Node 1
DM500
Send (#1)
DM530
Receive (#2)
DM560
Receive (#3)
DM600
Node 2
CIO 1200
Receive (#1)
Offset
10 words
CIO 1230
Send (#2)
Size
20 words
CIO 1260
Receive (#3)
CIO 1300
CS1G
Node 2
DM600
Receive (#1)
DM630
Send (#2)
DM660
Receive (#3)
DM700
Node 3
IR 300
Receive (#2)
IR 320
Receive (#1)
IR 350
Send (#3)
IR 390
C200HX
Node 3
DM700
Receive (#2)
DM730
Receive (#1)
DM760
Send (#3)
DM800
OMRON
