PART 2: CX-Server PLC Tools
CHAPTER 11 – Routing Tables

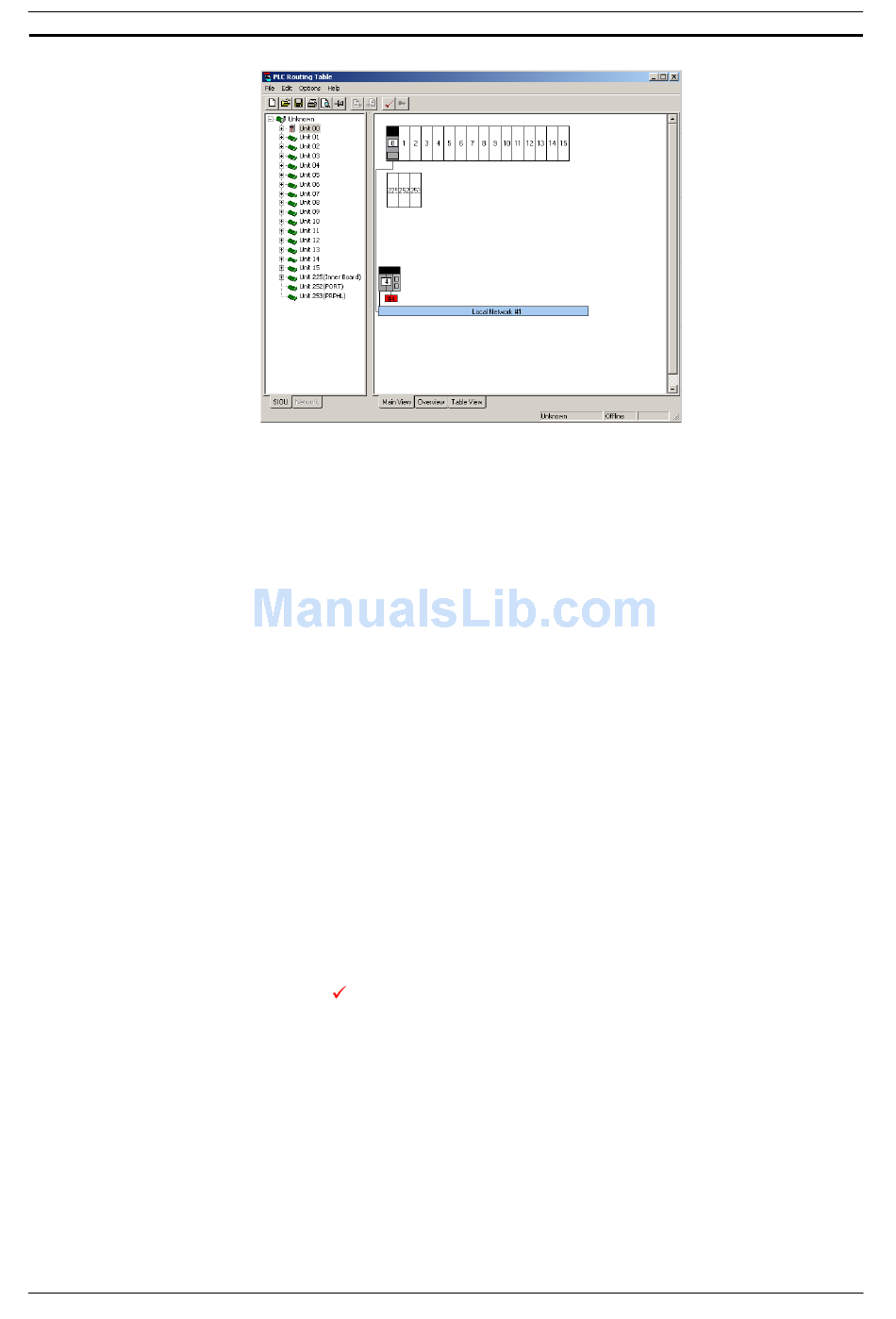

Editing the Routing Table

Open the appropriate routing table from the Network Configuration Tool dialog then use the following procedure
to edit the table.
1, 2, 3...

Error Checking

Use the following procedure to view any validation errors.
1, 2, 3...
CX-Server PLC Tools_Page 138
1. Local Network:
♦
In the Routing Table dialog right click on the Unit to be edited and select the
appropriate option from the pop up menu.
♦
To save the changes select the Save option from the File menu
2. Relay Node:
♦
Right click on the Relay node and select the appropriate option from the pop up
menu.
3. Remote Network:
♦
Right click on the remote network and select the appropriate option from the pop up
menu.
1. Either:
♦
Select Check routing table for errors from the Edit menu in the Routing Table
Editor dialog box.
Or
♦
Click the in the toolbar. A message box will be displayed indicating success or
failure.
