PLC Operating Mode
The PLC can be set to one of four operating modes: Program, Debug (for CV-series PLCs only), Monitor and
Run.
♦ Program Mode. In this mode, the PLC does not execute its program/s. It is used to download
programs/data.
♦ Debug Mode. This mode is available on CV-series PLCs and enables basic debugging of user programs.
♦ Monitor Mode. This mode allows a running program to be edited and monitored while connected during
development. On-line editing must be performed in this mode.
♦ Run Mode. This mode sets the PLC to execute the current program as a live operation. This mode is
generally used for final testing, after a program has been thoroughly tested and debugged. CX-Programmer
cannot write to the PLC while it is in this mode.
Some software operations are possible only in certain modes.
Use the following procedure to change the PLC operating mode.
1, 2, 3...

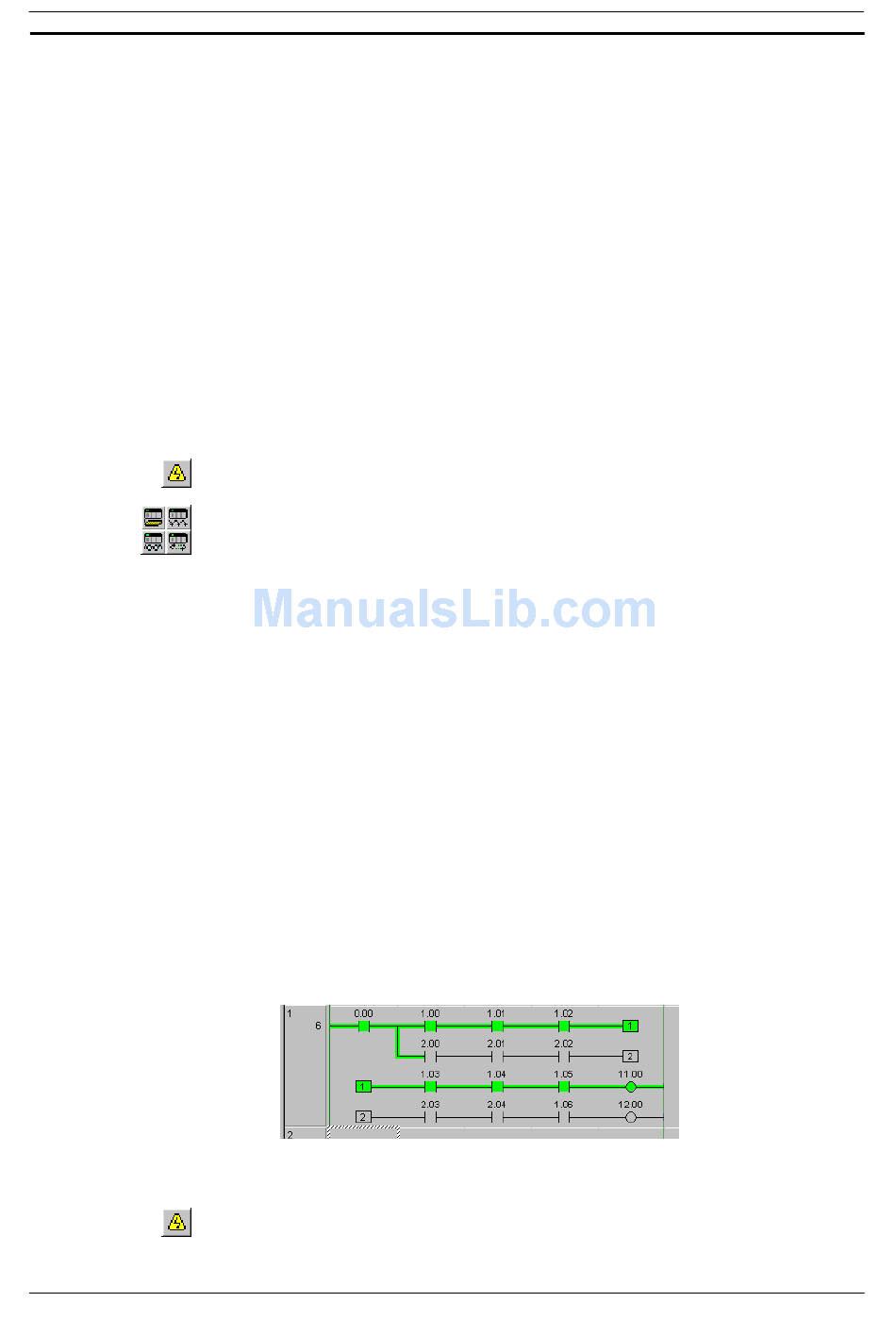

Show in RungWrap
Show in RungWrap allows you to monitor long rungs, which exceeds the right bus-bar, in the length of the
initial position number of the right bus-bar.
This function is used when CX-Programmer is on-line, or in the read-only mode. While online-editing rungs, the
RungWrap will be released and after online-edit is finished, the rungs will be shown as RungWrap again.
CX-Programmer should meet all the following conditions of monitoring rungs in RungWrap.
♦
Show in RungWrap menu is toggled ON.
♦
Show right bus-bar is checked ON (in Options dialog).
♦
The number of Initial position (cells) is set to more than three (do not set Expands to widest rung) in
Options dialog.
♦
The length of rungs in the diagram is exceeding the right bus-bar.
♦
CX-Programmer is online to a PLC or is in read-only mode.
♦
The program is shown as Ladder diagram (not in Mnemonics view or shown as Statement List).
♦
No error is found in the program. (Left bus-bar is not shown in red.)
♦
The program is not online-editing.
Note: When the right bus-bar is not displayed or the number of initial position of the right bus-bar is less
than two, programs cannot be monitored in RungWrap.
Use the following procedure to show the rungs in RungWrap.
1, 2, 3...
1. Select the PLC object from the project workspace.
2. Select the Work On-line button from the toolbar. A confirmation message is displayed:
select the Yes pushbutton to connect to the PLC.
3. Select the Program Mode button, the Debug Mode button, the Monitor Mode button or
the Run Mode button from the toolbar.
1. Select the PLC object from the project workspace.
2. Select the Work On-line button from the toolbar. A confirmation message is displayed:
select the Yes pushbutton to connect to the PLC.
