PART 2: CX-Server PLC Tools
CHAPTER 10 – Data Links
Automatic Settings
Automatic settings can be used for simple data exchanges involving fixed allocations, when all nodes are set for
the same send size and the same data is to be shared among all nodes in order of node address.
Using a Programming Device (such as the CX-Programmer or a Programming Console), set the data exchange
method in the DM parameter area of the startup node.
This section describes how to perform Controller Link and SYSMAC LINK operations from creating data link
tables to starting up the data links.
CX-Server PLC Tools_Page 92

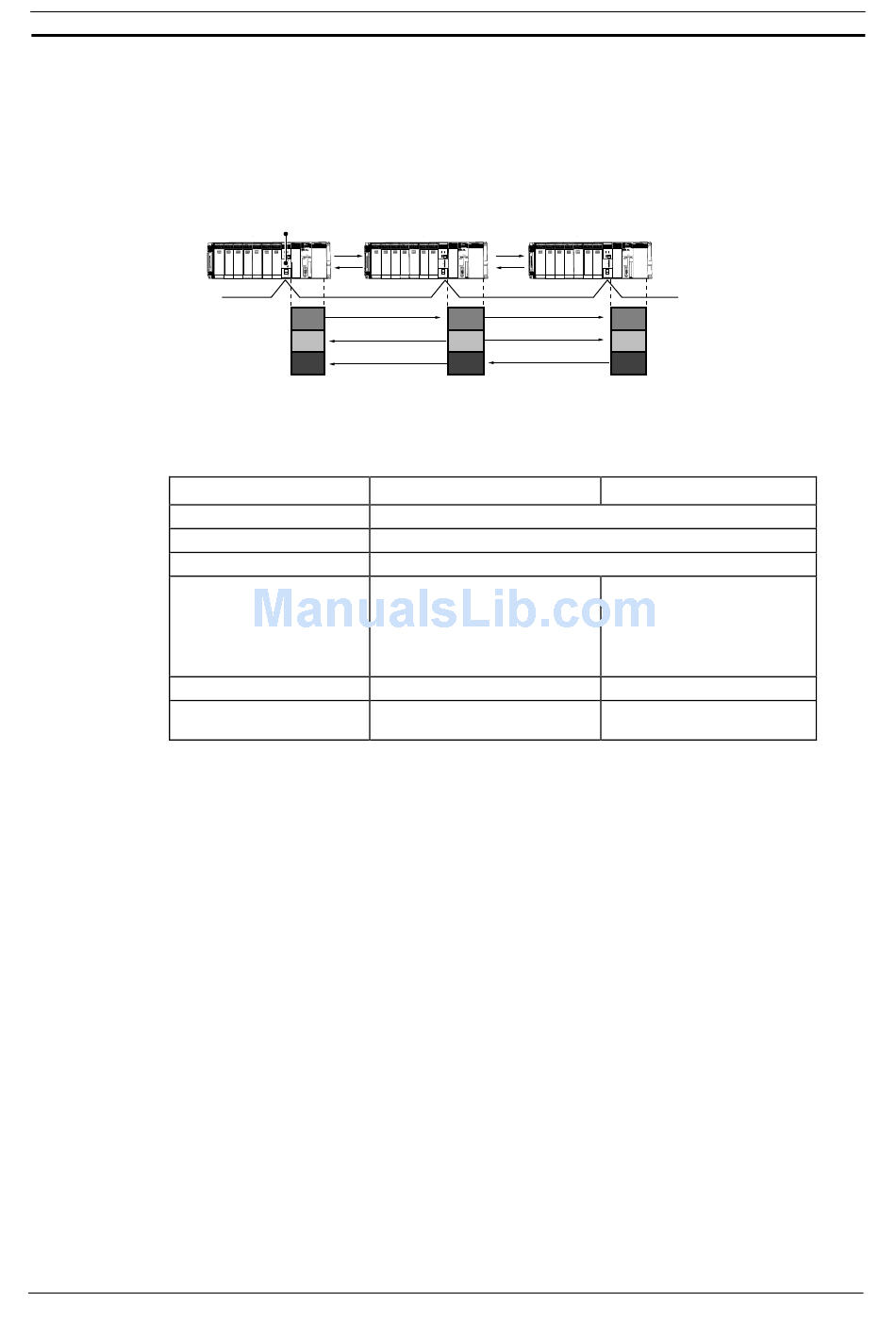

Controller Link
Controller Link
PLC
Unit
Note:
The following table provides a general comparison of automatic setup between
Controller Link and SYSMAC Link.
Item
Node sequence
Receive-only nodes
Send-only nodes
Memory area
Start address
Send size
PLC PLC
Data exchange (shared data)
(I/O Area, LR Area, DM Area, etc.)
Controller Link
Fixed at ascending order.
Can be specified. (Area 1: CIO Area
or LR Area; Area 2: DM Area or EM
Area)
Can be specified.
Same size for all nodes can be
specified.
SYSMAC LINK
Not supported.
Not supported.
Cannot be specified. Fixed as
follows:
CS/CJ/CV Series: Area 1: CIO;
Area 2: DM
C Series: Area 1: LR; Area 2: DM
Cannot be specified.
Same size for all nodes can be
selected from specific patterns.
