SYSMAC LINK Automatic Setup

1 Before executing the following operations, connect online to the PLC that is serving as the startup node.
2 Select Data Link | Setup from the CX-Net. (For local network only, i.e., when network address is 0.)

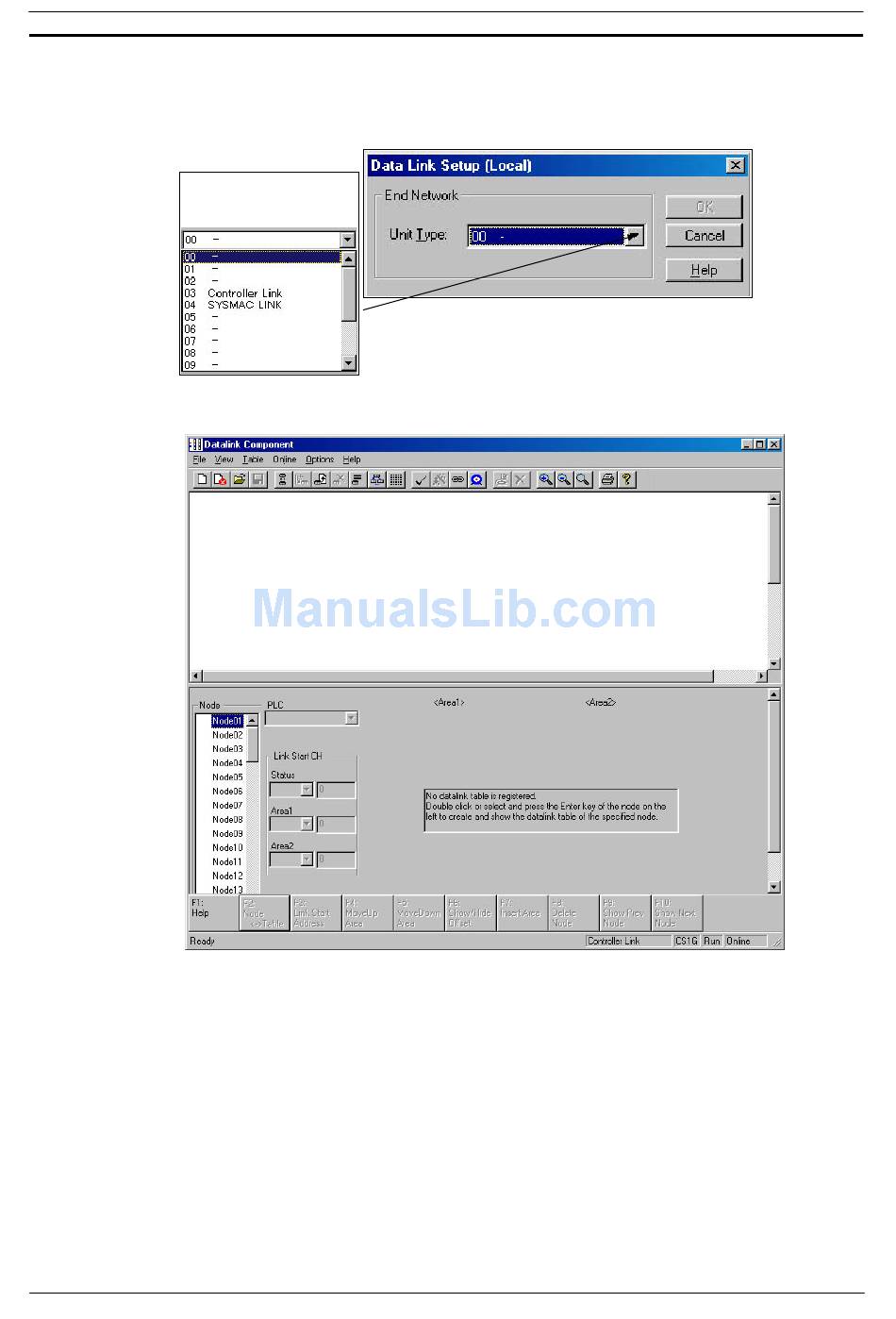

Clicking on this down arrow will
display the Communications
Units mounted to the PLC, as
shown below.
3 Select SYSMAC LINK, and then click the OK button.
The Datalink Component (SYSMAC LINK) window will be displayed.
4 Select Automatic Datalink Setup from the Online menu.
The Automatic Datalink (SYSMAC LINK) dialog box will be displayed.
