♦ Controller Link for OMRON NSB. Controller Link is supported through FinsGateway Version 3 when
installed via CX-Server installation and services are activated. CS-series PLC Optical Controller Link is
supported via FinsGateway Version 3 when Controller Link is installed.
♦ SYSMAC LINK for OMRON NSB. SYSMAC LINK is supported through FinsGateway Version 3 when
installed via CX-Server installation and services are activated.
♦ SYSMAC NET for OMRON NSB. SYSMAC NET communications are supported on Windows NT only
through FinsGateway Version 3 when installed via CX-Server installation and services are activated.
♦ FinsGateway CPU unit connection and Gateway connection combinations.
♦ DeviceNet The unit for Device Net Communications is available for all CS1/CJ1 series PLCs and the
CPM2*-S* PLCs.
♦ CS1 Board for OMRON CS1 PCI board. PCI Board is supported through FinsGateway version 3.12 when
installed via CX-Server installation and services are activated.
♦ USB: USB can be selected when using a CP-series PLC or CJ2 PLC. Toolbus communications using a USB
cable are possible with a CP-series PLC. EtherNet/IP communications using a USB cable are possible with
a CJ2 PLC.
♦ Toolbus (using the USB port): Uses the same communications settings as for the CS1/CJ1 Toolbus.
Toolbus communications can be used with the CJ2 PLCs.
♦ EtherNet/IP: EtherNet/IP communications can be performed using the Ethernet port. EtherNet/IP
communications can be used only with CJ1 or CJ2 PLCs.
Device Type Settings

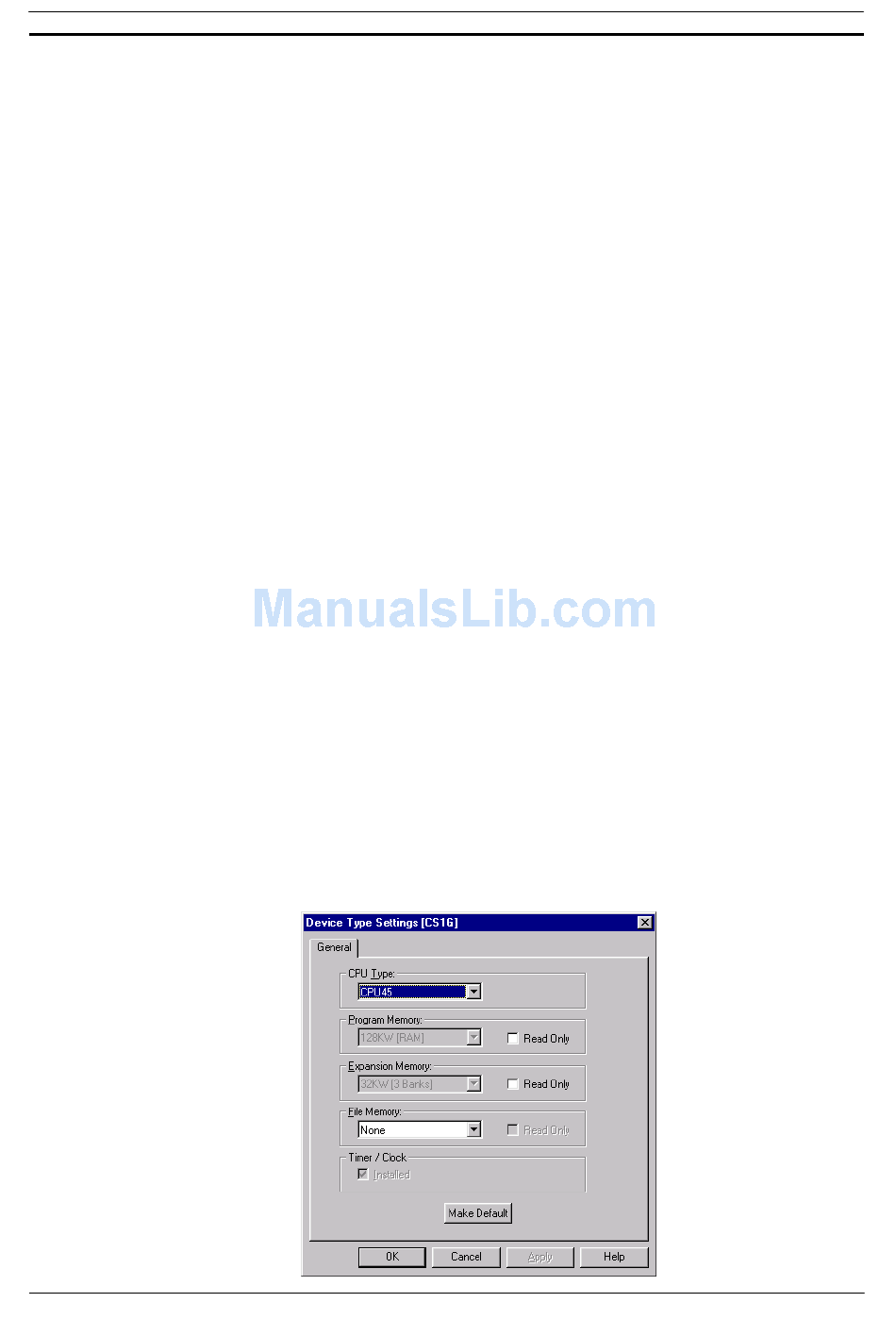

The Device Type Settings dialog allows further configuration of the selected PLC. This is important since the
behavior of the PLC depends upon details such as CPU type (e.g. the network options available to a C200HS
require CPU31 or CPU33 setting to be specified). Device type settings cannot be adjusted for an open PLC or a
gateway PLC.
The General tab of the Device Type Settings dialog allows:
♦ Selection of CPU Type;
♦ Allocation of Program Memory or protection from writing;
♦ Allocation of Expansion Memory or protection from writing;
♦ Allocation of File Memory or protection from writing;
♦ Installation of a Timer/Clock.
Revision 2.0
Note: The following network types cannot be run on Windows Vista or Windows 7.
- Controller Link for OMRON NSB. Controller Link
- SYSMAC LINK for OMRON NSB. SYSMAC LINK
- SYSMAC NET for OMRON NSB. SYSMAC NET
- CS1 Board for OMRON CS1 PCI board
- Fins Gateway
