Defining EXT3-21-XR-TR HDMI &
USB 2X1 Switcher Extender
This section defines EXT3-21-XR-TR.
Configuring the device as transmitter (Tx) or receiver (Rx, default) is done via the front panel
button or the embedded webpages settings (see
on page 33).
# Feature
IR 3.5mm Mini Jack Connector
1
USB-A 3.1
2
HDMI IN Connector
3
USB-B 3.1 HOST Connector
4
HDMI and HDBT LEDs
5
Rx INPUT SELECT Button
6
DISPLAY ON Button
7
ACTIVE HOST LED
8
ACTIVE Rx LED
9
►
PoE LED
10
NET LED
11
EXT3-21-XR-TR – Defining EXT3-21-XR-TR HDMI & USB 2X1 Switcher Extender

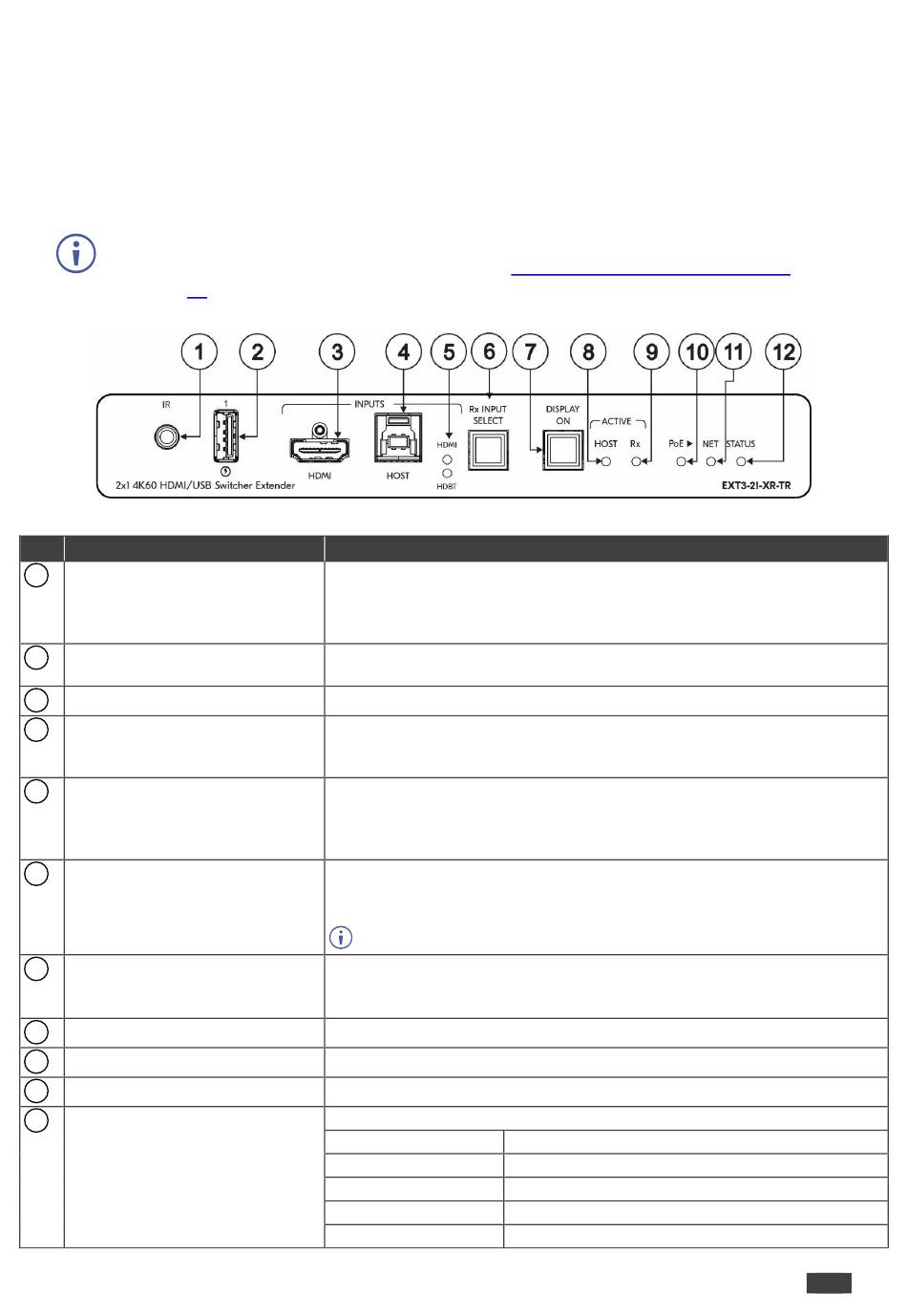

Figure 1: EXT3-21-XR-TR HDMI & USB 2X1 Switcher Extender Front Panel
Function
Connect to an external IR emitter to control a local IR-controlled device
from the remote extender (for example, EXT3-21-XR-TR).
Connect to an IR sensor to control a remote IR-controlled device connected
to the remote extender side (for example, EXT3-21-XR-TR).
Connect to a USB local peripheral device (for example, a USB camera, a
soundbar, microphone and so on).
Connect to an HDMI source.
Connect to a USB host (for example, a laptop) to communicate with the
USB peripheral devices (for example, a smart board) connected to USB
device ports on either the transmitter or the receiver sides of the extender.
Each input LED, lights green when a source is selected and active, blue
when a source is selected but not active, and Off when a source is not
selected.
Note: On transmitter mode, HDBT LED is always Off.
Press to select an input.
Press and hold for a minimum of 10 seconds to switch between Rx↔Tx
mode.
Switching between modes initiates Factory Reset.
Press to toggle turning the display on and off.
Button LED lights ON after sending a DISPLAY ON message.
Button LED lights OFF after sending a DISPLAY OFF message.
Lights orange when local USB host is active.
Lights blue on active receiver mode.
Lights green when the device provides PoE to a connected device.
Indicates networking status:
LED Color
Dark
Lights green
Flashes green for 60s
Flashes red/green
Setting Extender Operation Modes
Indicates
No IP address acquired.
A valid IP address has been acquired.
A means to identify the device in a system.
IP fallback address has been acquired.
