Settings Networking Properties
By default, DHCP is set to on. The IP address shows the actual IP address acquired from the
DHCP server, or the auto-acquired fallback IP address when there is no DHCP server
detection.
To configure network settings:
1. Go to the Device > General page
2. Select the Network tab.
The network page appears.
3. Change settings as needed.
If required, Set to DHCP (default) or static IP address resolution modes.
4. When in Static IP mode, perform the following actions:
▪
Change the IP address.
▪
Change the Mask address.
▪
Change the Gateway address.
5. Click SAVE.
Network settings are defined.
EXT3-21-XR-TR – Using Embedded Web Pages

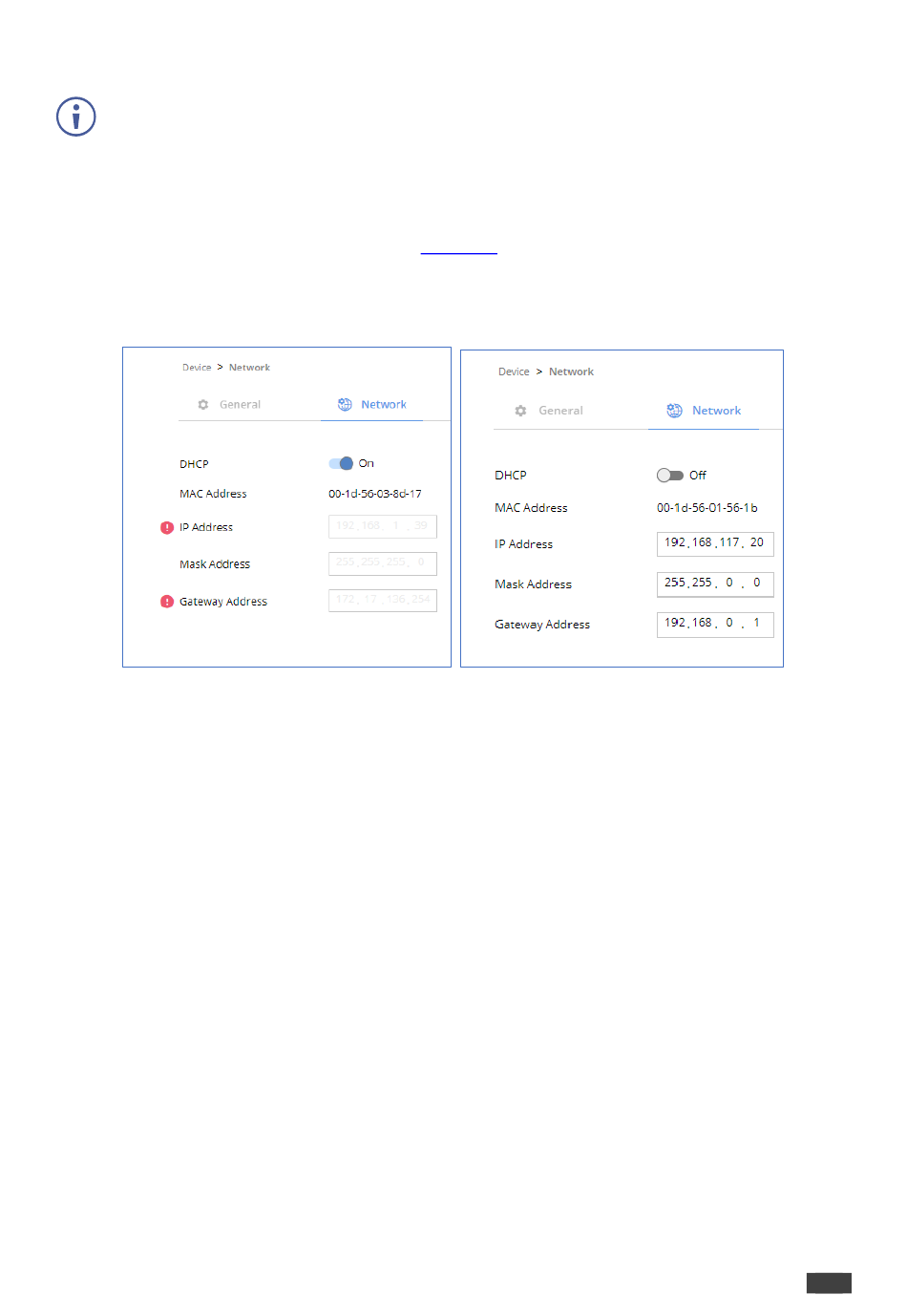

Figure 27: Device Settings > Network Tab (DHCP On / DHCP Off)
(Figure 23).
