Setting Extender Operation Modes
This section applies to both Tx (transmitter) and Rx (receiver) modes unless otherwise noted.
To switch between extender Tx or Rx modes
1. Go to the Device>General tab.
2. Select either Rx or Tx.
3. Click Save. A device Reset message appears.
4. Click CONTINUE. The extender device is switching operation modes.
This can take up to 60 seconds.
5. The extender device mode indication, at the top bar, shows the newly selected mode.
EXT3-21-XR-TR – Using Embedded Web Pages

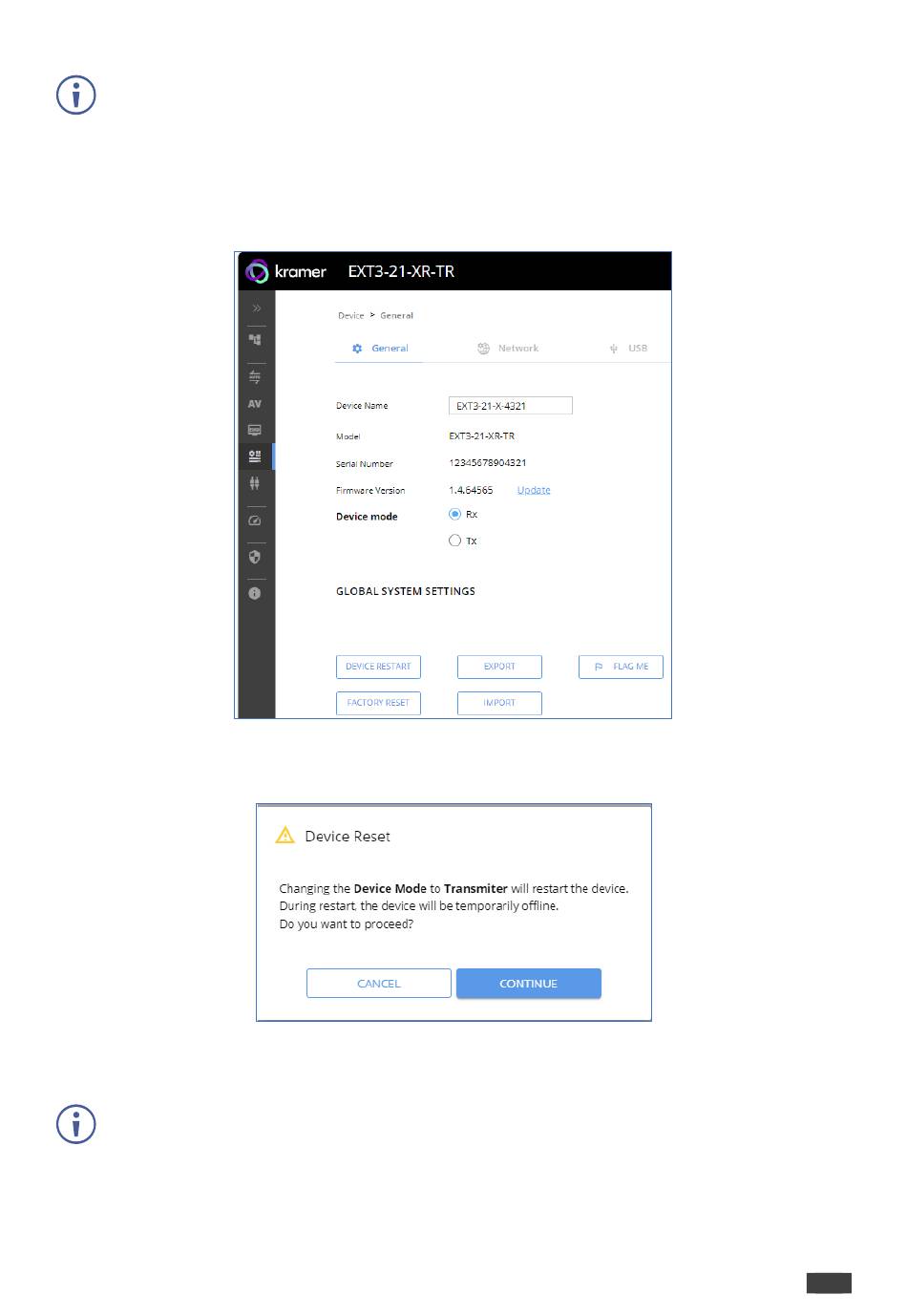

Figure 24: Device Tab: Switching Rx / Tx Operation Mode
Figure 25: Device Reset Warning Message
