Step 1: Check what's in the box
TP-600TRxr
4K60 HDMI/USB Extender
1 Power adapter and cord

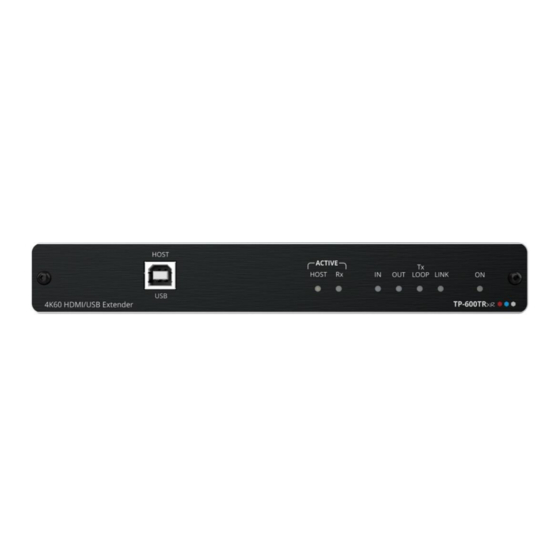

Step 2: Get to know your TP-600TRxr
The extender device functions as a transmitter or a receiver side per DIP-switch setting (see
outputs).
#
Feature
1
HOST USB B 2.0 Connector
2
ACTIVE HOST LED
3
ACTIVE Rx LED
4
IN LED
5
OUT LED
6
TX LOOP
7
LINK LED
8
ON LED
9
HDBT RJ-45 Connector
10
HDMI TX IN Connector
11
HDMI Rx OUT/Tx LOOP Connector
12
USB A 2.0 Fast-Charging Connectors
(3)
13
IR 3.5mm Mini Jack Connector
14
RS-232 3-pin Terminal Block
15
ETHERNET RJ-45 Connector
16
SETUP 4-way DIP-switch
17
12V DC Power Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
TP-600TRxr Quick Start
TP-600TRxr Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/TP-600TRxr
upgrades are available.
Connect to the USB host (for example, a laptop) to communicate with the USB
peripheral devices (for example, a smart board) connected to USB device ports on
either the transmitter or the receiver sides of the extender (see
inputs and
Lights orange when the USB host side is active
Lights green when the extender receiver function is active
Lights blue when an active HDMI input signal is detected on HDMI IN.
Lights blue when an output acceptor device is connected.
Transmitter mode
Receiver mode
Lights green when the HDBT active link connection is established.
Lights green when the device receives power.
Connect to the HDBT RJ-45 connector on a paired receiver/transmitter device (for
example, a second
Transmitter mode
Receiver Mode
Transmitter mode
Receiver mode
Connect to the USB local peripheral devices (for example, a USB camera, a
soundbar, microphone and so on).
Connect to an external IR emitter to control a local IR-controlled device from the
remote extender (for example, TP-600TRxr).
Connect to an IR sensor to control a remote IR-controlled device connected to the
remote extender side (for example, TP-600TRxr).
Connect to a controller device (for example, SL240C) to control a remote device via
serial connection (for example, the remotely connected PTZ USB camera).
Connect to LAN.
Sets the device behavior (see
Connect to the power supply.
TP-600TRxr
for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Bracket set
Function
outputs).
Lights blue an active signal is transmitted on the Tx LOOP port.
N/A
TP-600TRxr
device).
Connect to an HDMI source.
N/A
Connect to a local acceptor.
Connect to an HDMI acceptor.
Step 4:Connect inputs and
P/N: 2 9 0 0 - 3 0 1 4 9 9 QS
4 Rubber feet
1 Quick start guide
Step 4:Connect inputs and
Step 4:Connect
outputs).
Rev: 1
