To set the HDBT extension mode:
1. Go to the Control Gateway page. The Serial Ports tab appears.
Figure 30: RS-232 Device Control
2. Enable HDBT Extension Mode to ON (OFF is default mode).
▪
EXT3-21-XR-TR
between RS-232 panel port and HDBT RS-232 channel.
In extension mode, no configuration of port properties and functions are available
EXT3-21-XR-TR – Using Embedded Web Pages
is set to operate as an RS-232 extender, with end-to-end extension
Kramer Electronics Ltd.

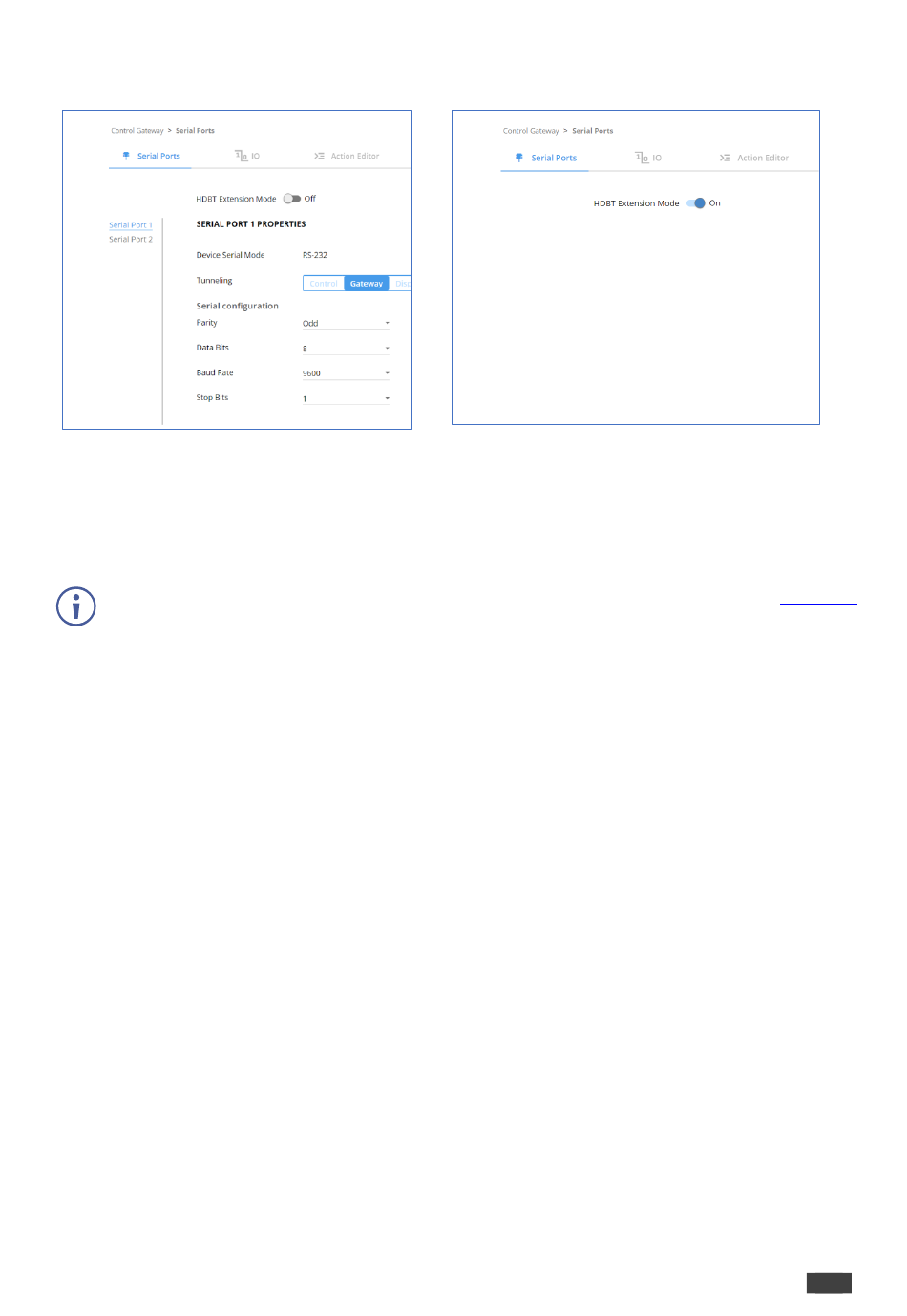

Figure 31: HDBT Extension Mode
(Figure
31).
40
