- Page 1 USER MANUAL MODELS: EXT3-XR-TR EXT3-TR 4K60 HDMI/USB Extender P/N: 2900-301615 Rev 1 www.kramerav.com...
-
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining EXT3-XR-TR and EXT3-TR Mounting EXT3-XR-TR Connecting the 4K60 HDMI/USB Extender Connecting EXT3-XR-TR and EXT3-TR Connecting to EXT3-XR-TR via RS-232 Wiring RJ - 45 Connectors Setting the DIP-Switches Technical Specifications... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/il/quality/environment. -
Page 5: Typical Applications
• Corporate – Hybrid and online meetings. • Education – Hybrid and online learning and training. • Any AV, Ethernet (EXT3-XR-TR only) and USB room extension applications such as conference rooms, boardrooms, and training facilities. EXT3-XR-TR, EXT3-TR – Introduction... -
Page 6: Defining Ext3-Xr-Tr And Ext3-Tr

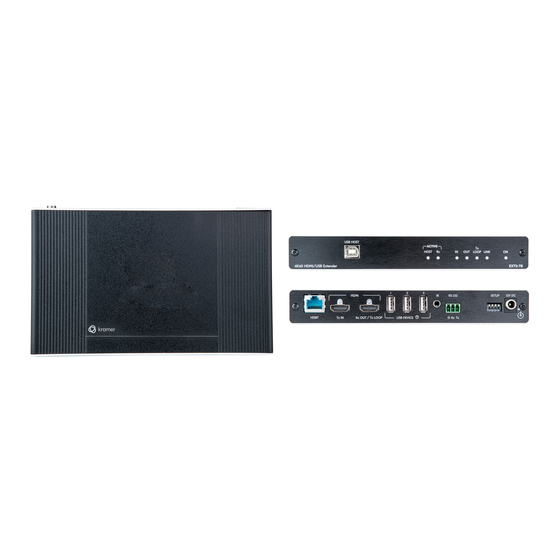

The extender device functions as a transmitter or receiver as defined by the SETUP DIP-switch 1 setting on the rear panel (see Setting the DIP-Switches on page 10). Figure 1: EXT3-XR-TR 4K60 HDMI/USB Extender Front Panel Figure 2: EXT3-TR 4K60 HDMI/USB Extender Front Panel Feature Function SETUP 2-way Set the HDBT Range Mode. - Page 7 Kramer Electronics Ltd. Figure 3: EXT3-XR-TR 4K60 HDMI/USB Extender Rear Panel Figure 4: EXT3-TR 4K60 HDMI/USB Extender Rear Panel Feature Function HDBT RJ-45 Port Connect to the HDBT RJ-45 connector on a paired receiver/transmitter device (for example, a second EXT3-XR-TR device).
-
Page 8: Mounting Ext3-Xr-Tr
Attach the rubber feet and place the unit on a flat surface. • Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more information go to www.kramerav.com/downloads/TP-600TRxr. EXT3-XR-TR, EXT3-TR – Mounting EXT3-XR-TR... -
Page 9: Connecting The 4K60 Hdmi/Usb Extender
(as described in this section). You can also connect the device to a different unit. For example: • Connecting EXT3-XR-TR that is set as a transmitter to the Kramer TP-590R receiver. • Connecting a transmitter (for example, the Kramer... -
Page 10: Connecting Ext3-Xr-Tr And Ext3-Tr
USB 1, a soundbar to USB 2 and a smart board to USB 3). note that some USB devices, for example, the camera, require the USB 1 disconnection function. USB devices can be connected to both the transmitter and receiver sides, as necessary. EXT3-XR-TR, EXT3-TR – Connecting the 4K60 HDMI/USB Extender... - Page 11 ▪ On the EXT3-XR-TR transmitter side, connect a room controller (for example, the Kramer SL-240C with Kramer Control) to the IG LAN RJ-45 port ▪ On the EXT3-XR-TR receiver side, connect the IG LAN RJ-45 port to the smart Send IP commands via the room controller to the smart TV via LAN.
-
Page 12: Connecting To Ext3-Xr-Tr Via Rs-232
Green Brown / White Brown Setting the DIP-Switches All changes in the SETUP rear panel DIP-Switches apply immediately, on-the-fly (no need to power cycle the device), except for DIP-switches 1 and 2. EXT3-XR-TR, EXT3-TR – Connecting the 4K60 HDMI/USB Extender... - Page 13 DIP 2 State Description Off (up) Off (up) Standard range mode. Off (up) On (down) Ultra-long range mode. On (down) Off (up) For future use. On (down) On (down) For future use. EXT3-XR-TR, EXT3-TR – Connecting the 4K60 HDMI/USB Extender...
-
Page 14: Technical Specifications
On a 3.5mm mini jack for IR link extension 1 RS-232 On a 3-pin terminal block for serial link extension Extension Line Reach Up to 100m (330ft), when using Kramer HDBaseT cables Standards Compliance HDBaseT 3.0 Video Max Data Rate... -
Page 15: Ext3-Tr Specifications
Shipping Dimensions (W, D, 34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2") Net Weight 0.55kg (1.2lbs) Shipping Weight 1.12kg (2.5lbs) approx. Accessories Included Power adapter and cord Specifications are subject to change without notice at www.kramerav.com EXT3-XR-TR, EXT3-TR – Technical Specifications... - Page 16 This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller.
- Page 17 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
