2. Select the Relays tab. The Relays tab opens
3. Select:
▪
Relay port 1: Open (default) or Close
▪
Relay port 2: Open (default) or Close
4. Click Save.
The Relays are set.
Associating Commands to DISPLAY ON/OFF (Custom control)
Configure CEC, RS-232 or IR commands to send via DISPLAY ON (Custom Control) button.
The embedded webpages refer to DISPLAY ON as Custom Control. This will be updated in
the next FW revision.
CEC Command(s) DISPLAY ON/OFF works as follows:
• For Tx: HDMI input CEC pass-thru over HDBT output.
• For Rx: HDMI/HDBT input CEC pass-thru to HDMI output.
To add an action:
1. In the navigation pane, select Control Gateway. The Serial Ports tab opens.
EXT3-21-XR-TR – Using Embedded Web Pages

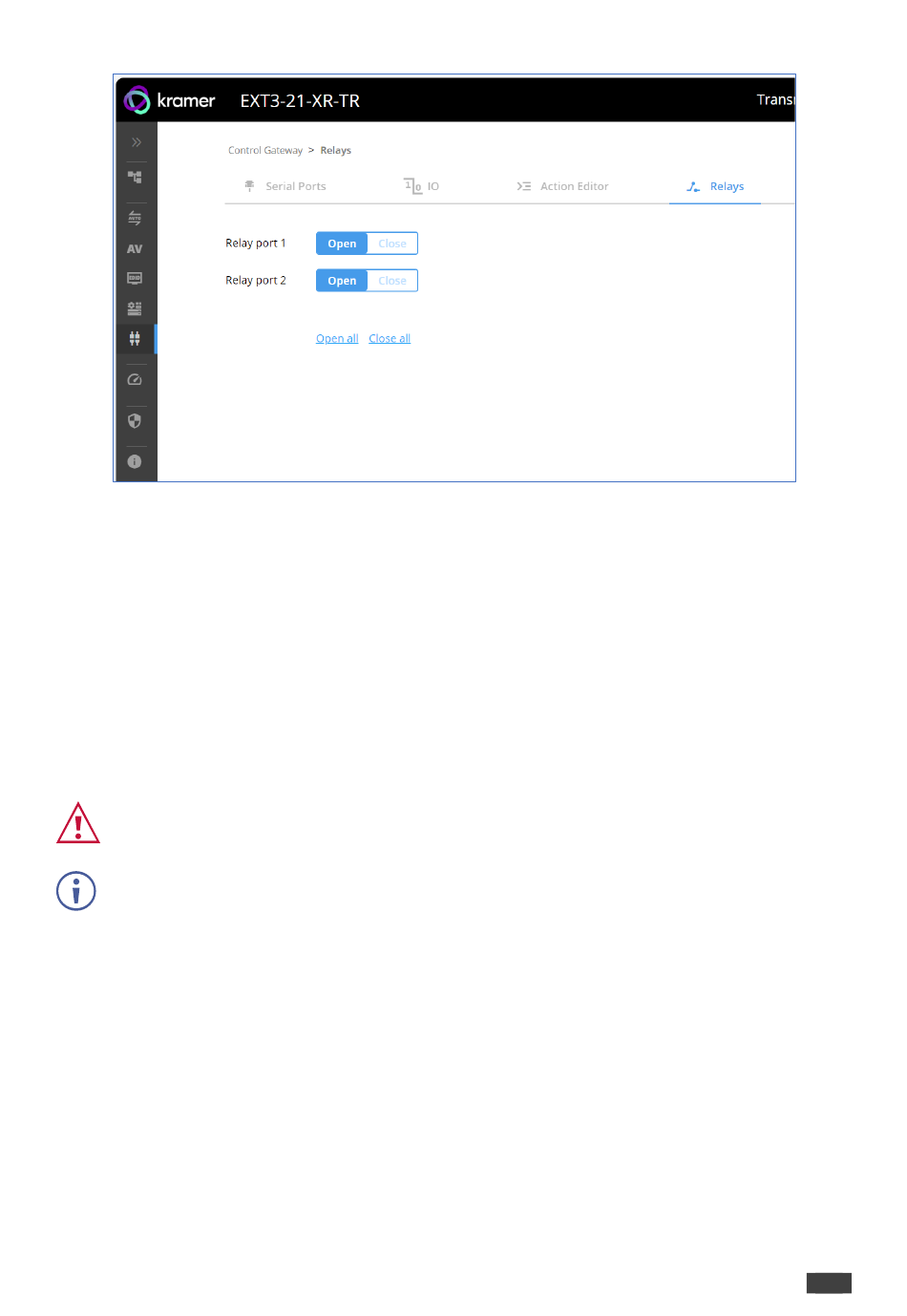

Figure 42: Relays Tab- Set the Relay Actions
