Kramer PT-871xr Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

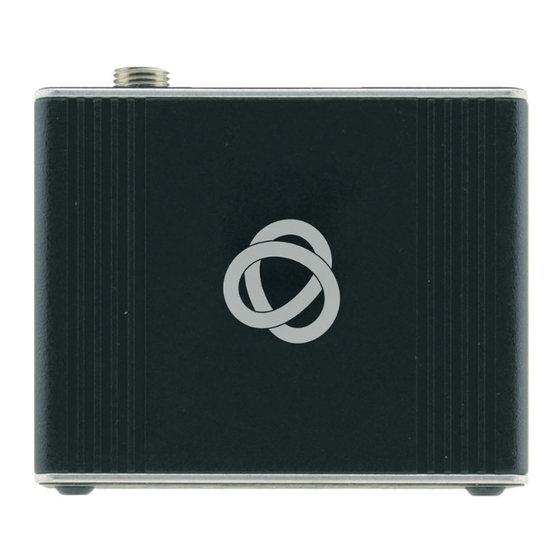

PT-871xr HDMI 4K Line Transmitter
1 Power adapter and cord
IMPORTANT NOTICE!
We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.
Step 2: Get to know your PT-871xr
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
# Feature
1 IN
LED Indicators OUT
2
3 ON
4 HDMI™ IN Connector
5 SETUP DIP-switches
6 DGKat-2.0 OUT RJ-45 Connector
7 12V DC Connector
Step 3: Install the PT-871xr
Install PT-871xr using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/PT-871xr).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/PT-871xr).
PT-871xr Quick Start
PT-871xr Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/PT-871xr
upgrades are available.
Function
Lights when an active source is connected to HDMI IN.
Lights when an active acceptor is connected to HDMI OUT on the receiver (for example,
WP-872xr ).
Lights when power is connected to the device.
Connect to an HDMI source.
Set the operation DIP-switches. Both DIP-switches are set to OFF (up) by default.
Always set the DIP-switches identically on transmitter and receiver devices.
DIP-switch 1:
Compression Options
DIP-switch 2:
Compression Setup
Connect to the DGKat-2.0 IN connector on the receiver (for example,
pair cable.
Connect the power adapter to one of the devices.
PT-871xr for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
rd
party shielded CAT-6A cables, both ends of the
OFF (up) – Standard compression level.
ON (down) – High compression level for additional range extension.
OFF (up) – Enable compression (mandatory).
ON (down) – For future use.
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 3 4 QS
1 Bracket set
WP-872xr
) using twisted
Rev: 1
