Protocol 3000

Kramer devices can be operated using Kramer Protocol 3000 commands sent via serial or
Ethernet ports.

Understanding Protocol 3000

Protocol 3000 commands are a sequence of ASCII letters, structured according to the
following.
•
Command format:
Prefix Command Name
# Command
•
Feedback format:
Prefix Device ID
~ nn
•
Command parameters – Multiple parameters must be separated by a comma (,). In
addition, multiple parameters can be grouped as a single parameter using brackets ([
and ]).
•
Command chain separator character – Multiple commands can be chained in the
same string. Each command is delimited by a pipe character (|).
•
Parameters attributes – Parameters may contain multiple attributes. Attributes are
indicated with pointy brackets (<...>) and must be separated by a period (.).

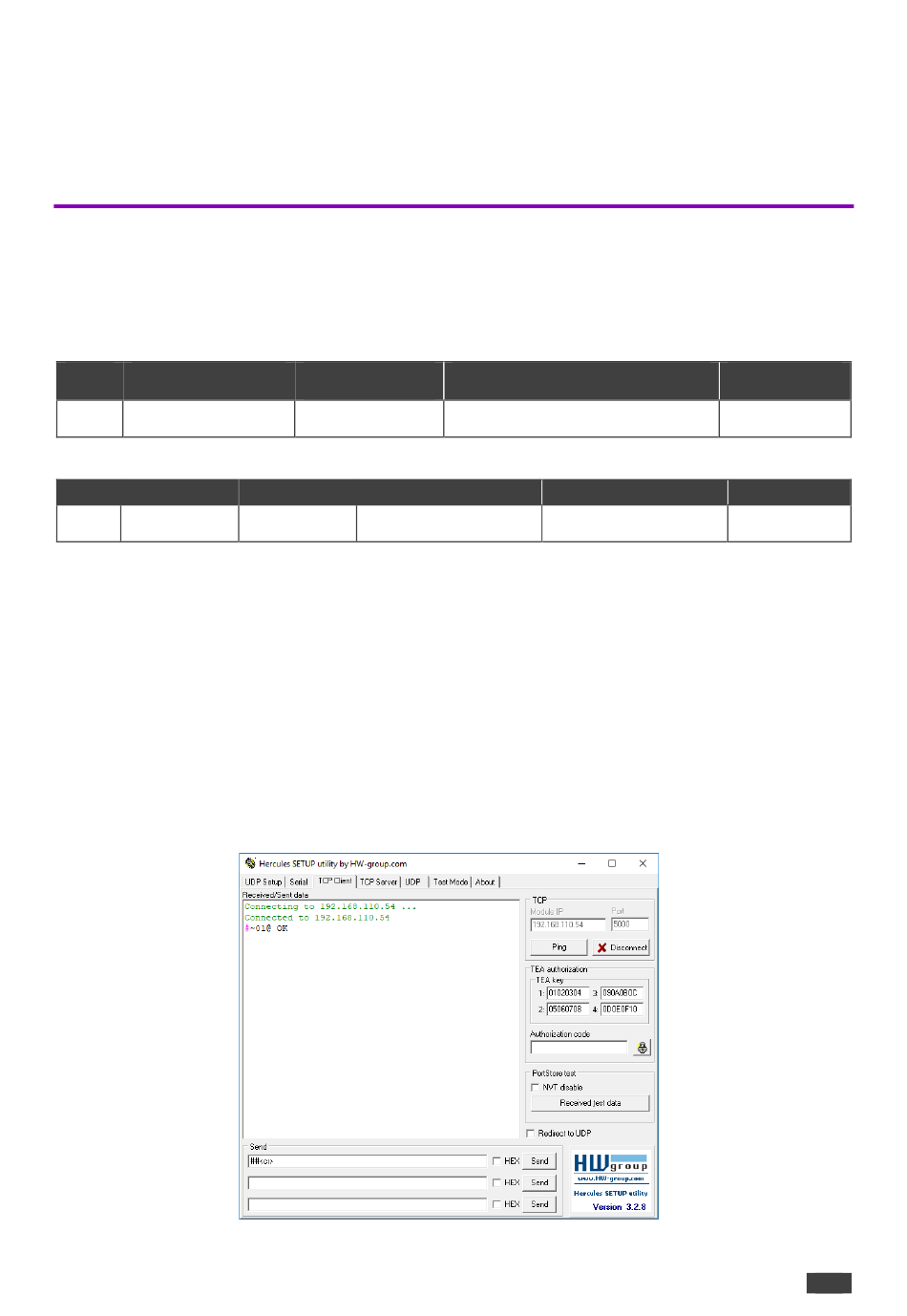

The command framing varies according to how you interface with EXT3-21-XR-TR. The
following figure displays how the # command is framed using terminal communication
software (such as Hercules):
EXT3-21-XR-TR – Protocol 3000
Constant (Space)

Constant Command Name
@ Command
Parameter(s)
Parameter
Parameter(s)
Parameter
Kramer Electronics Ltd.
Suffix
<CR>
Suffix
<CR><LF>
