AV Routing
To route the video inputs to the outputs:
1. Go to the Routing Operation page.
2. Perform the following functions:
▪
Click an Input/Output cross-point (see
A green light on a button indicates a connected source/acceptor.
▪
Click
▪
Click
An input is routed to the output.
USB Routing
To Select Local Host as Active or Remote Host as Active
Whether in Tx or Rx mode, selecting the correct button in the embedded webpage determines
if your local or remote host is active.
USB standard compliance allows only a single active USB host (local or remote).
EXT3-21-XR-TR – Using Embedded Web Pages

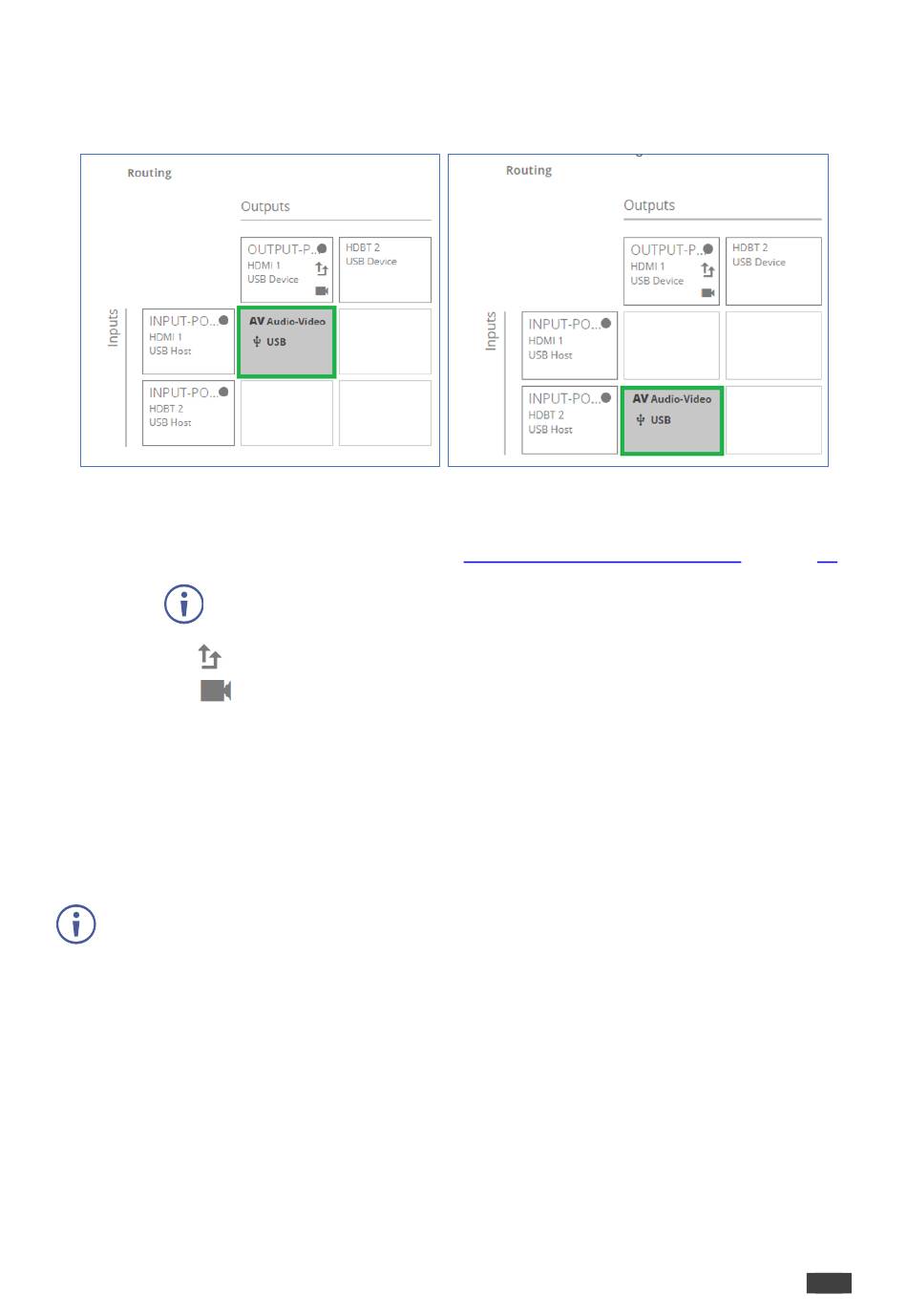

Figure 13:Rx Mode Routing Page
to activate USB following video coupled routing.
to stop/play the output signal.
Routing AV and USB Host Signals
Kramer Electronics Ltd.
on page 26).
