Defining and Testing Commands via Action Editor
Use action editor to create and test control commands via CEC, UART, IR or RELAY control
interfaces. You can create up to 5 commands.
To add an action:
1. In the navigation pane, select Control Gateway. The Serial Ports tab opens.
2. Select the Action Editor tab. The Action Editor appears.
3. Select a command name on the left side of the window.
4. Change the command name, if required.
5. Select the port (CEC, UART, RELAY or IR).
6. Enter the appropriate command line, such as one of the following Display On sample
commands:
▪
For CEC
The command to power on a TV can vary depending on the specific TV model
and manufacturer. However, above is a common example of a standard
command to power on a TV.
▪ For RS232 – PON
▪
For RELAY - <RelayNum>, <RelayState>
▪
For IR -
1,1,TVON,1,1,1,0000,006f,0022,0002,014d,00a6,0015,0015,0014,0015,0013,0014,00
15,0015,0014,0014,0014,0014,0015,0015,0014,003e,0016,003d,0014,003f,0014,003
e,0015,003f,0013,003f,0014,003e,0015,003f,0013,0016,0013,0015,0014,0015,0013,0
016,0013,003f,0013,003e,0015,0015,0013,003e,0015,003f,0013,003f,0013,003e,001
5,003e,0015,0015,0014,0015,0013,003f,0014,0015,0013,0014,0015,05c9,014d,0053,
0015,0e0a
EXT3-21-XR-TR – Using Embedded Web Pages

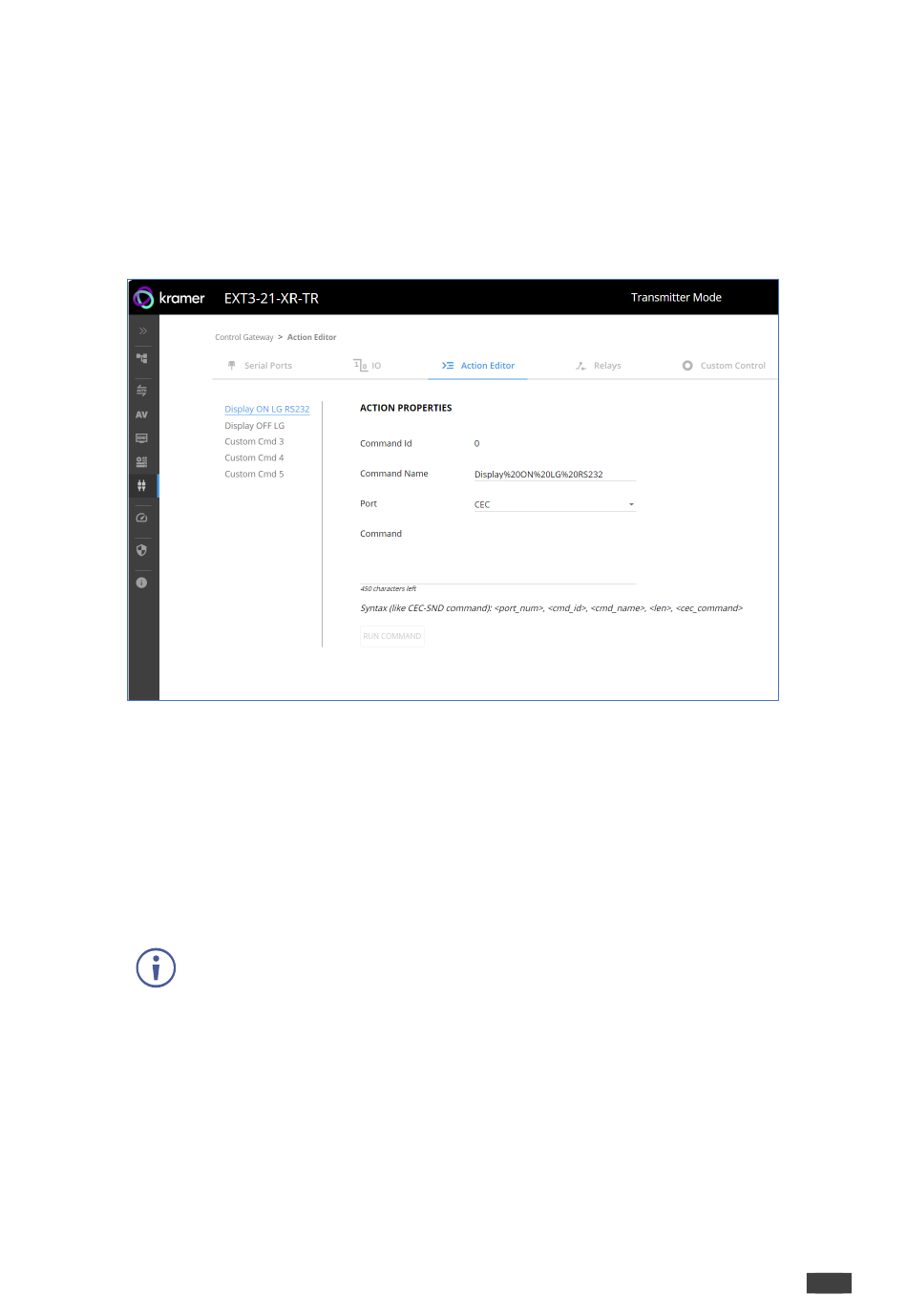

Figure 40: Action Editor Tab
–
1,1,tv-on,2,E004
