s
can to go to website
Step 1: Check what's in the box
EXT3-H-T Transmitter / EXT3-H-R Receiver

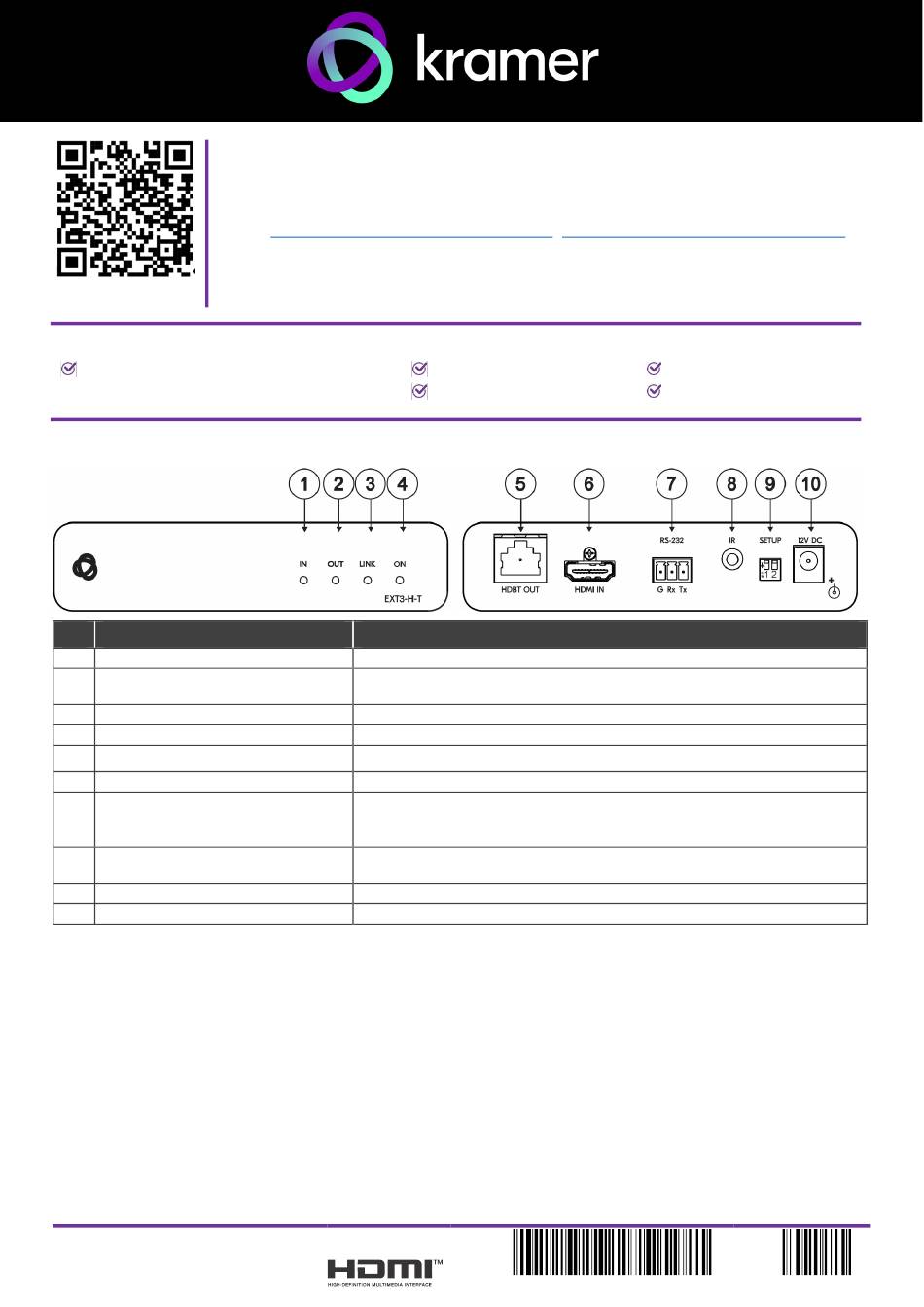

Step 2: Get to know your EXT3-H-T
#
Feature
1
IN LED
2
OUT LED
3
LINK LED
4
ON LED
5
HDBT OUT RJ-45 Connector
6
HDMI IN Connector
7
RS-232 (G, Rx, Tx) 3-pin Terminal
Block Connector
8
IR 3.5mm Mini Jack Connector
9
SETUP DIP-switches
10
12V DC Power Connector
EXT3-H-T / EXT3-H-R Quick Start
EXT3-H-T / EXT3-H-R Quick Start Guide
This guide helps you install and use your EXT3-H-T / EXT3-H-R for the first time.
Go to
http://www.kramerav.com/downloads/EXT3-H-T
to download the latest user manual and check if firmware upgrades are available.
Function
Lights blue when an active source device input signal is detected.
Lights blue when an active, far-end sink (acceptor) connection is detected via the
HDBT link.
Lights green when an HDBT link is established with the HDBaseT receiver.
Lights green when the device receives power.
Connect to a receiver (for example, EXT3-H-R).
Connect to an HDMI source.
This port has two functions selectable by the SETUP DIP-switches:
1. To send/receive RS-232 data over the HDBaseT link.
2. For FW Upgrade.
Connect to an external infrared emitter / sensor. The IR signal is passed over the
HDBaseT link.
Set the operation DIP-switches. Refer to Dip Switch Settings on page 3.
12V DC connector for powering the unit.
/
http://www.kramerav.com/downloads/EXT3-H-R
1 Bracket set
1 Power adapter and cord
P/N:
2900- 301805QS
4 Rubber feet
1 Quick start guide
Rev:
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kramer EXT3-H-T
Summary of Contents for Kramer EXT3-H-T
- Page 1 EXT3-H-T / EXT3-H-R Quick Start Guide This guide helps you install and use your EXT3-H-T / EXT3-H-R for the first time. Go to http://www.kramerav.com/downloads/EXT3-H-T http://www.kramerav.com/downloads/EXT3-H-R to download the latest user manual and check if firmware upgrades are available. can to go to website Step 1: Check what’s in the box...
- Page 2 12V DC connector for powering the unit. Step 4: Mount EXT3-H-T / EXT3-H-R Install EXT3-H-T / EXT3-H-R using one of the following methods: • Attach the rubber feet and place the unit on a flat surface. • Fasten a bracket (included) on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/EXT3-H-T...
- Page 3 Step 5: Connect inputs and outputs Always switch OFF the power on each device before connecting it to your EXT3-H-T / EXT3-H-R. For best results, we recommend that you always use the Kramer high-performance cables to connect AV equipment to EXT3-H-T / EXT3-H-R.
- Page 4 Step 7: Connect power Connect the 12V DC power adapters to EXT3-H-T and EXT3-H-R and plug in into the mains electricity. Safety Instructions (See www.kramerav.com for updated safety information) Caution: • There are no operator serviceable parts inside the unit.
