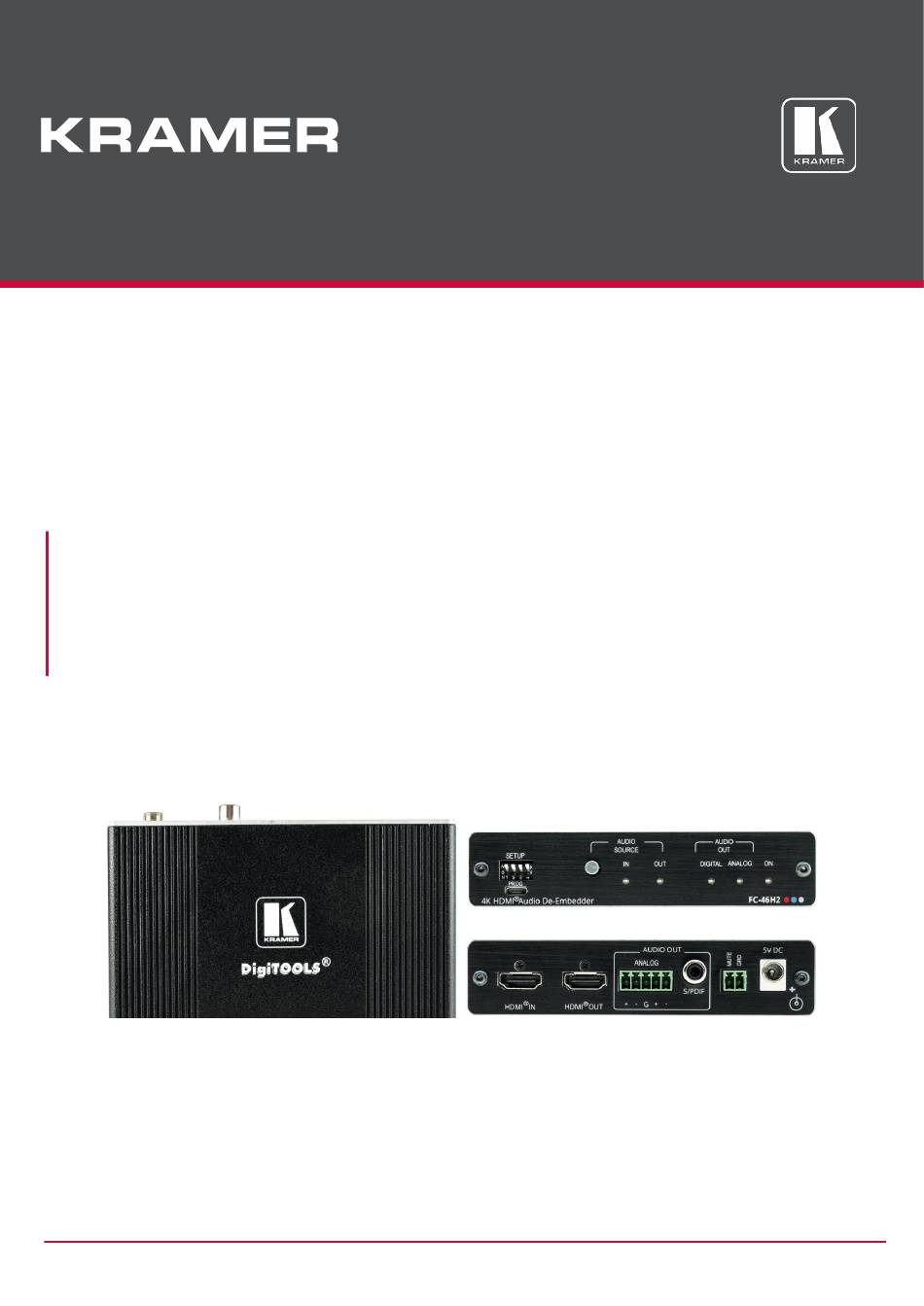

USER MANUAL MODEL: FC-46H2 4K HDMI Audio De-Embedder P/N: 2900-300873 Rev 1 www.KramerAV.com... -
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining FC-46H2 4K HDMI Audio De-Embedder Mounting FC-46H2 Connecting the FC-46H2 Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor Setting the DIP-Switches Operating and Controlling the FC-46H2 Using the Front Panel Buttons... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling. -
Page 5: Typical Applications
• Applications where an audio receiver is used for the HDMI soundtrack rather than playing it through the display itself. Controlling your FC-46H2 Control your FC-46H2 directly via the select audio source button. FC-46H2 – Introduction... -
Page 6: Defining Fc-46H2 4K Hdmi Audio De-Embedder
EDID Designer. K-Upload and EDID Designer can be downloaded from our web site at: www.kramerav.com/downloads/FC-46H2). To use the mini USB port, you need to download the Kramer USB driver from our web site at: www.kramerav.com/support/product_downloads.asp and install it. -
Page 7: Mounting Fc-46H2
Kramer Electronics Ltd. Mounting FC-46H2 This section provides instructions for mounting FC-46H2. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F). -
Page 8: Connecting The Fc-46H2
Kramer Electronics Ltd. Connecting the FC-46H2 Always switch off the power to each device before connecting it to your FC-46H2. After connecting your FC-46H2, connect its power and then switch on the power to each device. Figure 2: Connecting to the FC-46H2 Rear Panel To connect the FC-46H2 as illustrated in the example in Figure 2: 1. -
Page 9: Connecting The Output To A Balanced/Unbalanced Stereo Audio Acceptor
18dB Amplification Level Off (up) Off (up) On (down) On (down) The DIP-switch status is sampled when the device is reset. The unit must be powered off and on for the new settings to activate. FC-46H2 – Connecting the FC-46H2... -
Page 10: Operating And Controlling The Fc-46H2
When Dolby/DTS 5.1 is present, the analog output is muted so the ANALOG LED is off and the DIGITAL LED lights green. Connecting the Remote Control Switches Mute the analog output by connecting the MUTE pin to the GND. Figure 6: Muting the Analog Audio Output FC-46H2 – Operating and Controlling the FC-46H2... -
Page 11: Technical Specifications
EDID revision.... 1.3 Input signal type..Digital Color bit depth..Undefined Display type..... Monochrome/grayscale Screen size....520 x 320 mm (24.0 in) Power management..Standby, Suspend, Active off/sleep Extension blocs..1 (CEA-EXT) ------------------------- DDC/CI....Not supported Color characteristics FC-46H2 – Technical Specifications... - Page 12 640 x 480p at 60Hz - Default (4:3, 1:1) NB: NTSC refresh rate = (Hz*1000)/1001 CE vendor specific data (VSDB) IEEE registration number. 0x000C03 CEC physical address..1.1.0.0 Maximum TMDS clock..165MHz CE speaker allocation data FC-46H2 – Technical Specifications...
- Page 13 Front left/right center.. No Rear left/right center... No Rear LFE....No Report information Date generated... 28/02/2019 Software revision..2.70.0.989 Data source....Real-time 0x0071 Operating system..6.1.7601.2.Service Pack 1 Raw data 00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,01,01,01,01,FF,1C,01,03,80,34,20,78,E2,B3,25,AC,51,30,B4,26, 10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,02,3A,80,18,71,38,2D,40,58,2C, 45,00,A0,5A,00,00,00,1E,00,00,00,FF,00,32,39,35,2D,38,38,33,34,35,30,31,30,30,00,00,00,FC,00,46, 43,2D,34,36,48,32,0A,20,20,20,20,20,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,01,D0, 02,03,1B,C1,23,09,07,07,48,90,05,04,03,02,07,16,01,65,03,0C,00,11,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,76 FC-46H2 – Technical Specifications...
- Page 14 What Kramer Electronics Will Do Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem nec essary to satisfy a proper claim under this limited warranty: Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for th e necessary parts and labor to complete the repair and restore this product to its proper operating condition.
- Page 15 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
