7. Click SAVE.
8. Click RUN COMMAND to run the command test.
An action is entered and can be run.
Configuring Remote Buttons
Remotely operate, by I/O-connected remote buttons, configured control actions (see
(see Defining and Testing Commands via Action Editor
To Configure Remote Buttons:
1. In the Navigation pane, click Control Gateway. The Serial Ports tab in the Device
Settings page appears.
2. Select the IO tab. The IO tab appears.
3. Press to toggle Remote Button to On.
4. Configure defined control actions, for button on/off states, using the State ON, State
OFF drop-down boxes.
▪
Button default operation mode is latching. For momentary mode, check the
Momentary checkbox.
5. Click SAVE.
A control actions remote button can now be remotely operated.
Setting Relays
EXT3-21-XR-TR
configured as digital outputs on either controllers and auxiliary devices or control gateways.
To set a Relay action:
1. In the navigation pane, select Control Gateway.
EXT3-21-XR-TR – Using Embedded Web Pages

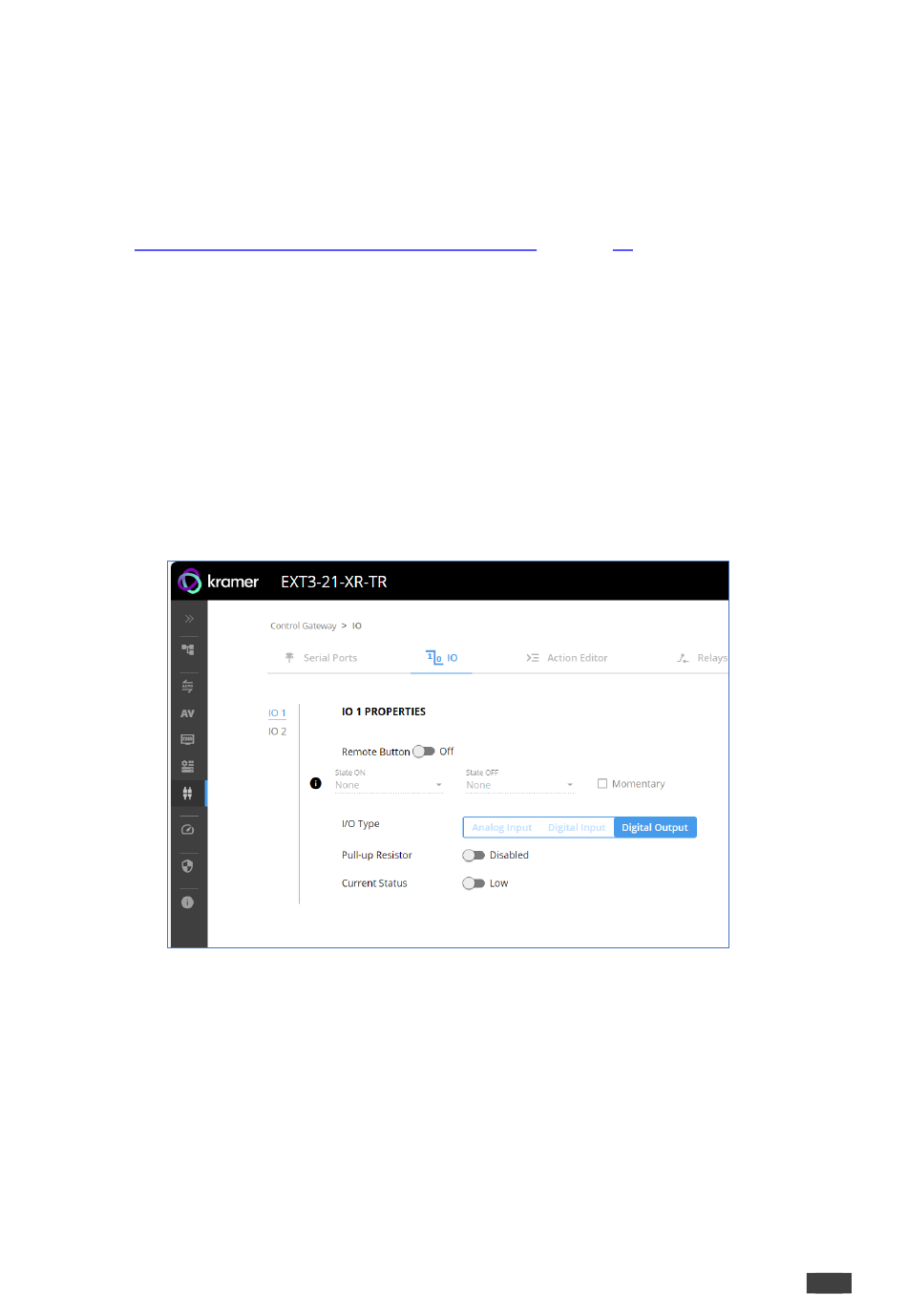

Figure 41: I/O ports settings tab – Configuring Remote Buttons
allows you to set the Relays, using the Relay tab to open or close a relay,
Kramer Electronics Ltd.
on page 48).
