Kramer EXT3-C-XR-TR User Manual page 31

To set audio and video signal:
1. Go to the Audio Video Settings page. The Audio Video Settings page appears.
Perform the following actions:
•
Label – Change the name of an input or the output as it appears on the Routing page
and EDID management page.
•
Color Depth Force 8Bits – Enable or Disable (default)
•
Force RGB– Enable or Disable (default).
•
Force LPCM 2CH – Enable or Disable (default)
•
Device Auto-Unmute on volume change – When enabled (default), changing the volume
will auto-unmute the audio output.
Audio and video settings are configured.
Managing EDID
EXT3-21-XR-TR
inputs.
EXT3-21-XR-TR – Using Embedded Web Pages

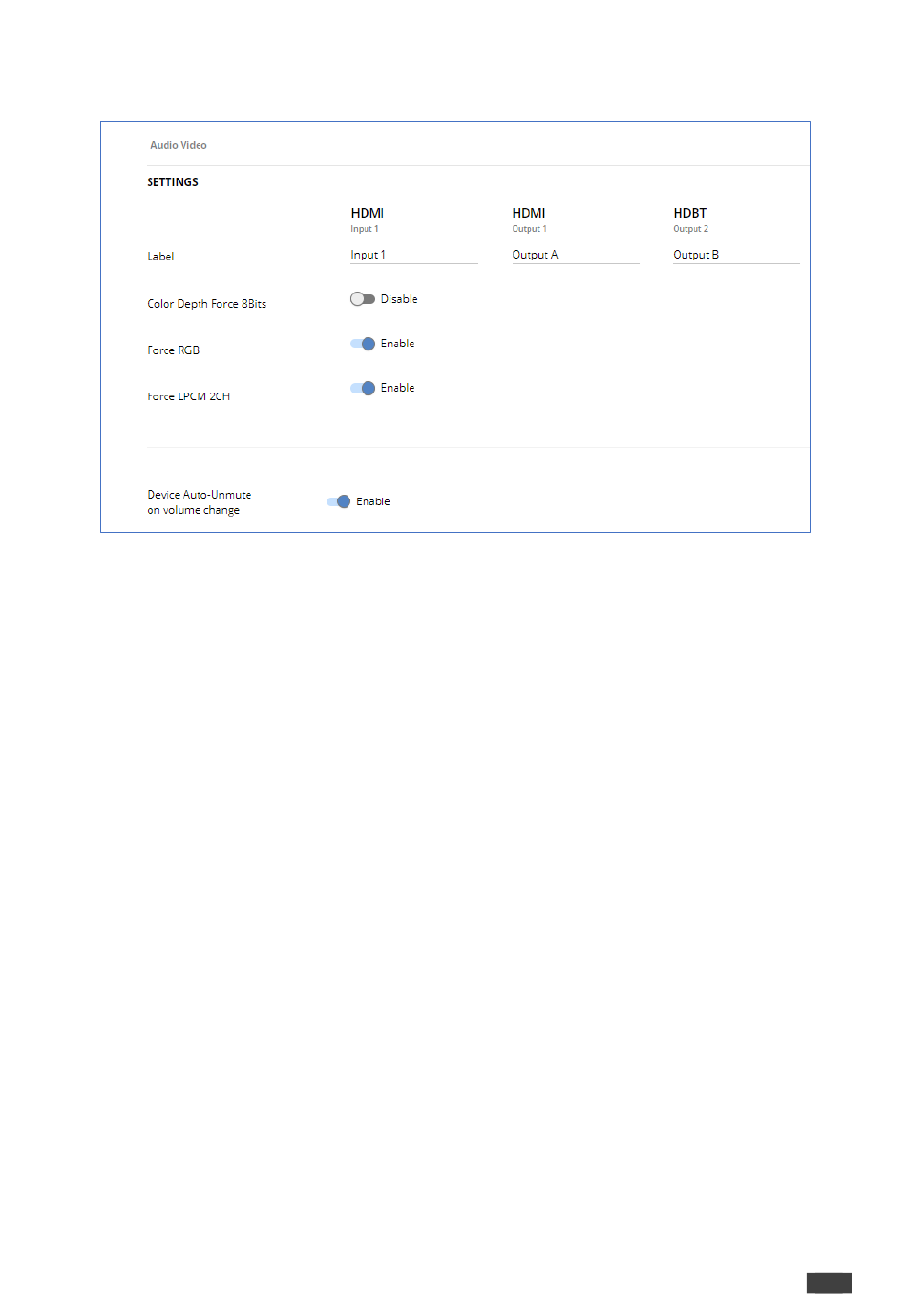

Figure 20: Audio Video Settings
enables you to copy an EDID from one of several different sources to the
Kramer Electronics Ltd.
29
