For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding default 192.168.1.39 fallback address) that is provided by your IT department.
7. Click OK.
8. Click Close.
Connecting Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of
or using a straight-through cable with RJ-45 connectors.
Configuring Ethernet Port
You can set the Ethernet parameters via the embedded Web pages.
Discovering and acquiring IP address
EXT3-21-XR-TR
by default. When no DHCP server is detected, a fallback static IP address of 192.168.1.39,
and 255.255.255.0 subnet mask (class C), is assigned until an IP address is acquired via the
DHCP server.
For more information, refer to Product Page Technical Note in
www.kramerav.com/product/EXT3-21-XR-TR.
EXT3-21-XR-TR – Operating and Controlling EXT3-21-XR-TR

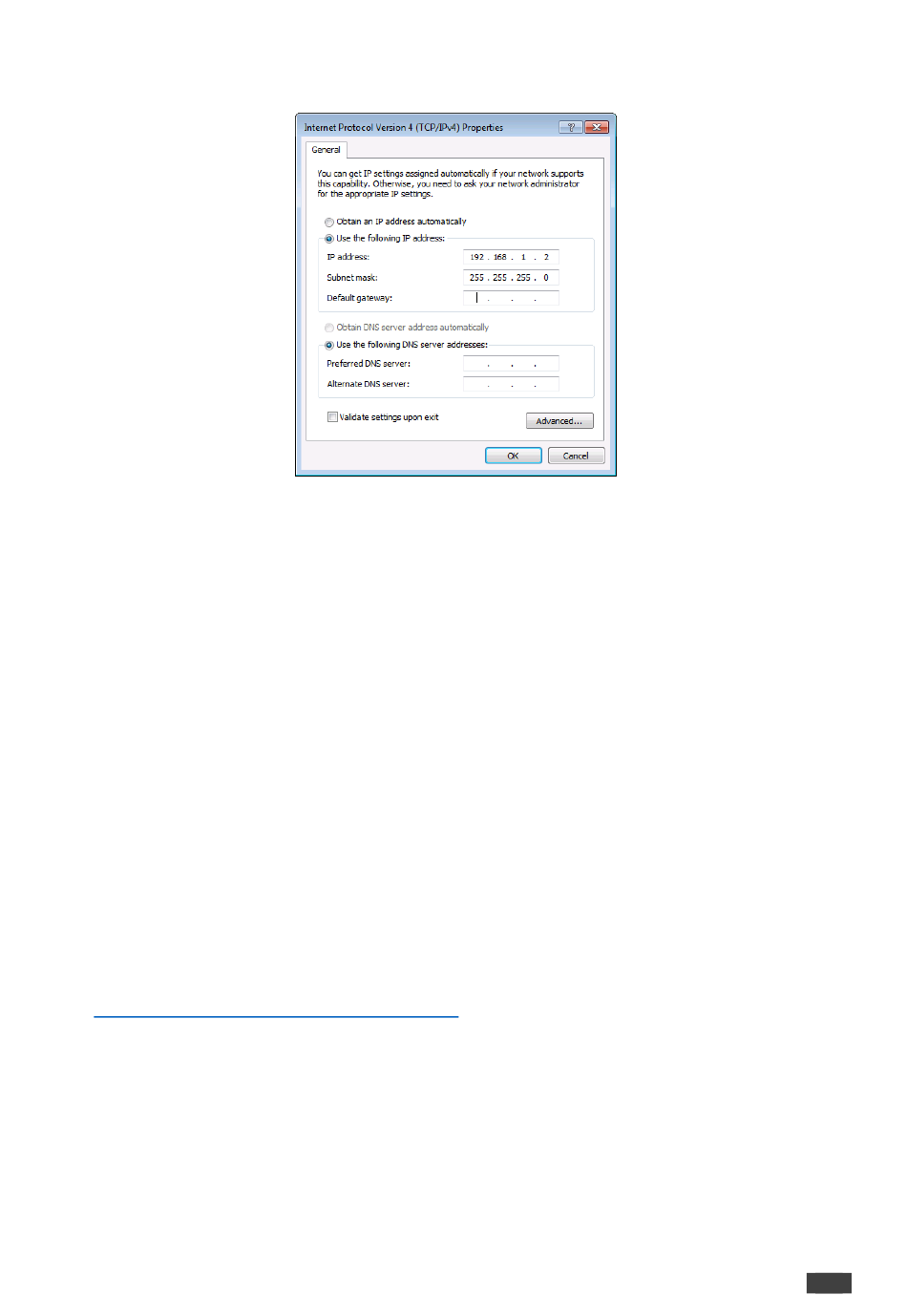

Figure 9: Internet Protocol Properties Window
EXT3-21-XR-TR
includes IP address auto-acquiring policy via LAN-connected DHCP server
to the Ethernet port on a network hub
