- Page 1 USER MANUAL MODEL: RS-232 Extender P/N: 2900-300284 Rev 1...
-
Page 2: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the RS-232 Extender Connecting the RS-232 Extender Technical Specifications 9-pin D-sub Pin Connections Figures F igure 1: RS-232 Extender Connection Diagram RS-232 Extender – Contents... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer RS-232 Extender , which is ideal for the following typical applications: •... -
Page 4: Getting Started
Achieving the Best Performance To achieve the best performance: • Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) •... -
Page 5: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country... -
Page 6: Overview

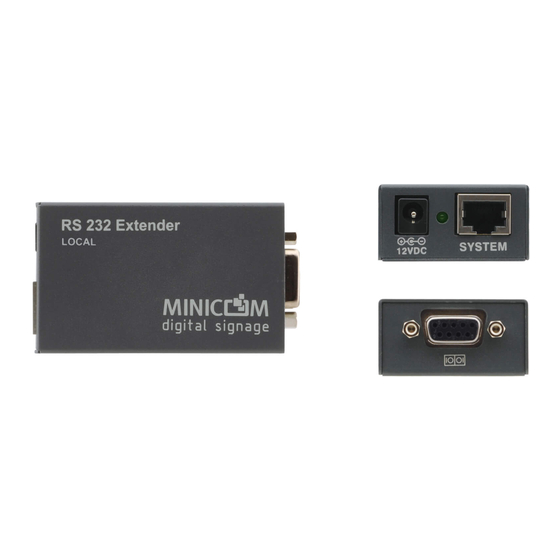

The RS-232 Extender system consists of: • 1 local unit • 1 remote unit • 1 power adapter This table defines the model: Kramer Model Kramer Part Full Description Number EXT-RS232 (OVS22013) 50-0001009011 Minicom RS232 EXTENDER RS-232 Extender - Overview... -
Page 7: Connecting The Rs-232 Extender
For distances of more than 330m (1000ft) connect a power adapter to both the local and remote RS- 232 extender units. Additional power adapters can be ordered from Kramer. Once connected, the RS-232 Extender system is ready to transmit RS-232 signals. -
Page 8: Technical Specifications
Technical Specifications INPUTS: RS-232 on a 9-pin D-sub F connector (local unit) CAT 5 on an RJ-45 connector (remote unit) OUTPUTS: CAT 5 on an RJ-45 connector (local unit) RS-232 on a 9-pin D-sub M connector (remote unit) SYSTEM CABLE: CAT 5 UTP/FTP 2x4x24AWG solid wire cable OPERATING TEMPERATURE: 0°... - Page 10 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. SAFETY WARNING Disconnect the unit from the power...
