WiFi Analysis

The WiFi analysis mode is primarily used to display the surrounding WiFi channels, their SSID, their designated
channel within the WiFi band used, and their relative amplitude level from the S7200 location. (See the
figuresError! Reference source not found. below for the graphical interface.)
The WiFi Analysis function has two display modes: graphical and list. The list mode shows the name, status,
channel, relative signal strength, MAC address, and encryption method of the SSID carriers detected.
Currently, the WiFi analysis function supports WLAN of 2.4G and 5G.

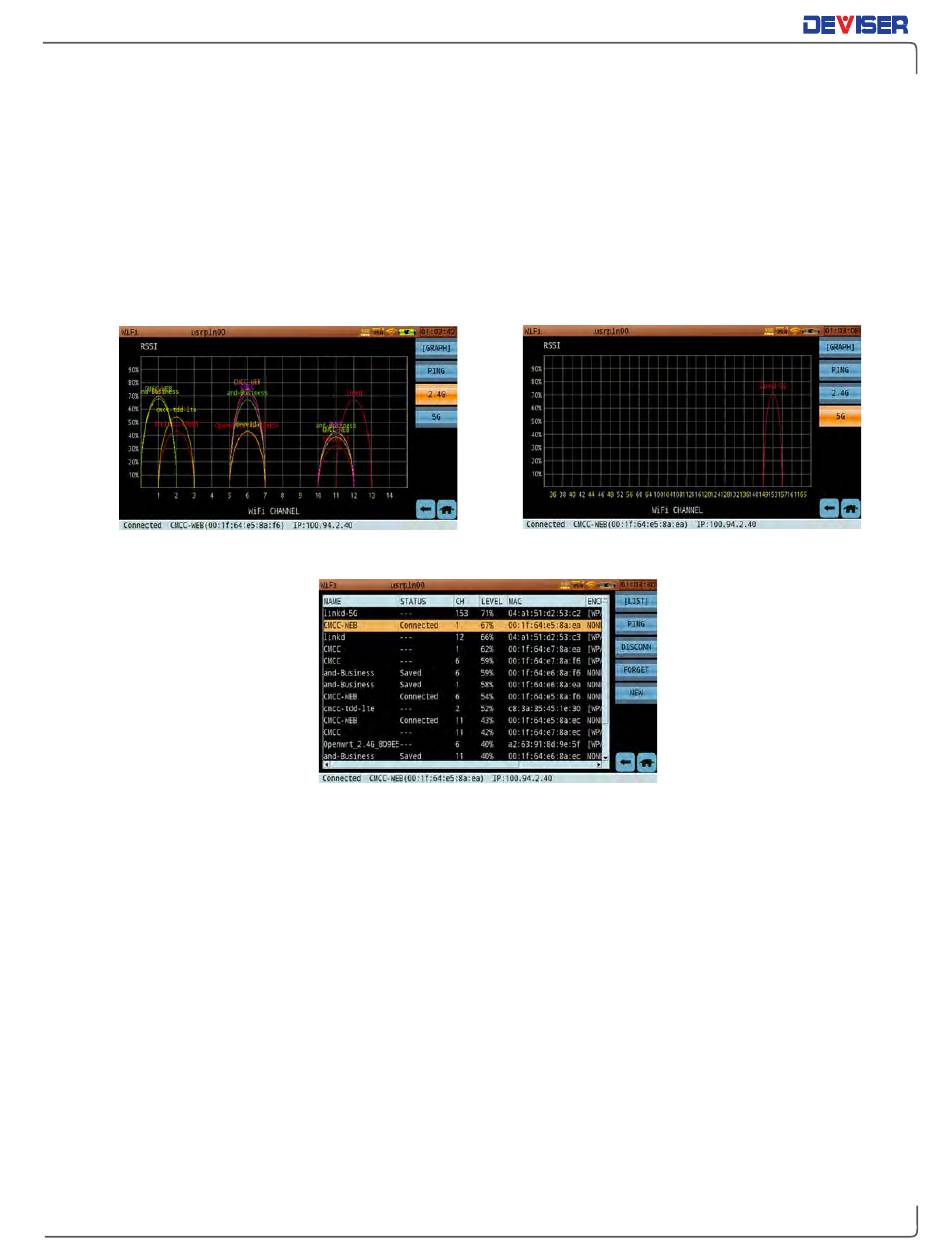

2.4GWiFi Channel ‐ Graphical Display 5G WiFi Channel ‐ Graphical Display
Wifi Channel – List Display
