13-5.2 Deleting Antennas
When you no longer need one or more antenna files, you can erase them from the S7200's internal hard
drive. Highlight a file in the left pane, and the Delete option will become available. (Note: "fm_factordef" is
the default antenna file, and cannot be deleted.)
When you press Delete, you will be prompted to confirm the deletion. Press OK to erase the data, or Cancel
to go back. You may also wish to export existing data to an external USB storage drive first; see Section 14-2
for details.
13-5.3 Antenna ON/OFF
In order to conduct measurements using a properly configured antenna, you will need to turn the antenna
function ON. Tap the submenu key repeatedly to toggle antenna function on/off.
Only one type of antenna can be used at a time; e.g., when viewing the FM antenna list, FM antennas can
be used. To change types, simply tap the FM key to swap to DAB or DTMB, then toggle function ON again.
When the current channel is the enabled antenna type, the
For example, when measuring an Analog FM channel while the FM antenna function is active,
the status bar. The measurement unit is the same as that for field strength. Test results will include the antenna
coefficient; see below.
13-5.4 Importing and Exporting Antenna Files
To export antenna (.DAT) files to a USB storage device, first connect the device to the S7200's USB port. The
USB icon will appear in the status bar. In the antenna settings menu, tap Export to open a new dialog.
On the left are the contents of the USB device, and on the right, the S7200 hard drive. Select/check files on
the right, then tap the <<< key in the middle to copy them to the USB device. (Importing is similar; select files
on the USB device (left), then tap >>> to copy them to the hard drive.) When finished, press the Back key.)
Copying files to USB will create a new folder called S7200_Antenna. FM files will go to the FmCoff subfolder,
DAB files will go to DABCoff, etc. (If these folders already exist, files will be copied to them as normal.)
icon will appear in the status bar.

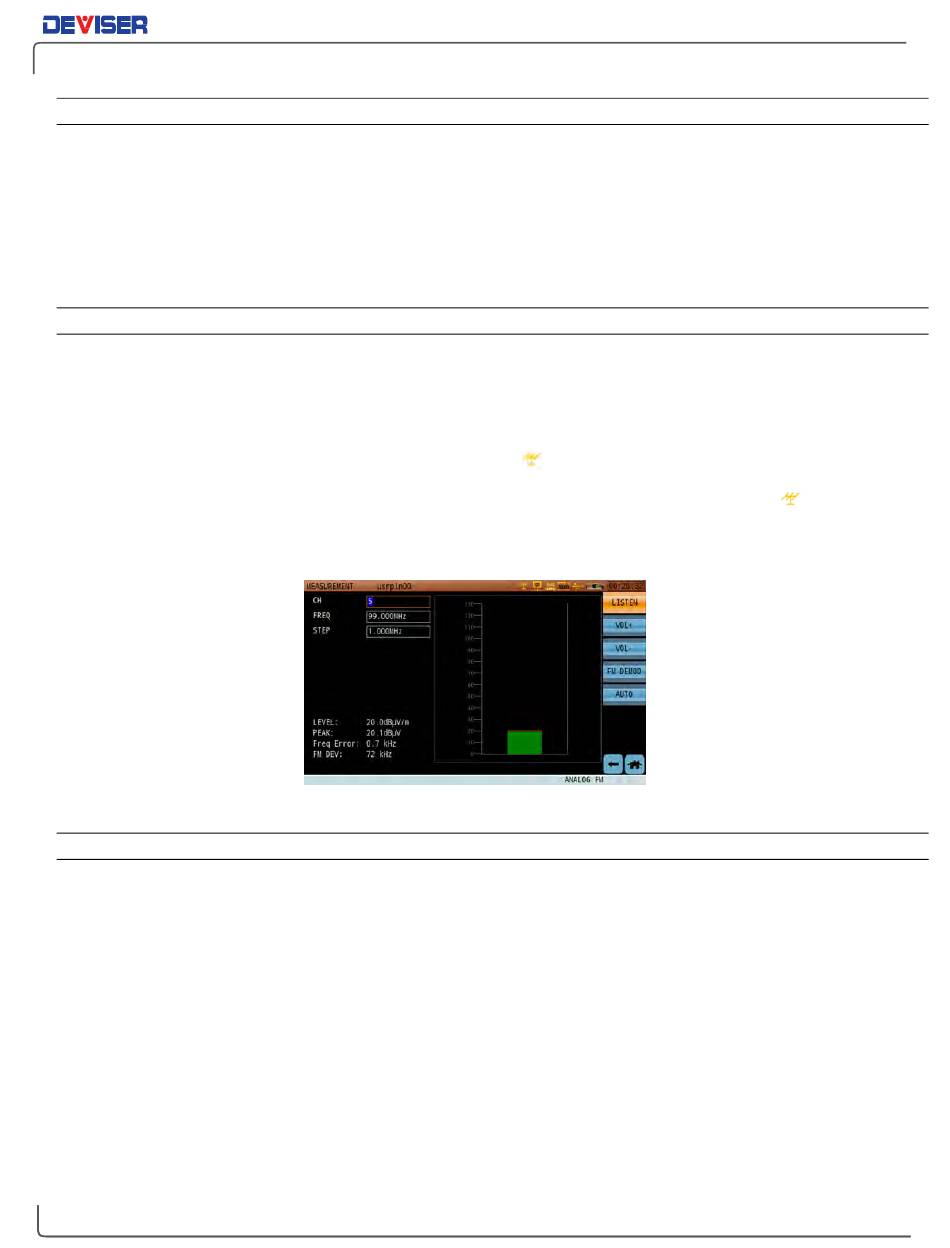

Successful antenna test
