Part II: Settings and Measurements
6-3

Constellation Diagram

In the constellation diagram, you can refresh and zoom the display. To zoom in, first tap Select repeatedly
to place the red border over a quadrant to view. After choosing the quadrant, tap Zoom IN. The selected
quadrant will expand to fully occupy the screen. (See below.)
Constellation – Quadrant Select
Use the arrow keys (or tap the screen) to move between parameters: channel, frequency and bandwidth.
When the cursor highlights a field, you can adjust the value with the arrow keys or input your desired value
with the keypad.
6-3.1 Settings
Button Operation
Auto: Auto search the current frequency.
Refresh: Clears accumulated data points and restarts measurement.
Select: Press repeatedly to select the desired quadrant for zooming.
Zoom In/Out: Zoom in on the selected quadrant. Press again to zoom out to the original display.
46

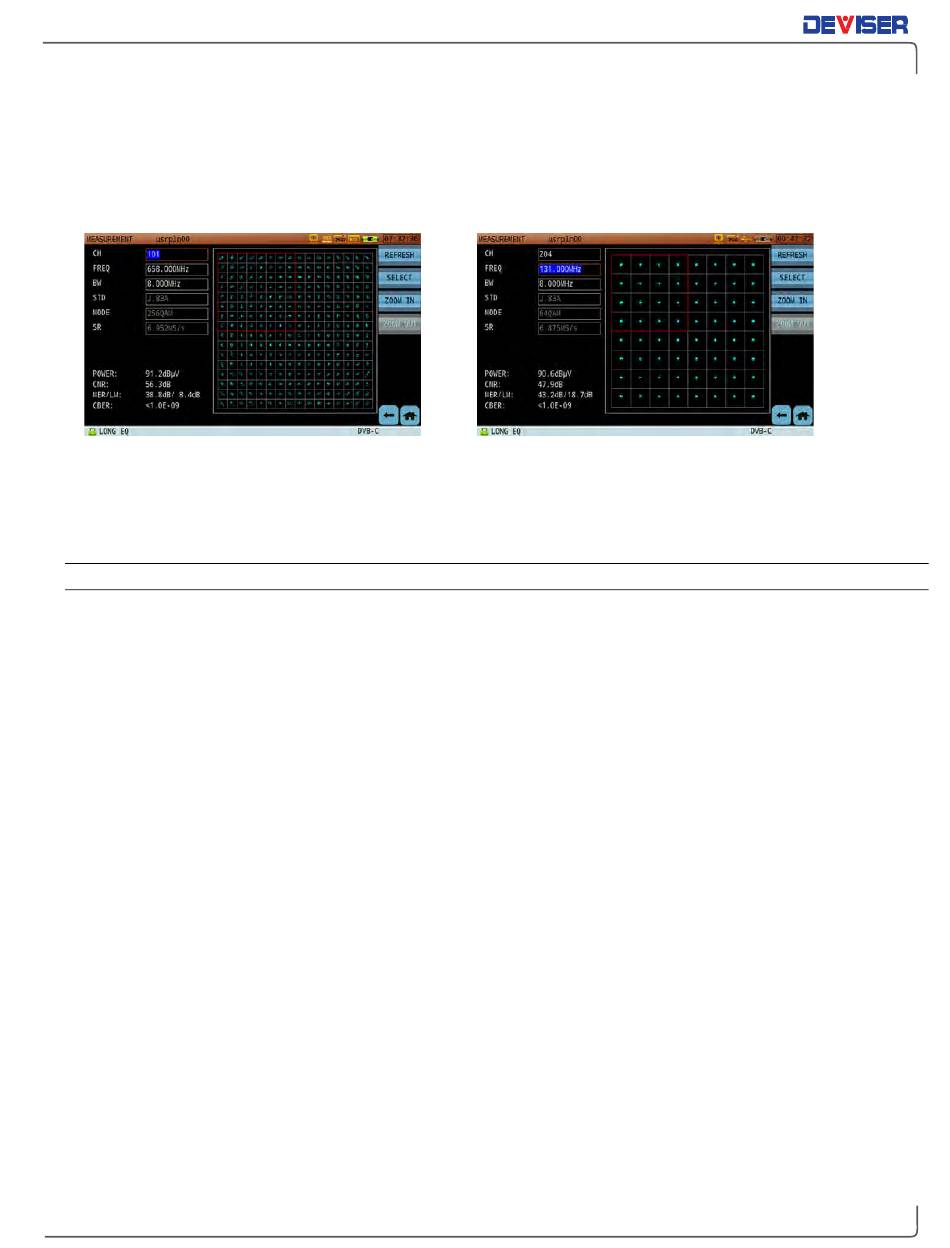

Constellation – Zoom In & Zoom Out
