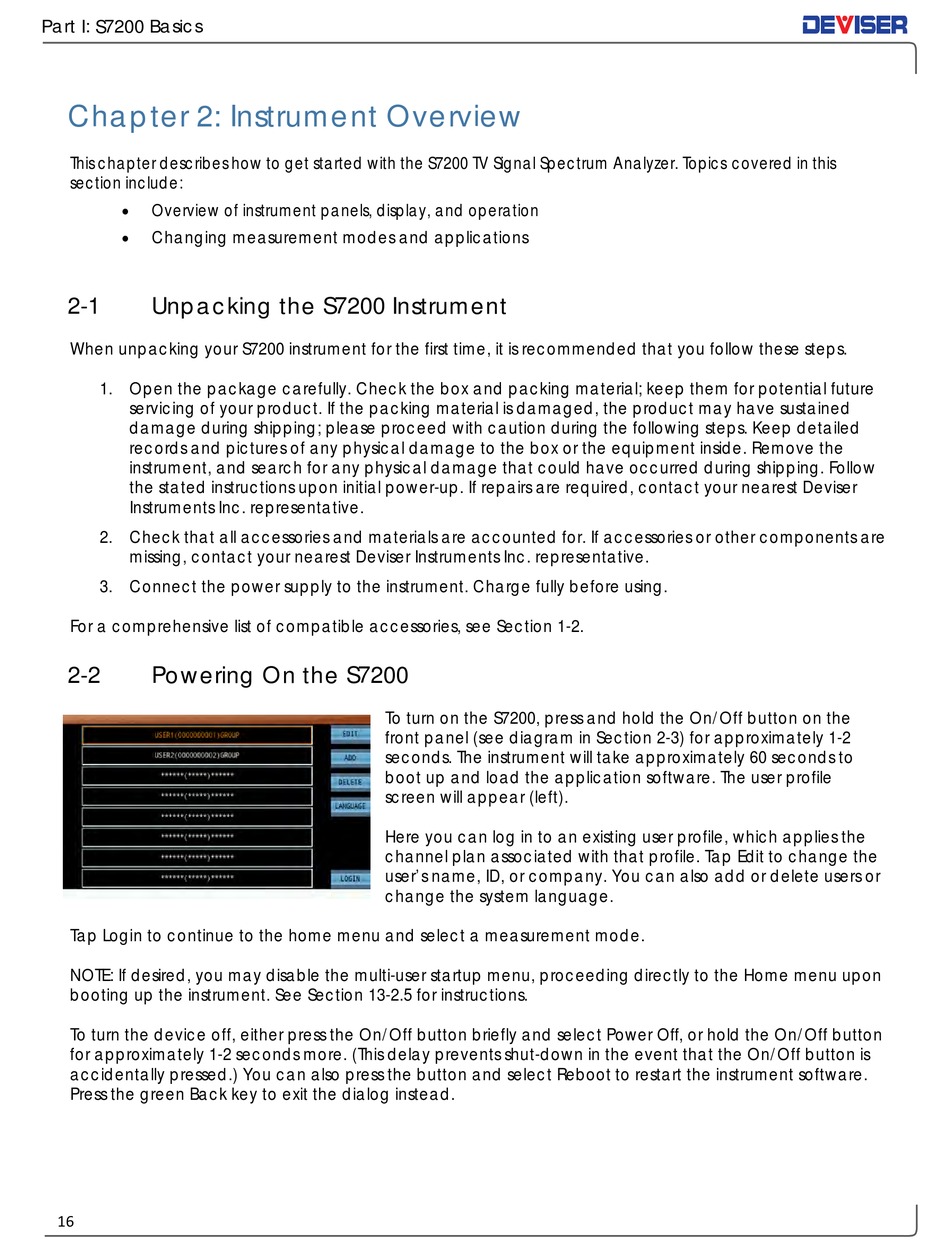

Part I: S7200 Basics

Chapter 2: Instrument Overview

This chapter describes how to get started with the S7200 TV Signal Spectrum Analyzer. Topics covered in this
section include:
 Overview of instrument panels, display, and operation
 Changing measurement modes and applications
2-1

Unpacking the S7200 Instrument

When unpacking your S7200 instrument for the first time, it is recommended that you follow these steps.
1. Open the package carefully. Check the box and packing material; keep them for potential future
servicing of your product. If the packing material is damaged, the product may have sustained
damage during shipping; please proceed with caution during the following steps. Keep detailed
records and pictures of any physical damage to the box or the equipment inside. Remove the
instrument, and search for any physical damage that could have occurred during shipping. Follow
the stated instructions upon initial power-up. If repairs are required, contact your nearest Deviser
Instruments Inc. representative.
2. Check that all accessories and materials are accounted for. If accessories or other components are
missing, contact your nearest Deviser Instruments Inc. representative.
3. Connect the power supply to the instrument. Charge fully before using.
For a comprehensive list of compatible accessories, see Section 1-2.
2-2

Powering On the S7200

Tap Login to continue to the home menu and select a measurement mode.
NOTE: If desired, you may disable the multi-user startup menu, proceeding directly to the Home menu upon
booting up the instrument. See Section 13-2.5 for instructions.
To turn the device off, either press the On/Off button briefly and select Power Off, or hold the On/Off button
for approximately 1-2 seconds more. (This delay prevents shut-down in the event that the On/Off button is
accidentally pressed.) You can also press the button and select Reboot to restart the instrument software.
Press the green Back key to exit the dialog instead.
16
To turn on the S7200, press and hold the On/Off button on the
front panel (see diagram in Section 2-3) for approximately 1-2
seconds. The instrument will take approximately 60 seconds to
boot up and load the application software. The user profile
screen will appear (left).
Here you can log in to an existing user profile, which applies the
channel plan associated with that profile. Tap Edit to change the
user's name, ID, or company. You can also add or delete users or
change the system language.
