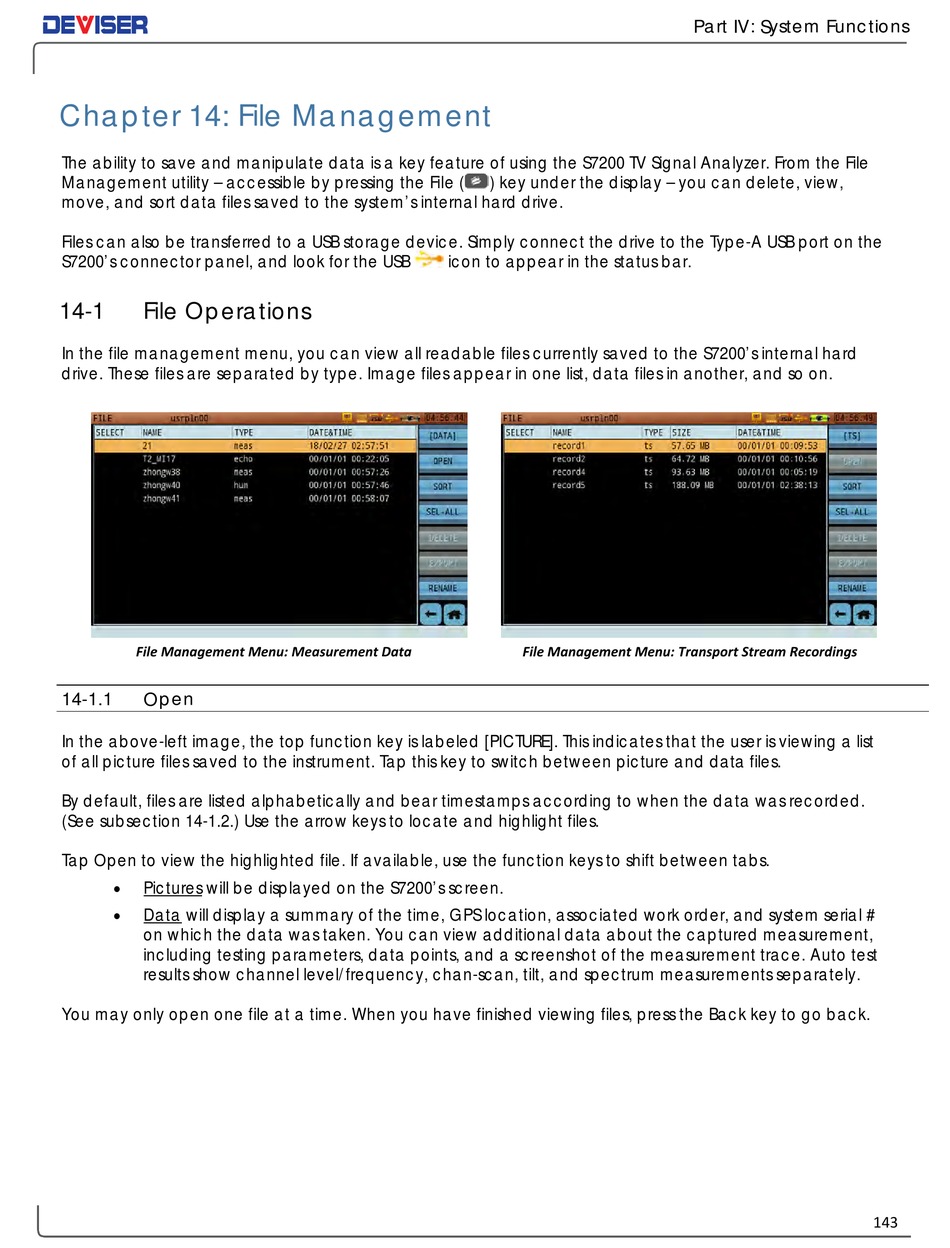

Chapter 14: File Management

The ability to save and manipulate data is a key feature of using the S7200 TV Signal Analyzer. From the File
Management utility – accessible by pressing the File (
move, and sort data files saved to the system's internal hard drive.
Files can also be transferred to a USB storage device. Simply connect the drive to the Type-A USB port on the
S7200's connector panel, and look for the USB
14-1

File Operations

In the file management menu, you can view all readable files currently saved to the S7200's internal hard
drive. These files are separated by type. Image files appear in one list, data files in another, and so on.
File Management Menu: Measurement Data
14-1.1 Open
In the above-left image, the top function key is labeled [PICTURE]. This indicates that the user is viewing a list
of all picture files saved to the instrument. Tap this key to switch between picture and data files.
By default, files are listed alphabetically and bear timestamps according to when the data was recorded.
(See subsection 14-1.2.) Use the arrow keys to locate and highlight files.
Tap Open to view the highlighted file. If available, use the function keys to shift between tabs.
 Pictures will be displayed on the S7200's screen.
 Data will display a summary of the time, GPS location, associated work order, and system serial #
on which the data was taken. You can view additional data about the captured measurement,
including testing parameters, data points, and a screenshot of the measurement trace. Auto test
results show channel level/frequency, chan-scan, tilt, and spectrum measurements separately.
You may only open one file at a time. When you have finished viewing files, press the Back key to go back.
) key under the display – you can delete, view,
icon to appear in the status bar.
File Management Menu: Transport Stream Recordings
Part IV: System Functions
143
