Part IV: System Functions

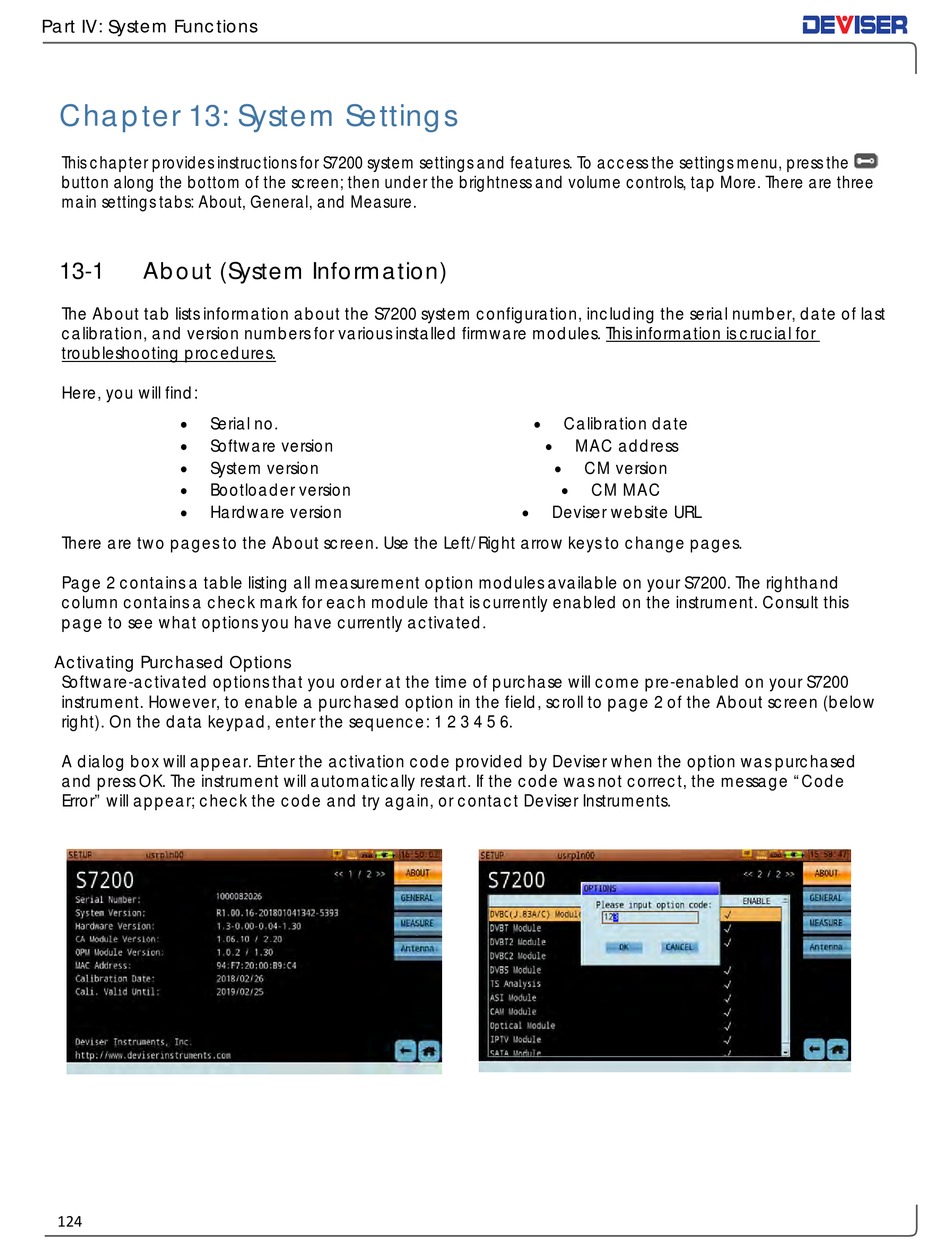

Chapter 13: System Settings

This chapter provides instructions for S7200 system settings and features. To access the settings menu, press the
button along the bottom of the screen; then under the brightness and volume controls, tap More. There are three
main settings tabs: About, General, and Measure.
13-1

About (System Information)

The About tab lists information about the S7200 system configuration, including the serial number, date of last
calibration, and version numbers for various installed firmware modules. This information is crucial for
troubleshooting procedures.
Here, you will find:
 Serial no.
 Software version
 System version
 Bootloader version
 Hardware version
There are two pages to the About screen. Use the Left/Right arrow keys to change pages.
Page 2 contains a table listing all measurement option modules available on your S7200. The righthand
column contains a check mark for each module that is currently enabled on the instrument. Consult this
page to see what options you have currently activated.
Activating Purchased Options
Software-activated options that you order at the time of purchase will come pre-enabled on your S7200
instrument. However, to enable a purchased option in the field, scroll to page 2 of the About screen (below
right). On the data keypad, enter the sequence: 1 2 3 4 5 6.
A dialog box will appear. Enter the activation code provided by Deviser when the option was purchased
and press OK. The instrument will automatically restart. If the code was not correct, the message "Code
Error" will appear; check the code and try again, or contact Deviser Instruments.
124
 Calibration date
 MAC address
 CM version
 CM MAC
 Deviser website URL
