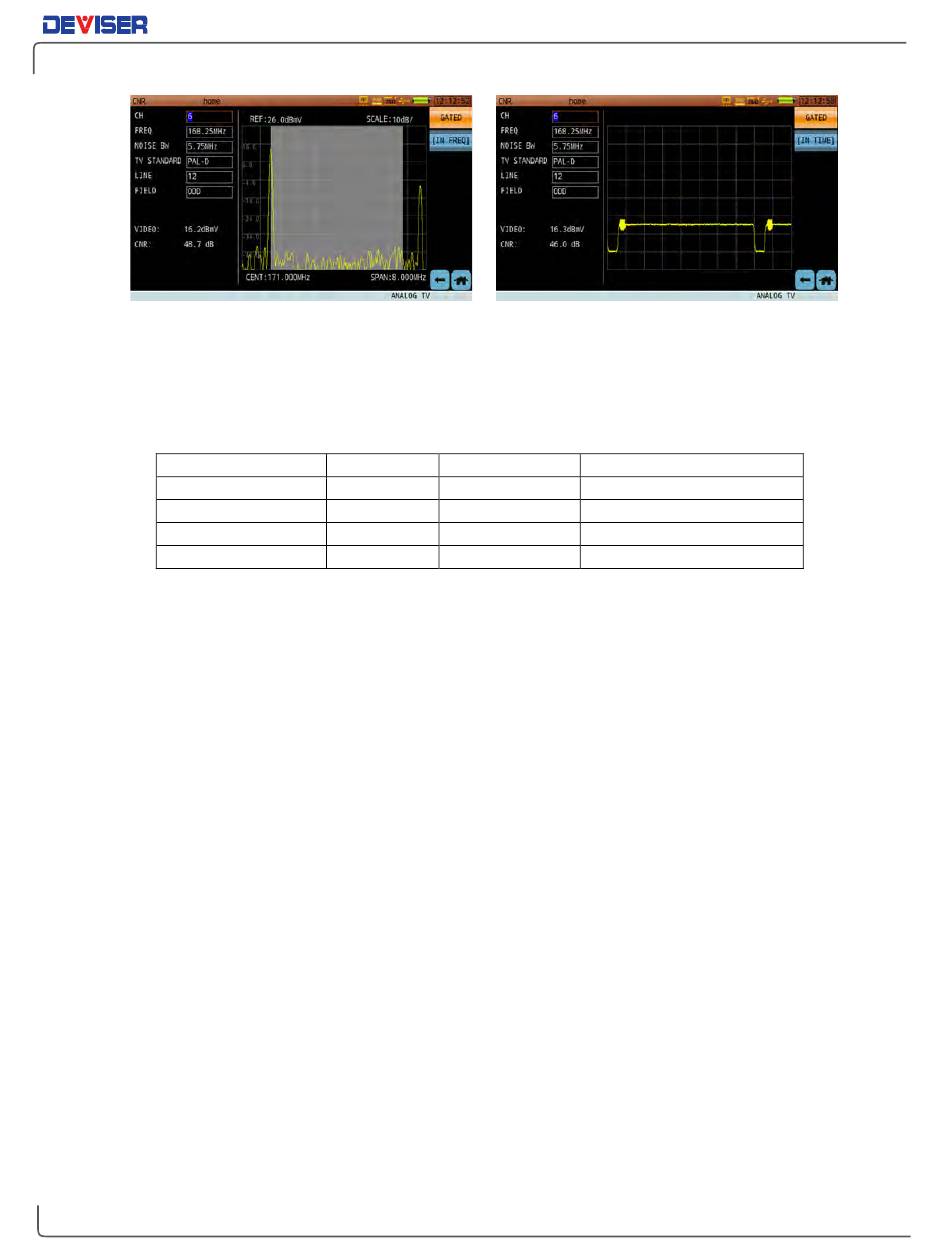

Gated CCN Measurement – Frequency‐Domain Waveform (left) and Time‐Domain Waveform (right)
To conduct a gated measurement, ensure that the video carrier frequency, noise bandwidth, TV signal
standard, odd/even field, and line number are set properly in the channel plan editor. (See Section 3-2.)
Then tap Gated to toggle it on.
CCN gated measurements support the following TV standards:
System & standard
NTSC-M
PAL-M
PAL-B, D, G, H, I, K
PAL-N
Per frame 525 lines system: Field 1 (odd field), line 1-263; Field 2 (even field), line2-262
Per frame 625 lines system: Field 1 (odd field), line 1- 313; Field 2 (even field), line2-312
Line/frame Field frequency
525 60Hz
525 60Hz
625 50Hz
625 50Hz
Part II: Settings and Measurements
Color encoding technique
NTSC
NTSC
PAL
PAL
