Instruction Manual
DS100 Interference and Direction Analyzer
Ver: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deviser DS100

Summary of Contents for Deviser DS100

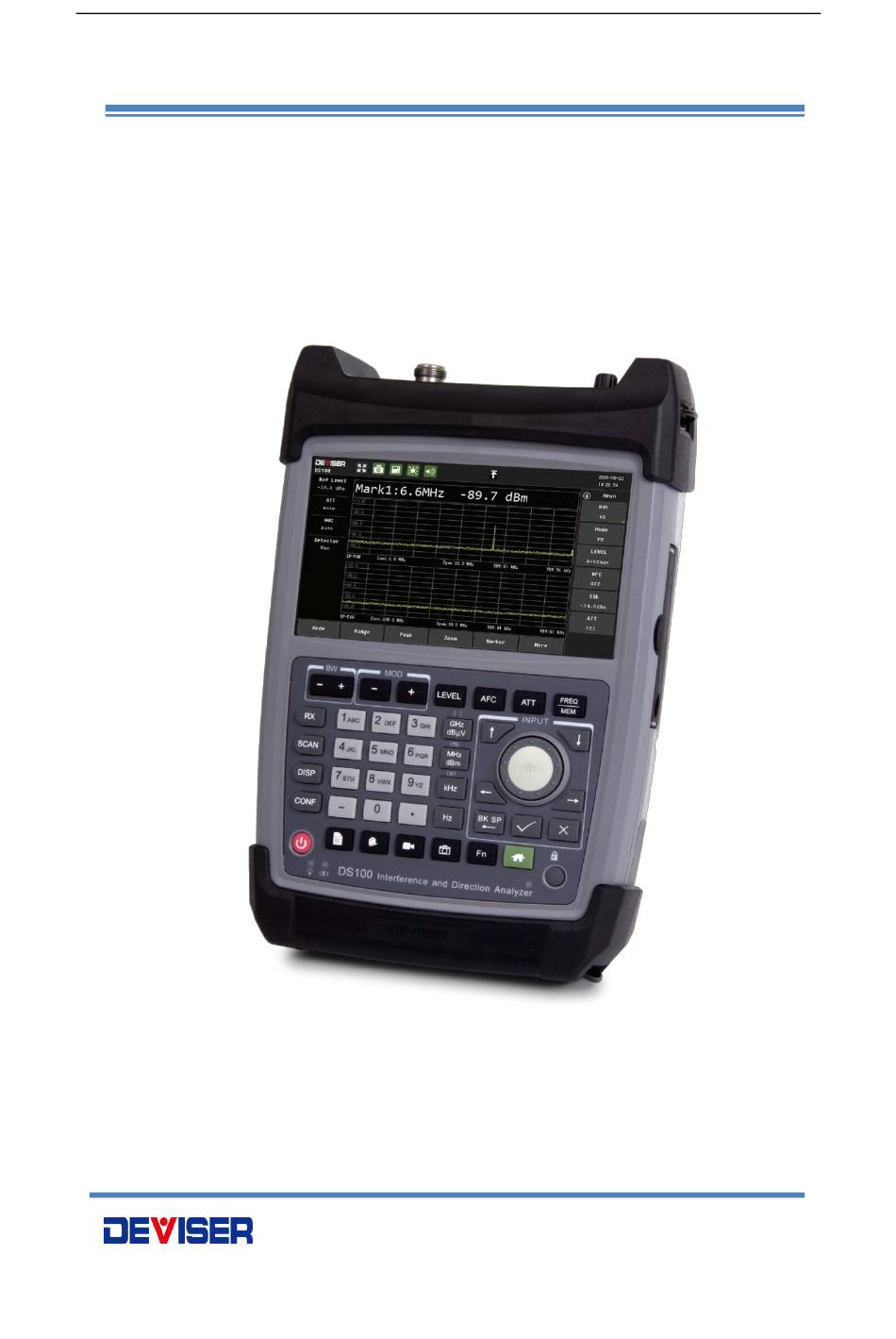

  • Page 1 Instruction Manual DS100 Interference and Direction Analyzer Ver: 1.0...
  • Page 2 Safety Requirement Safety Level This manual has the following conversions for presenting information. WARNING: A warning marker alerts you any harmful matters that users should pay attention to the operation method. Users must not do any operation or process before the condition of this marker is met, otherwise it might cause personal injury.
  • Page 3 Warranty This instrument is guaranteed for a period of 2 years since the date of shipment, you can extend the warranty for one year before maturity, the battery warranty for one year. Under warranty, any fault which is not caused by improper use will be repaired for free. Users must use and check the instrument according to the manual.
  • Page 4 Limitation The warranty is not applicable for the faults resulted by improper use or inadequate maintenance (including software and interfaces), and unauthorized open of the instrument. Within the 2 years warranty period, calibration, maintenance service and consultation shall be free. After the 2 years warranty period, you can extend the warranty for one year before maturity, to extend the warranty period of one year you need pay 16% of Sales price , fees for material and repair will be charged reasonably.
  • Page 5 All specifications and operations might change that we would not inform individually. For any other needs, please ask our company. Our company has all the copy rights. No copy, edition or translation are allowed without written approval. All rights reserved. Printed in CHINA.

  • Page 6: Table Of Contents

    DS100 Interference and Direction Analyzer User Manual Contents 1 INSTRUMENT OVERVIEW......................... 2 ABOUT INSTRUMENT........................2.1 I ............................. NTERFACE ..........................2.2 B UTTON ANEL 2.3 S ............................2.4 I ........................NTERACTIVE NTERFACE 3 MENU..............................3.1 RX............................... 3.2 SCAN............................3.3 DISP............................3.4 CONF............................

  • Page 7: Instrument Overview

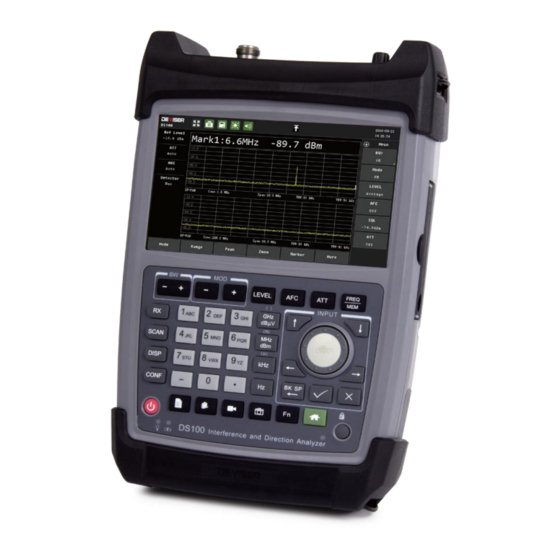

    DS100 Interference and Direction Analyzer User Manual 1 Instrument overview The DS100 Interference and Directional Analyzer is a handheld instrument designed for radio monitoring with spectrum analysis, signal demodulation, interference troubleshooting, and directional mode. With features such as rich functions, excellent performance and convenient operation, it is an ideal instrument for field signal detection and analysis.
  • Page 8 DS100 Interference and Direction Analyzer User Manual Right panel USB2.0 interface ② 100M LAN ③ 1000M LAN ④ USB3.0 interface ⑤ Power adapter interface Warning: only battery, adaptors and chargers from Deviser could be used. Fig.2-3 Right panel...

  • Page 9: Button Panel

    Function key②Digital key③Power button④Up and down key , wheel⑤Unit key⑥Lock key⑦Storage key Fig.2-4 Button panel 2.3 Soft Bag DS100 can be stored in the instrument package when idle, and accessories and adapters can be placed in the side pocket of the instrument package. Fig.2-5 Instrument package...

  • Page 10: Interactive Interface

    DS100 Interference and Direction Analyzer User Manual 2.4 Interactive Interface Parameter status display area②Markers and Lines status display area③Waveform and measurement results④Parameter setting area Fig.2-6 Interactive interface 3 Menu 3.1 RX To set frequency, gain control, squelch level and other basic parameters.

  • Page 11: Scan

    DS100 Interference and Direction Analyzer User Manual 3.2 SCAN To set scanning mode and other parameters ( In different scanning modes, the Settings of measurement parameters are also different ). In FFM mode:...
  • Page 12 DS100 Interference and Direction Analyzer User Manual In FSCAN mode ( Same as MSCAN, PSCAN, Digital Trunking, Digital Radio ) :...
  • Page 13 DS100 Interference and Direction Analyzer User Manual In HSCAN mode: In DPS mode:...

  • Page 14: Disp

    DS100 Interference and Direction Analyzer User Manual 3.3 DISP To set display mode, display range and so on.
  • Page 15 DS100 Interference and Direction Analyzer User Manual...

  • Page 16: Conf

    DS100 Interference and Direction Analyzer User Manual 3.4 CONF To set system parameters, view system information, etc.

  • Page 17: File

    DS100 Interference and Direction Analyzer User Manual 3.5 FILE...

  • Page 18: Function

    DS100 Interference and Direction Analyzer User Manual 4 Function 4.1 FFM Measure Mode Measure mode: FFM、FSCAN、MSCAN、PSCAN、HSCAN、DPS、Digital Trunki、Digital Radio、 SS Outdoor. Switch measure mode: press the panel key <SCAN>click the virtual key <Mode> Display Mode Display Mode: RX、Spectrum + RX、Spectrum、Waterfall + Spectrum、Waterfall (The double spectrum mode is introduced under the PSCAN measurement) Switch display mode: press the panel key <DISP>...
  • Page 19 DS100 Interference and Direction Analyzer User Manual Fig.4-1 FFM interface in Spectrum +RX mode Fig.4-2 RX mode Fig.4-3 Spectrum mode Waterfall mode: In the waterfall, different colors represent different signal amplitudes. The instrument can realize the three-dimensional comprehensive monitoring and recording of the signal frequency, time and amplitude, which is helpful to capture the short pulse signal of the order of us.
  • Page 20 DS100 Interference and Direction Analyzer User Manual to the threshold value set by the user and stored directly in the USB peripheral. It supports online playback and looks for interference information at a specified time. Fig.4-4 Waterfall mode Fig.4-5 Waterfall + Spectrum mode FFM: real-time display of field intensity information.

  • Page 21: Fscan

    DS100 Interference and Direction Analyzer User Manual Set the marks: press the panel key <DISP>, click the virtual key <Mark> to Enter the Mark menu. Click the key <M> or the key <D>, change the frequency value using the up and down keys or spinning wheel, and press Enter to confirm.

  • Page 22: Pscan

    <RUN+> to start scan, click <STOP> to end scanning. 4.5 HSCAN DS100 has perfect directional and positioning functions. Interference signals are directed using a matching directional antenna with GPS and an electronic compass. Based on the principle of three-point location, the interference source is located on the electronic map.
  • Page 23 DS100 Interference and Direction Analyzer User Manual the value of the test signal. GPS is used to automatically record the longitude and latitude of the current test point, and display the target position in real time in combination with the electronic map.

  • Page 24: Dps

    DS100. If the device intercepts the message, we can observe the content of the message in the interface.

  • Page 25: Digital Radio

    DS100 Interference and Direction Analyzer User Manual Fig.4-13 Digital Trunking(audio) Fig.4-14 Digital Trunking(SMS content) 4.8 Digital Radio In the Digital Radio, user can demodulate the modulated digital signal sent by the digital radio transmitter and display the demodulation result on the interface. At present, the instrument only supports demodulation LoRa mode.

  • Page 26: Ss Outdoor

    DS100 Interference and Direction Analyzer User Manual Fig.4-15 Digital Radio 4.9 SS Outdoor In SS Outdoor, the instrument provides outdoor road test for users. The user can import the map of the area to be tested through the PC, and after obtaining the GPS information, the user can conduct automatic dotting test by according to the "time"...

  • Page 27: File Manager

    DS100 Interference and Direction Analyzer User Manual Time interval: In Time mode, the instrument automatically marks the sample points on the map at the set time interval during the measurement. The setting range is from 100ms to 60sec. Distance interval: In distance mode, the instrument automatically marks the sample points on the map at the set distance interval during the measurement.
  • Page 28 DS100 Interference and Direction Analyzer User Manual Fig.5-1 File Manager Fig.5-2 Channel Table Fig.5-3 Edit Channel...

  • Page 29: Technical Parameters

    DS100 Interference and Direction Analyzer User Manual 6 Technical Parameters RF indicators Frequency Range 9kHz-6GHz Input Impedance 50Ω VSWR ≤3:1 Input Level Typical Max 0dBm Primary Function 9kHz-30MHz 30MHz low pass filter 20MHz-1140MHz Tunable bandpass filter 1140MHz-1900MHz 1140MHz high pass filter 1.8GHz-3GHz...
  • Page 30 DS100 Interference and Direction Analyzer User Manual IF indicators 13 filter (3dB bandwidth) IF demodulation 1.5 kHz, 2.4 kHz, 6 kHz, 9 kHz, 12kHz, 15 kHz, 30 kHz, 50 kHz, 120kHz, 150 bandwidth kHz, 250 kHz, 300 kHz, 500 kHz...
  • Page 31 DS100 Interference and Direction Analyzer User Manual Interface RF Input 9kHz-6GHz N type (50Ω) Maximum damage +20dBm/ 0VDC level External Reference Input 10MHz SMA (50Ω) Input amplitude 0dBm~+10dBm range IF Output 138.24MHz SMA (50Ω) IQ Output USB3.0 (bandwidth 20MHz) Stereo socket/100 Ω...
  • Page 32 DS100 Interference and Direction Analyzer User Manual Deviser (US) Deviser (China) Address: 780 Montague Expressway, Address: No.8, Haitai Chuangxin 3rd Road, Suite 701,San Jose, CA 95131, USA Hi-tech Industrial Development Area, Tel: +1 408 955 0938 Tianjin, China, 300392 http://www.deviserinstruments.com Tel: +86 2764 5003 ext.803...
