- Page 1 FC-1 High-Performance Portable Platform Operation Manual Ver 1.20 Deviser Part No.: FC-1 © Tianjin Deviser Electronics Instrument Co.， Ltd. All rights reserved. Printed in CHINA， January. 2014.
- Page 3 Conventions This manual has the following conventions for presenting information. WARNING: A warning alerts you to any condition that could cause personal injury. CAUTION: A caution alerts you to any condition that could cause a mechanical failure or potential loss of data. Make sure the AC power supply voltage meet the equipment requirements, otherwise it will cause an equipment failure.
- Page 4 (shocking, dropping, and etc.). C. Defects caused by unauthorized repair. D. Defects caused by the instrument worked beyond the required technology specification. Updates Updates, if any, can be downloaded from the Deviser website at:http://www.deviserinstruments.com...
-
Page 5: Table Of Contents
INDEX 1 Introduction ····································································· 1 2 Basic Feature ··································································· 2 2.1 Main Frame ································································· 2 2.2 Keyboard ···································································· 4 3 Function Description ························································· 6 3.1 Power On and Power Off ··············································· 6 3.1.1 Power On ····························································· 6 3.1.2 Power Off······························································ 6 3.2 Main Interface ······························································... - Page 6 3.3.9 Disk ···································································· 15 3.3.10 Update ······························································ 16 3.3.11 About ································································· 17 3.4 Soft Keyboard ····························································· 17 3.5 LCD Brightness Adjustment ··········································· 18 3.6 Charging ···································································· 19 4 Appendix ········································································ 20...
-
Page 7: Introduction

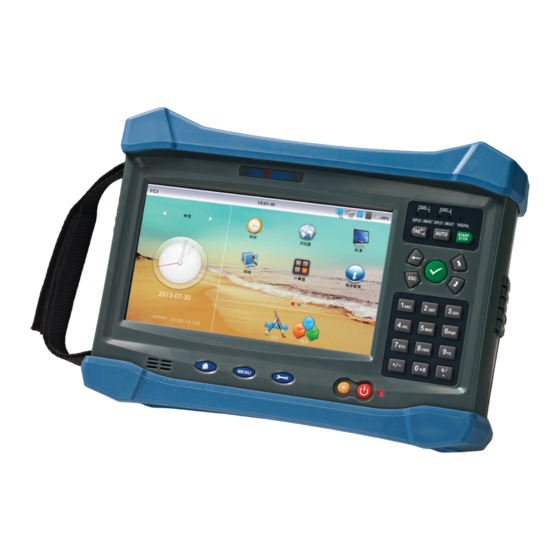

FC-1 High-Performance Portable Platform Operation Manual 1 Introduction FC-1 high-performance portable platform is developed by the Tianjin Deviser Electronics Instrument Co.， Ltd, China. With compact size, superior processing capabilities and highly intuitive interface, the field technicians can perform OTDR, Ethernet testing and other multiservice testing easily and efficiently. -
Page 8: Basic Feature
FC-1 High-Performance Portable Platform Operation Manual 2 Basic Feature 2.1 Main Frame Figure 2.1 Top Figure of Main Frame ①AC adapter jack ②Mini USB interface ③SD jack ④USB interface ⑤Communication RJ45 ⑥Function interface card interface... - Page 9 FC-1 High-Performance Portable Platform Operation Manual Figure 2.2 Front Figure of Main Frame ⑦7"LCD color touch screen ⑧Module function indicators ⑨Module function keys ⑩Function operation keys ⑪Number and character keys ⑫Buzzer ⑬File manage key ⑭Menu key ⑮Configuration key ⑯LCD brightness adjustment key ⑰Power key...
-
Page 10: Keyboard
FC-1 High-Performance Portable Platform Operation Manual Figure 2.3 Back Figure of Main Frame Back support ⑳Fan Battery compartment cover Battery compartment screw 2.2 Keyboard Power. LCD brightness adjustment. With keys, to switch the backlight of the LCD between bright and dim. - Page 11 FC-1 High-Performance Portable Platform Operation Manual Configuration. To achieve the soft keyboard to bring up and disappear. Menu. To switch between Chinese and English in main interface. File management. To manage the system files, including copy, paste, delete, rename and etc.
-
Page 12: Function Description
3.2 Main Interface After the FC-1 high-performance portable platform boot, enter the Chinese main interface. The main interface includes four parts: a status bar, an information panel, an application list area and a switch area. -
Page 13: Status Bar
FC-1 High-Performance Portable Platform Operation Manual Status Bar, Application Information List Area Panel Switch Area Figure 3.1 Main Interface 3.2.1 Status Bar The status bar displays the current network connection status, U disk and SD card status, time, battery power status, screenshot function button and soft keyboard button. - Page 14 FC-1 High-Performance Portable Platform Operation Manual Time Soft keyboard Connet Screenshot Battery Figure 3.2 Status Bar Network connet U disk SD card Table 3.1 Different Connection Status Icon Battery Power Status Icon Charging Depletion About 1/4 Power About 1/2 Power...
-
Page 15: Information Panel
FC-1 High-Performance Portable Platform Operation Manual 3.2.2 Information Panel The information panel can switch the system language (Chinese or English). It displays an analog clock, date and software version. Language Analog Clock Date Version Figure 3.3 Information Panel 3.2.3 Application List Area Application programs are arranged in the list area in two rows and three columns. -
Page 16: Switch Area
FC-1 High-Performance Portable Platform Operation Manual 3.2.4 Switch Area Press application icon to show platform application programs. Press model icon to show platform model programs. Press the application icon /model icon key to switch. Figure 3.5 Switch Area 3.3 Platform Application Programs 3.3.1 Time... -
Page 17: Web Browser
FC-1 High-Performance Portable Platform Operation Manual address, DNS IP address, and MAC address. Press ‘OK’ after the correct net configurations is set, shown as below: Figure 3.7 Net Setting 3.3.3 Web Browser In the first page of application list area, press the icon to enter web browser. -
Page 18: File Manager
FC-1 High-Performance Portable Platform Operation Manual Note: 1. Make sure the platform communication RJ45 interface is already connected to the network which can access the Internet via a twisted pair. 2. Make sure the network settings are correct, specific see “3.3.2 Net Setting”. - Page 19 FC-1 High-Performance Portable Platform Operation Manual can identify all model programs existing in the U disk and the SD card automatically, and displays them in a new pop-up list. Select the desired model program, and press the ‘Install’ button to complete to add or update the model program.
-
Page 20: Calibration
FC-1 High-Performance Portable Platform Operation Manual Note: 1. Make sure the U disk and SD card have stored the necessary model program, and the U disk and SD card can be accessed by the platform. 2. Do not remove the battery when you add or update model programs. -
Page 21: Calculator
FC-1 High-Performance Portable Platform Operation Manual Figure 3.11 Picture Viewer 3.3.8 Calculator In the second page of application list area, press the icon to open the calculator. Press botton or to exit the calculator, shown as below: Figure 3.12 Calculator 3.3.9 Disk... -
Page 22: Update
FC-1 High-Performance Portable Platform Operation Manual Figure 3.13 Disk Information 3.3.10 Update In the second page of the application list area, press the icon open the update dialog box. You can upgrade the firmware or platform program. Insert U disk or SD card which stores the upgrade program. -
Page 23: About
FC-1 High-Performance Portable Platform Operation Manual Note: 1. Make sure the U disk and SD card have stored the necessary update program, and the U disk and SD card can be accessed by the platform. 2. Do not remove the battery when you update the platform. -
Page 24: Lcd Brightness Adjustment
FC-1 High-Performance Portable Platform Operation Manual to English input method. ‘CN’ bottom becomes ‘EN’. Press again to switch to Chinese input method. ‘EN’ bottom becomes ‘CN’. Chinese input method is Pinyin input method. Press number and character keys from to select the word you need. Pressing... -
Page 25: Charging
FC-1 High-Performance Portable Platform Operation Manual 3.6 Charging When the battery is fully charged, the charge indicator light is green. When the battery power is low, the charge indicator light turns to red. You need to connect the AC adapter to the AC adapter jack on the platform. -
Page 26: Appendix
FC-1 High-Performance Portable Platform Operation Manual 4 Appendix Instrument Specifications Specifications Range Display 154.08mm*85.92mm（7inches）LCD Display 800*480 pixel Resolution Working -10 ~ +50 ℃ Temperature Storage -20 ~ +60 ℃ Temperature Weight 1820g Dimension 245mm*160mm*63mm AC Adapter DC：12.0V━5A Battery 7.4V，7500mAh Battery... - Page 27 FC-1 High-Performance Portable Platform Operation Manual Standard Accessories Standard Accessories Number Main Unit with Lithium-ion Battery AC Adapter Touch Screen Pen Operation Manual Portable Instrument Package SD Card Three-wire Power Cord (1.5m)
- Page 28 FC-1 High-Performance Portable Platform Operation Manual Tianjin Deviser Electronics Instrument Co., Ltd. Add: N0.8, Haitai Chuangxin 3 Road, Hi-Tech Industrial Development Area, Tianjin, China, 300392 Tel: +86-22-2764 5003 ext. 803 Fax: +86-22-2764 5002 http://www.deviserinstruments.com E-Mail: overseasbiz@deviser.com.cn...
