Transport Stream Analysis - Deviser S7200 User Manual

Part II: Settings and Measurements
6-12

Transport Stream Analysis

The TS analysis function supports DVB and ATSC standard real-time TS analysis. Measurements include Basic
Information, TR 101 290 Priority 1, 2 and 3 Tests, PID Viewer, PCR Analysis, Program List, and Data Capture.
Supported Standards:
MPEG-1 1) ISO-IEC-11172-2(Video)
2) ISO-IEC-11172-3(Audio)
MPEG-2 1) ISO/IEC 13818-1 (System)
2) ISO/IEC 13818-2 (Video)
3) ISO/IEC 13818-3 (Audio)
4) ISO/IEC 13818-6 (DSM-CC)
5) ISO/IEC 13818-7 (AAC)
MPEG-4 1) ISO/IEC 14496-2 (Video)
2) ISO/IEC 14496-3 (Audio)
H264 1) ITU-T H.264
2) ISO/IEC 14496-10 (AVC)
H256 1) ITU-T H.265
2) ISO/IEC 23008-2 (HEVC)

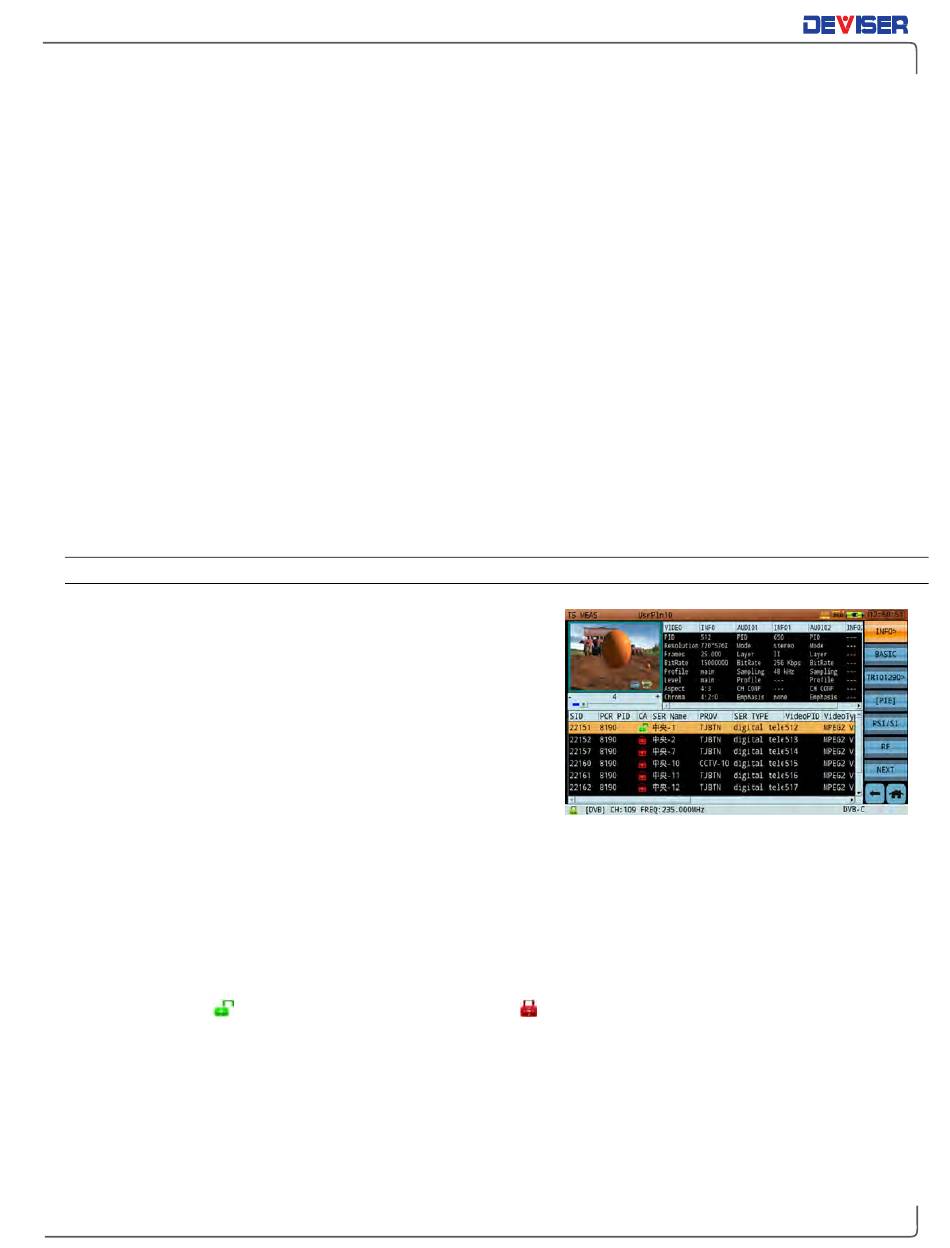

6-12.1 Real-Time Analysis
Real-time analysis parses the information from audio and video
ES. It supports MPEG-1/2/4, H.264, H.265, AVS/AVS+, and VC-1
video and MPEG-1/2/4, AAC/AAC+, and DRA audio. Up to two
programs' audio information can be displayed at once.
This function is separated into two panes. The top pane lists all
programs' SID, Service Name, CA, provider, service type, video
PID, video type, Audio1 PID, Audio2 PID, and audio type.
The bottom pane displays the video/audio information of a
selected program. Video information includes resolution, frame
rate, bit rate, profile, level, aspect ratio, and chroma type.
Audio information includes mode, layer, bit rate, sampling, profile, channel configuration, and emphasis.
These settings may differ according to the audio/video format (displayed to the bottom-left). If a setting is
not recognized or the program is encrypted, "---" will appear in the lower-right. If the program has no video
information, the message "No PAT" will appear.
SID: The program number, in decimal or hexadecimal.
Service Name: The service name of the program.
CA:
Provider: The program provider.
Service Type: A brief description of the service type of the program.
Video PID: The video PID of the selected program.
Video Type: The video type of the program.
Audio PID1/2: The audio PID of the selected programs.
Audio Type: The audio type of the program, e.g. MPEG2.
Program information is displayed at the bottom of the screen.
62
indicates an unencrypted program; indicates an encryption.
