Measurement Mode Selection

There are two ways to choose a measurement application. (To switch between TV, Satellite, IPTV, and
Optical applications pages, tap the respective key on the touchscreen.)
1. Tap the desired icon to launch the measurement.
2. Use the arrow keys) to move the yellow selector on the screen. Highlight the application you want and
press the Enter button to launch the measurement.
Optional measurement modes, not included in the S7200's standard measurements (see Section 2-6),
can be purchased initially, or at a later date after the unit has been delivered. A software keycode must
be entered to enable the desired function.
Once enabled, any optional modes and associated measurement applications will appear on the main
menu. Please consult Section 1-2 regarding available product measurement options.
For instructions on using individual measurement functions, see Part 2: Settings and Measurements.
2-9

About the Soft Carrying Case

The S7200 can be operated while in the soft carrying case. On the back of the case is a large storage
pouch for accessories and power supply.
To place the instrument into the soft carrying case:
1. Place the carrying case face-down on a stable surface, with the front panel fully closed and lying flat.
2. Open the zippered back of the case.
3. Insert the instrument face-down into the case. Take care that the connectors fit properly through the
openings in the case top and sides.
22

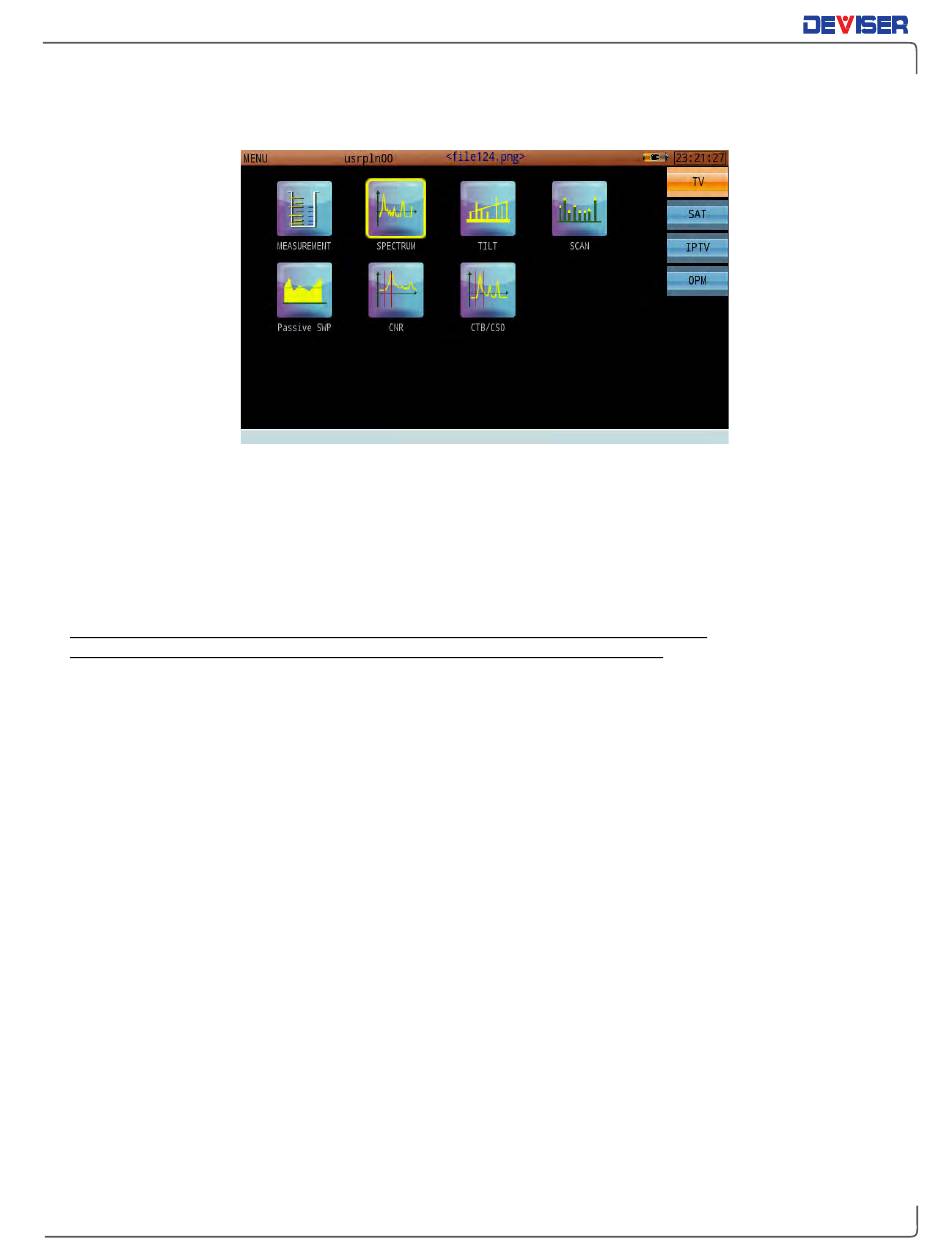

S7200 Main Menu
