Analog FM

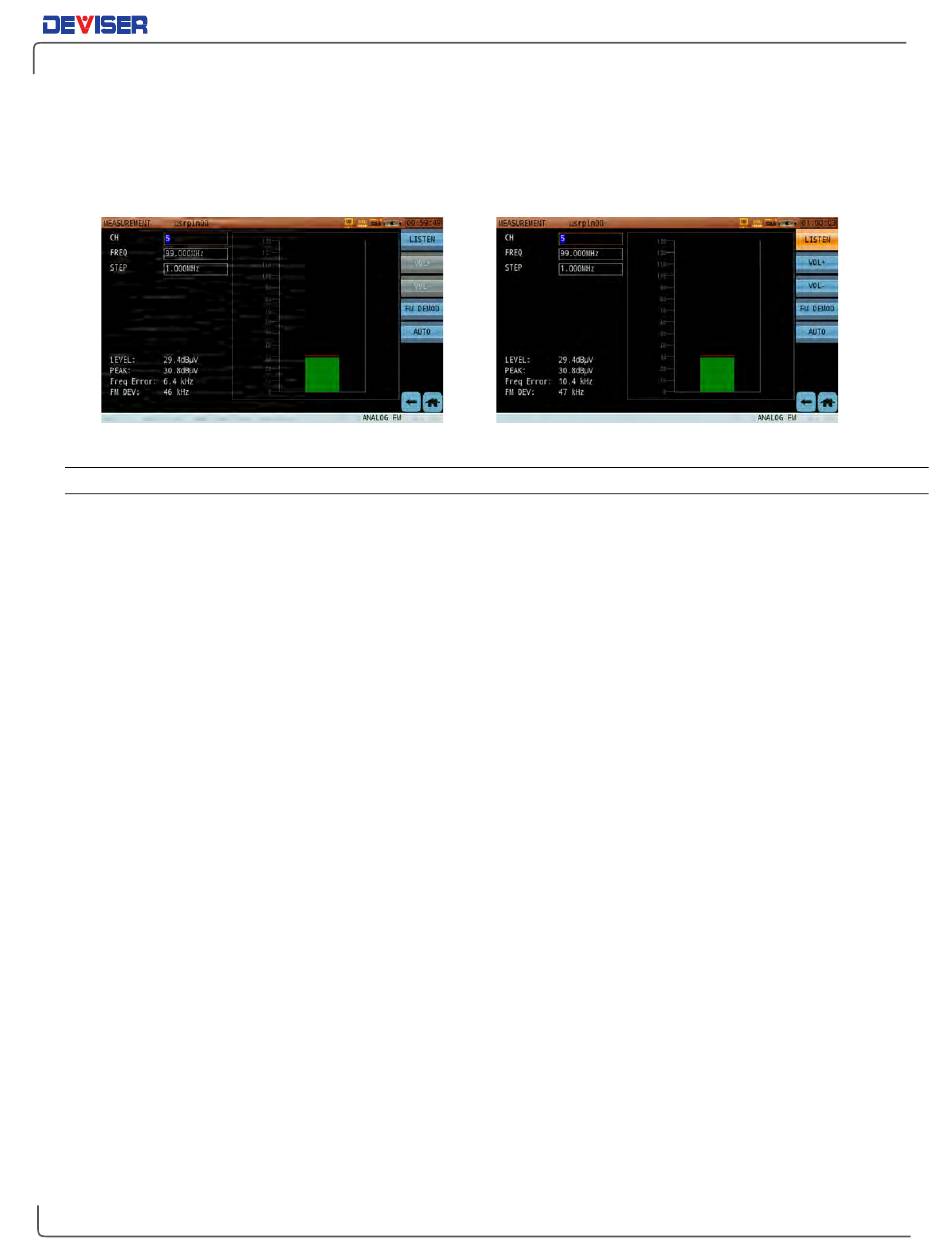

The Analog FM measurement screen, shown below, is primarily used to measure FM radio signal levels. You
can also listen to the audio output.
4-2.1
Settings
Channel:
The channel to measure. Select any active analog or digital channel in the active
channel plan.
Frequency:
Input range 4-1220 MHz;
Step:
Use the arrow keys to change the step size. Input range 1-1000 MHz.
Test Result:
The bar's length and color indicate the peak measured level of the carrier signal.
Button Operation
Listen:
Activates audio playback of the FM signal. Tap Vol+ or Vol- to adjust the volume.
Part II: Settings and Measurements
33
