13-4.3
SaTCR

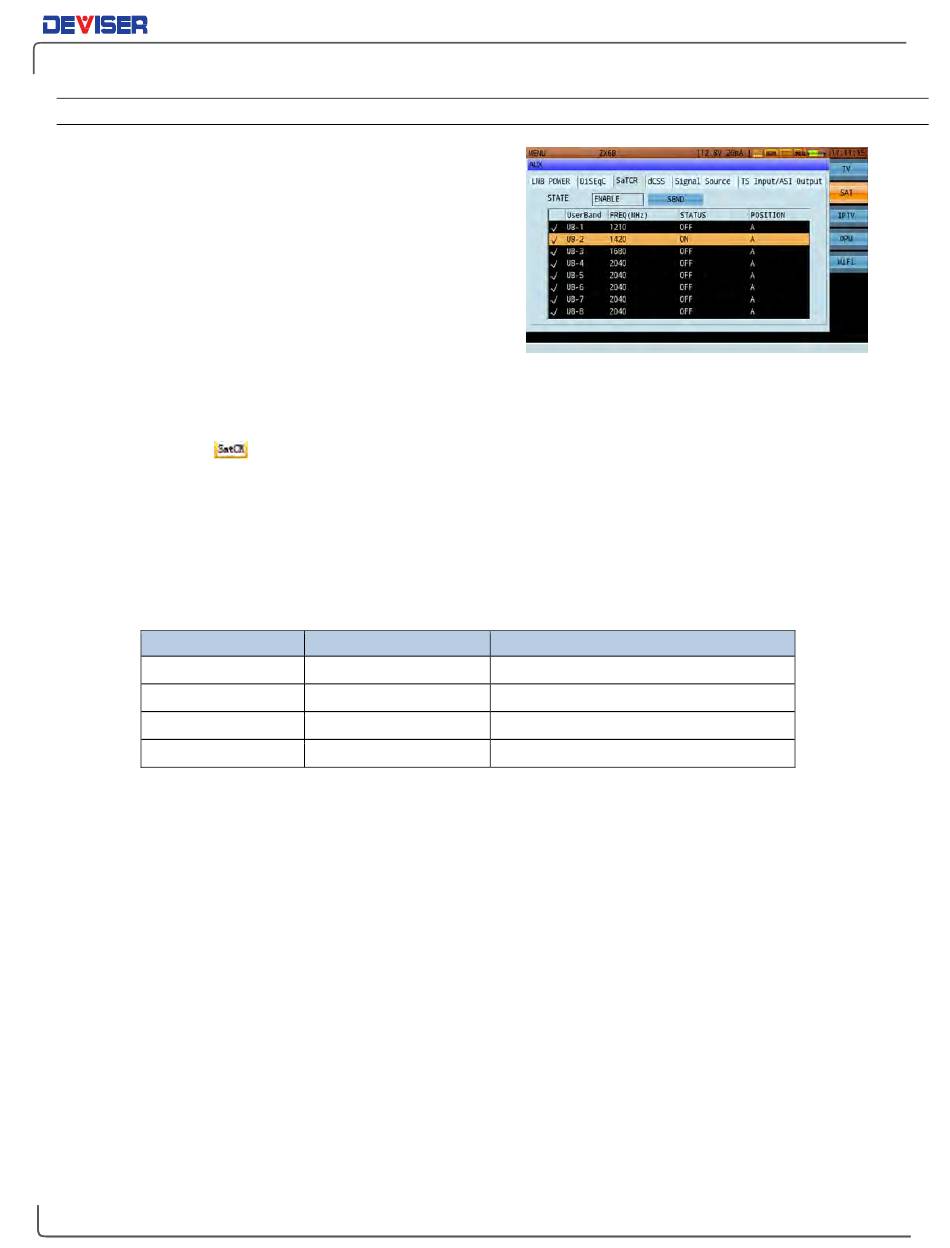

The SaTCR protocol is a DiSEqC protocol extension. This
protocol allows satellite STB (set-top box) to control an
external device connected via coaxial cable – in this case,
an LNB based on the SaTCR standard. (For background
information on SaTCR, see Section 9-3.)
The S7200 supports SatCR/SCR (EN50494) and dCSS/SCR2
(EN50607). SatCR and dCSS offer different equipment
control and configuration settings.
In the SaTCR menu, set the state to Enable to activate SaTCR function. Channels can be assigned a
frequency from 950 ~ 2150 MHz.
Once enabled, the
or position of the selected user channel, then tap Send to transmit the command. You can check/uncheck
each channel to determine whether or not it is tested. An unchecked channel will not be used.
See the table below.
(If an error occurs, make sure that "LNB Power" is set correctly; see subsection 13-4.1 above.)
Command
SaTCR status
Select
Status
Position
icon will appear in the status bar. Use the touchscreen to edit the frequency, status.
SaTCR Command Settings
Parameter
Enable/Disable
On/Off
A/B
Description
Enable/disable SaTCR function.
Check/uncheck highlighted channel
Sets highlighted channel status
Switch SaTCR LNB
Part IV: System Functions
135
