3-2

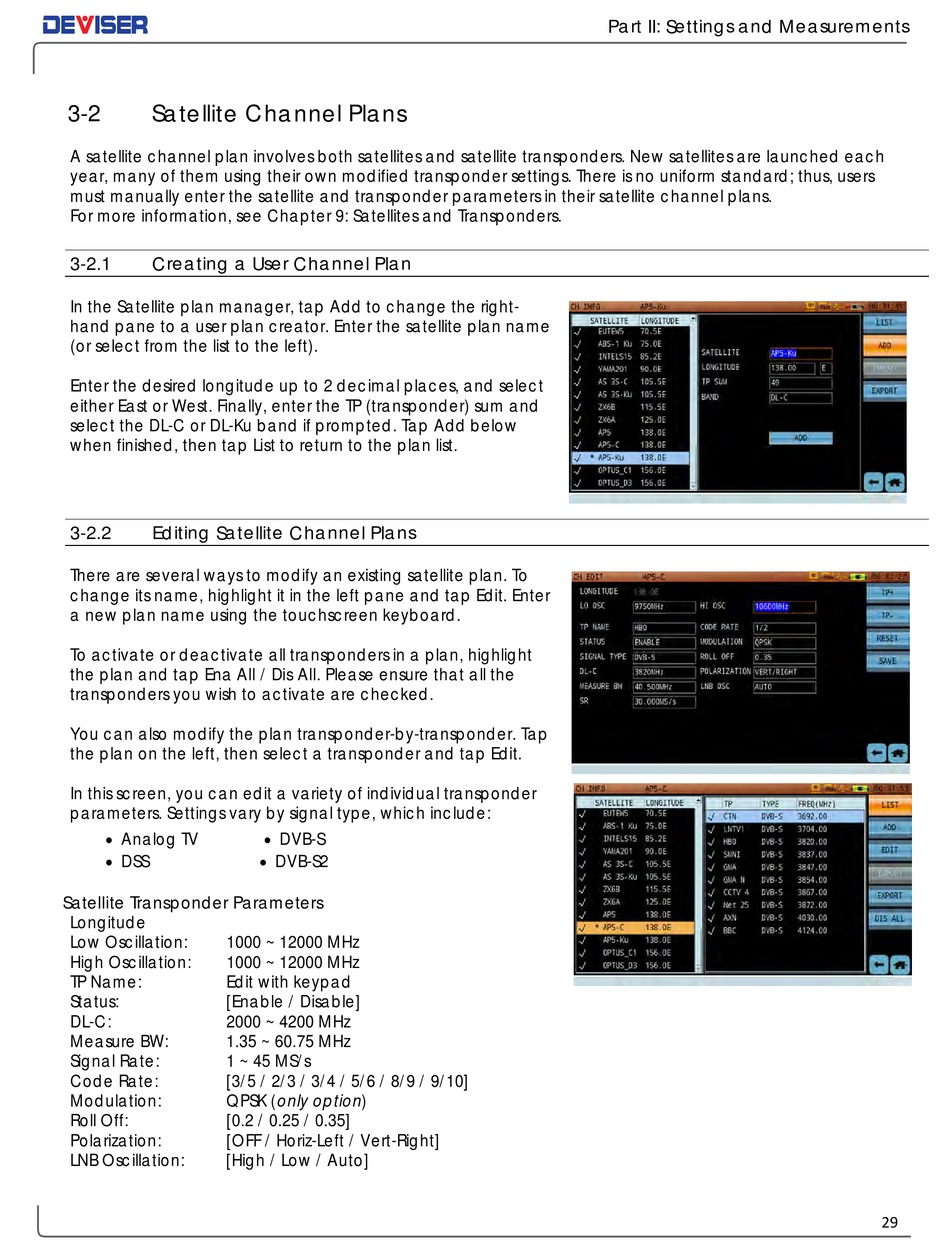

Satellite Channel Plans

A satellite channel plan involves both satellites and satellite transponders. New satellites are launched each
year, many of them using their own modified transponder settings. There is no uniform standard; thus, users
must manually enter the satellite and transponder parameters in their satellite channel plans.
For more information, see Chapter 9: Satellites and Transponders.
3-2.1 Creating a User Channel Plan
In the Satellite plan manager, tap Add to change the right-
hand pane to a user plan creator. Enter the satellite plan name
(or select from the list to the left).
Enter the desired longitude up to 2 decimal places, and select
either East or West. Finally, enter the TP (transponder) sum and
select the DL-C or DL-Ku band if prompted. Tap Add below
when finished, then tap List to return to the plan list.
3-2.2 Editing Satellite Channel Plans
There are several ways to modify an existing satellite plan. To
change its name, highlight it in the left pane and tap Edit. Enter
a new plan name using the touchscreen keyboard.
To activate or deactivate all transponders in a plan, highlight
the plan and tap Ena All / Dis All. Please ensure that all the
transponders you wish to activate are checked.
You can also modify the plan transponder-by-transponder. Tap
the plan on the left, then select a transponder and tap Edit.
In this screen, you can edit a variety of individual transponder
parameters. Settings vary by signal type, which include:
 Analog TV
 DSS
Satellite Transponder Parameters
Longitude
Low Oscillation: 1000 ~ 12000 MHz
High Oscillation: 1000 ~ 12000 MHz
TP Name: Edit with keypad
Status: [Enable / Disable]
DL-C: 2000 ~ 4200 MHz
Measure BW: 1.35 ~ 60.75 MHz
Signal Rate: 1 ~ 45 MS/s
Code Rate: [3/5 / 2/3 / 3/4 / 5/6 / 8/9 / 9/10]
Modulation: QPSK (only option)
Roll Off: [0.2 / 0.25 / 0.35]
Polarization: [OFF / Horiz-Left / Vert-Right]
LNB Oscillation: [High / Low / Auto]
 DVB-S
 DVB-S2
